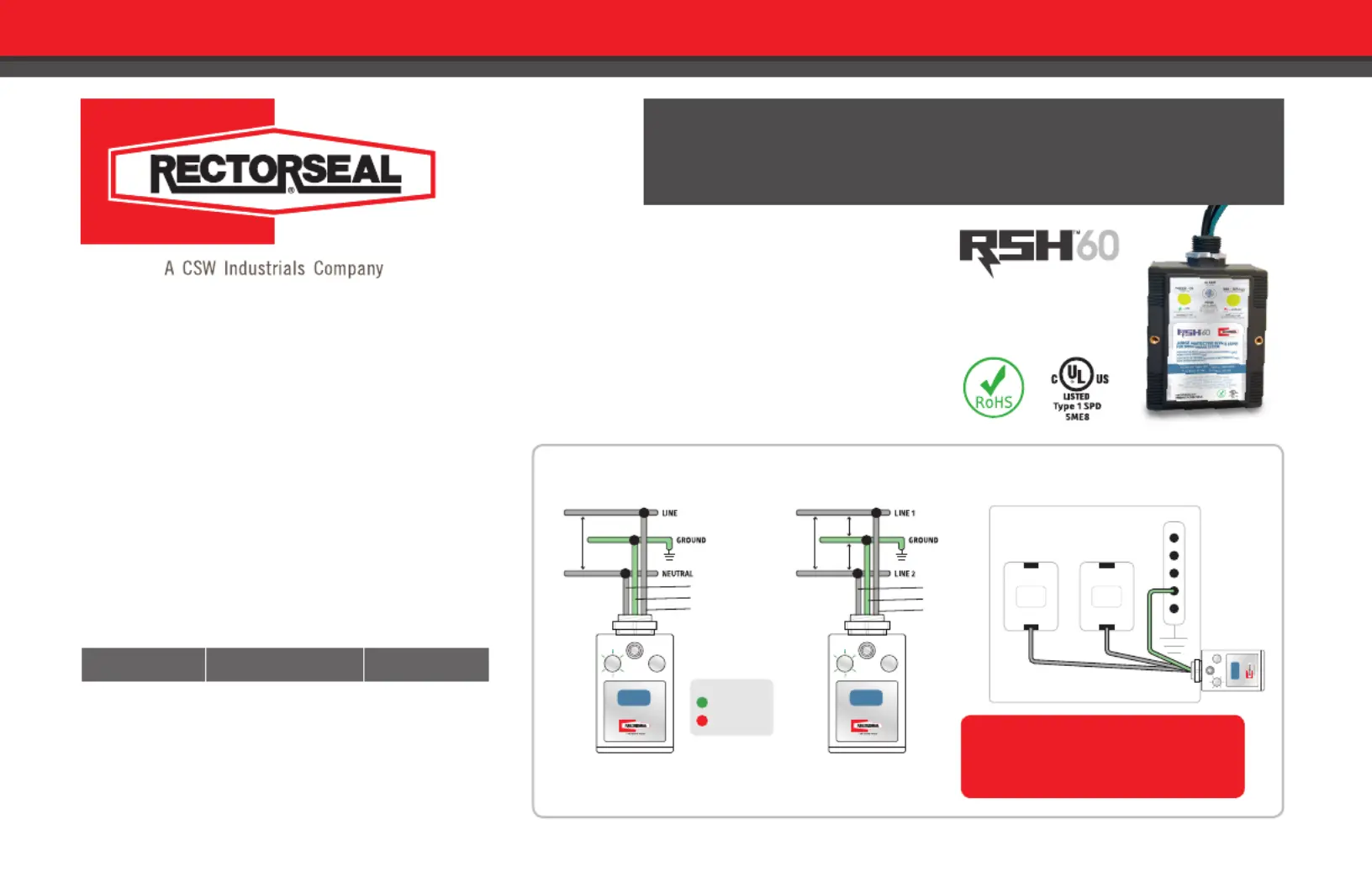

I N S T A L L A T I O N I N S T R U C T I O N S

Device Ratings

Normal Voltage

Per Leg

Max. Operating Voltage

(MCOV) Per Leg

Max. Discharge

Current (IMAX)

120 VAC 150 VAC 60k A

Para instrucciones en español visite www.rectorseal.com

Technical Support Call 1-800-648-6802

All surge protection devices require a good ground connection for effective operation

Installation

1. To assure proper installation, measure the voltage on

each phase and ensure the correct device is installed.

2. Turn off power to the circuit where surge protector is to

be installed.

3. Mount device to keep conductor length as short as

possible. Cut wires to length and connect to circuit per

wiring diagram below avoiding sharp bends or looping.

4. Reinstall covers, restore power and conﬁrm diagnostic

LED is illuminated.

240 VAC DIAGRAM

Split-Phase System: 1 Ph, 2W + G

240 VAC 2POLE DISCONNECT

DIAGRAM

Black Black

Green

Ground

GREEN - OK RED - REPLAC E

RSH-60

120 VAC DIAGRAM

Single-Phase System: 1 Ph, 2W + G

ALTERNATIVE WIRING METHOD:

This SPD can be also be installed by splicing

into the wires of the WIP, within the disconnect

box or by using a double lug adapter.

BLACK

GREEN

BLACK

120 VAC

Diagnostic Operations

GREEN LED ON =

Syste protectm ed

RED LED ON =

Replace Device

GREEN - OK RED - RE PLACE

RSH-60

240 VAC

120 VAC

BLACK

GREEN

BLACK

GREEN - OK RED - RE PLACE

RSH-60

Surge Protective Device (SPD) for Single-Phase

System 120/240 VAC Type 1

RectorSeal, LLC • 2601 Spenwick Drive, Houston, TX 77055, USA • 800-231-3345 • Fax 800-441-0051 • rectorseal.com

A CSW Industrials Company. RectorSeal, the logos and other trademarks are property of RectorSeal, LLC, its afﬁliates or its licensor’s and are protected by copyright, trademark and other intellectual

Coverage for the RSH-60 Surge Protective Device (SPD) for Single-Phase System

Lifetime Product Warranty

PSP Products, Inc. (“Manufacturer”) will, at its sole discretion, repair or replace any RSH-60 Surge Protection Device (SPD) that is defective or is damaged by an electrical surge (including those

caused by lightning) for the lifetime of the product from the date of installation by the original owner or owner of record of the premises (User) at no cost to the User.

Connected Equipment Warranty

Manufacturer will, at its sole discretion, for a period of 5 years from the date of installation, repair or replace heating, ventilation and air conditioning equipment that is damaged as a result of

SPD failure during a surge event. Coverage is applicable only if the SPD (1) was fully functional immediately prior to the claim event; (2) was properly installed per the installation instructions;

and (3) sustained surge damage as a result of the claim event.

Damage claims must be made within 14 days of the occurrence and the SPD returned to Manufacturer within 30 days of the occurrence with the original purchase receipts of the SPD. Returned

SPDs require an RMA number and a completed Warranty Claim Form (contact Warranty Assistance for details), and the SPD must be determined to have failed based on Manufacturer's test

procedures.

This coverage is secondary to any applicable warranties, service contracts and all other insurance. If the claim is found to be valid, Manufacturer will pay up to the deductible amount of the

home owners insurance or the cost of the damage, whichever is less, subject to a $7500.00 limit per occurrence. All of the above items must be met in order to have a valid claim.

The above coverage applies to the User only and is the exclusive remedy under this warranty, whether based on contract, tort, including negligence, or otherwise. Manufacturer reserves the

right to audit the damages, site and/or cost of repairs and may require a notarized proof of loss. This warranty does not cover damage associated with sustained over voltages, vandalism, theft,

normal wear and tear, obsolescence, abuse, unauthorized modication or alteration, misuse, improper installation or catastrophic events including direct lightning hit.

Except as expressly provided by this warranty, Manufacturer disclaims liability for any incidental, indirect, special or consequential damages arising out of the sale or use of SPDs (including

without limitation: lost business prots, loss of data and all freight, mileage, travel time and insurance charges associated with warranty coverage claims). Some states do not allow the

exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights and you may have other
