iSeries

USER MANUAL

IS250

USB-C to HDMI, DVI & DisplayPort

Multiport Adapter

INTRODUCTION

Dear Customer,

Thank you for choosing this PureLink product. Please read the operating instruc-

tions carefully and especially observe the safety information.

DELIVERY CONTENTS

1x USB-C to HDMI, DVI & DisplayPort Multiport Adapter

1x User Manual

SPECIFICATIONS

Connector 1 USB-C male

Connector 2 HDMI, DVI & DisplayPort female

Length 0.10m

Supported standards USB-C, High Speed HDMI,

Single-Link DVI, DisplayPort

Maximum resolution 4K30Hz (HDMI), 1080p (DVI),

4K60Hz (DP)

DP-Alt Mode DP Alt-Mode

- 2 -

TABLE OF CONTENT

User Manual 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Delivery Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Specifications 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Warranty and Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disposal of the Device 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

- 3 -

FEATURES

• USB-C source signals to multiple AV outputs

• HDMI resolutions up to UltraHD / 4K @30Hz

• DVI resolutions up to 2K / 1080p @60Hz

• DisplayPort resolutions up to 4K@60Hz, 4:4:4

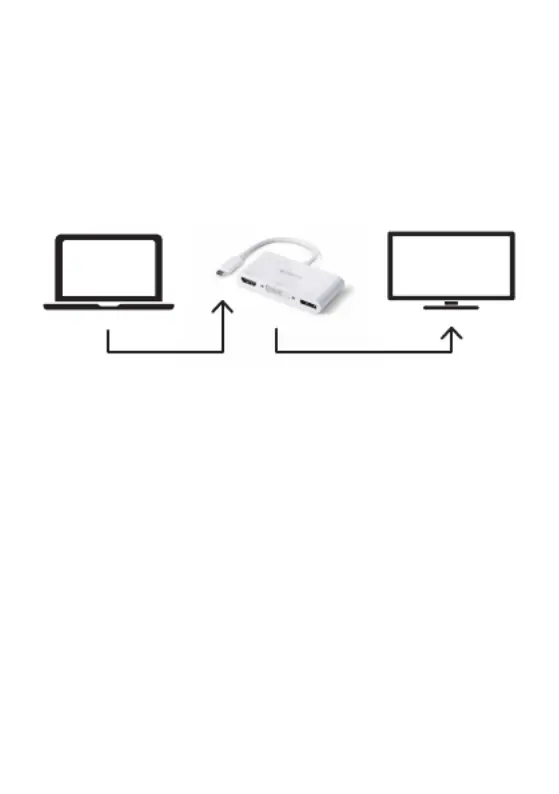

CONNECTION DIAGRAM

Laptop TV / Monitor / Projector

HDMI-, DVI- & DisplayPort Cable

OPERATION

Plug and Play

Connect the male USB-C connector of this adapter with a compatible USB-C

source device and then connect the display device using an appropriate HDMI,

DVI or DisplayPort cable.

Your USB-C device will automatically detect the audio and video signal and route

it to the connected HDMI, DVI or DisplayPort display device.

Enjoy watching videos, pictures and slideshows, alone or together on a larger

HDMI, DVI or DisplayPort display device.

Note: If two or three of the outputs are connected simultaneous, only one port

can output the signal. The priority sequence is: DisplayPort -> HDMI -> DVI

Note for Macbook users:

Macbook does not support 4K@60Hz resolutions; sink displays with a max. re-

solution of 4K@60Hz will not display an image. When connecting the adapter

to a Macbook, please set the output resolution to 4K@30Hz manually.

Product specificaties

Merk:	PureLink
Categorie:	Audio/video-converter
Model:	IS250
Kleur van het product:	Wit
Gewicht:	50 g
Breedte:	88 mm
Diepte:	194 mm
Hoogte:	20 mm
Snoerlengte:	0.1 m
Gewicht verpakking:	70 g
Breedte verpakking:	90 mm
Diepte verpakking:	146 mm
Hoogte verpakking:	20 mm
Materiaal behuizing:	Acrylonitrielbutadieenstyreen (ABS)
Land van herkomst:	China
Aantal HDMI-poorten:	1
Certificering:	FCC, CE
Soort voeding:	USB
Ondersteunt Mac-besturingssysteem:	Ja
Hostinterface:	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
(Buitenste) hoofdverpakking hoogte:	335 mm
(Buitenste) hoofdverpakking breedte:	340 mm
(Buitenste) hoofdverpakking lengte:	450 mm
Hoeveelheid per (buitenste) hoofdverpakking:	120 stuk(s)
Overdrachtssnelheid:	- Mbit/s
Code geharmoniseerd systeem (HS):	84719000
Aantal poorten:	3
Hub-interfaces:	DVI-I, DisplayPort, HDMI
Maximale resolutie (HDMI):	3840 x 2160 Pixels
Kabelhulsmateriaal:	Polyvinyl chloride (PVC)
