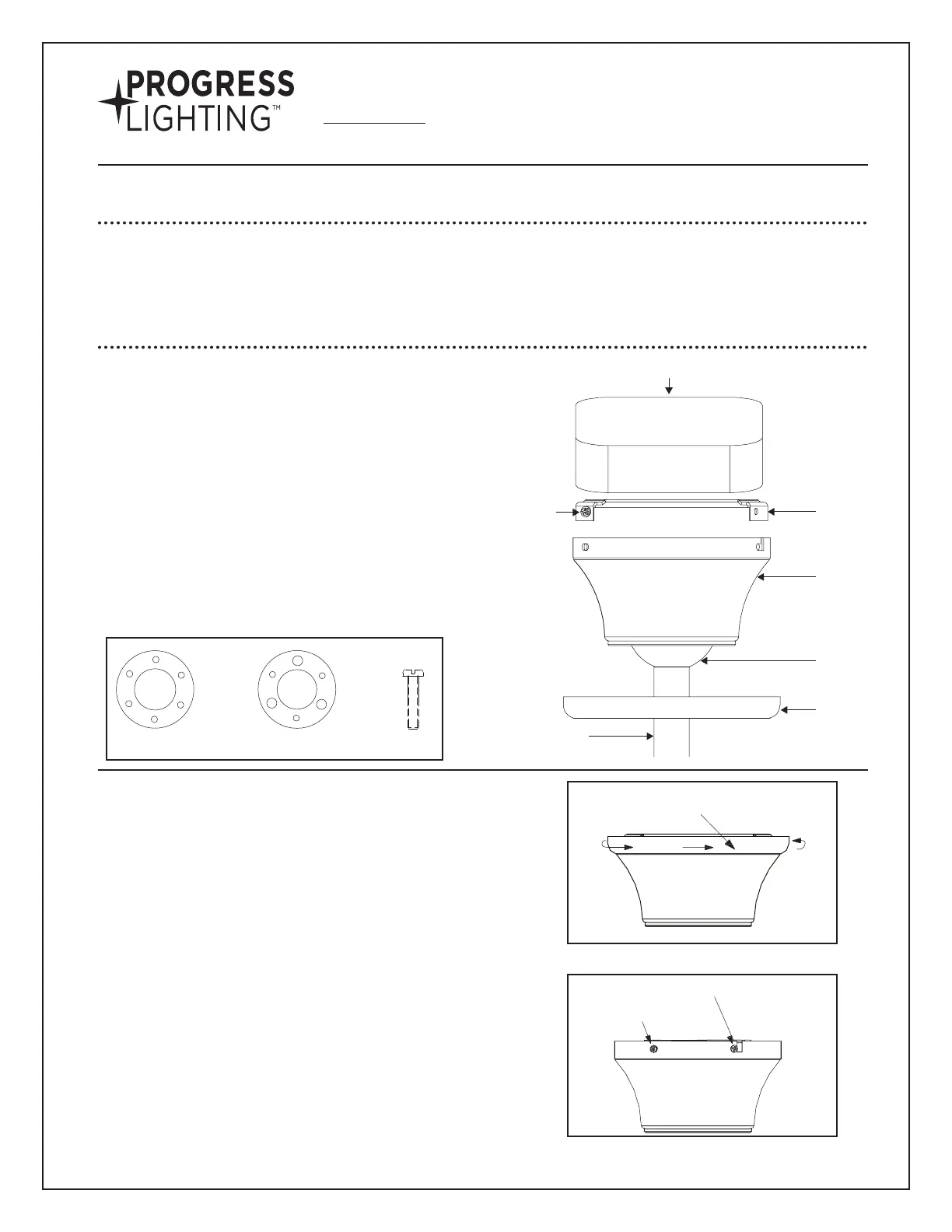

Assembly & Installation Instructions

CAUTION: Read instructions carefully and turn electricity off at

main circuit breaker panel before beginning installation.

P2666

CAUTION: P2666 45° CANOPY ONLY TO BE USED WITH THE FOLLOWING PROGRESS LIGHTING FAN

MODEL NUMBERS: P2501, P2503, P2521, P2526, P2530, P2531, P2533, P2539, P2584.

CAUTION: Risk of re. Min. 90°C supply conductors. Consult a qualified electrician to ensure correct branch

circuit conductor.

WARNING: If any special control devices are used with this xture, follow the instructions carefully to assure full

compliance with N.E.C. requirements. If there are any questions, contact a qualied electrical contractor.

45° CANOPY KIT

Design allows remote control receiver to be

installed within canopy up to a 45° angle.

Unpacking the Kit

1. Identify all the included components:

A. Mounting bracket with 4 canopy screws

B. Canopy

C. Canopy ring

D. Hanger ball

E. Metal clamp plate

F. Plastic gasket

G. Screw

EFG

Electrical box

A

Screw

D

C

Downrod

(not included)

B

Instructions

1. Turn off the power supply before installation.

2. The electrical box and support structure must be

securely mounted and capable of reliably supporting

35 lbs (15.9 kg) or less.

3. Remove the canopy ring (C) from the canopy (B) by

turning the ring to the right until it unlocks. (Figure A)

4. Remove the mounting bracket (A) from the canopy

(B) by loosening the four screws on the top of the

canopy (B). Remove the two non-slotted screws and

loosen the slotted screws. This will enable you to

remove the mounting bracket (A). (Figure B)

Figure B

Figure A

Customer Service: 1-800-447-1723PAGE 1 of 2

SPEC.NO. 93102260 03/15/2019

TURN CANOPY TO REMOVE

LOOSEN BUT DO NOT REMOVE

REMOVE
