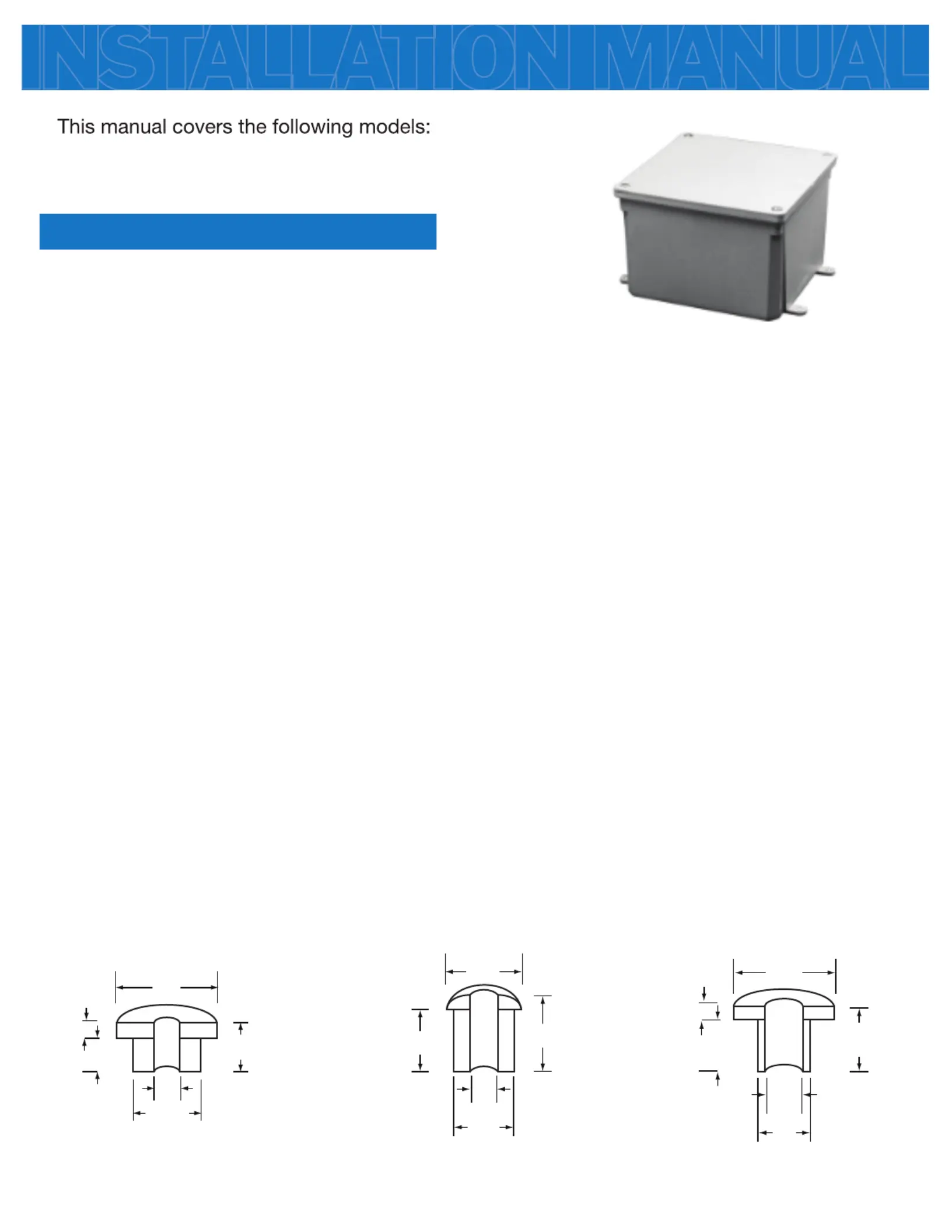

INSTALLATION MANUAL

• E219

Application Guide

The E219 is an optional aessory to WW160W (Wireless cc

Wire.) When WW160W is installed outdoors, it must be

weather protected. The E219 is a weather resistant

junction box that can be used to weather protect

WW160W.

Features:

• Non-metallic junction box

• UL Listed with a NEMA 6P rating per Section 314, exception of the National Electrical Code

• Manufactured from C or PPO thermoplastic molding compound and featuring foam- PV

in-place gasket lids attached with stainless steel screws.

Dimensions (inches):

Width = 6”

Height = 6”

Depth = 4”

Includes:

• 4 Stainless steel screws for lid

• Rubber grommets for 3, 5, or 8 wire holes

Steps to mounting WW160W in E219 Junction Box:

• Mount the base plate of WW160W output module to the bottom of junction box.

• Drill hole big enough for thermostat wire or rubber grommet (rubber grommet may

provide greater weather resistant seal)

• Feed thermostat wire through hole and connect to appropriate terminals

(see WW160W instruction manual for wiring instructions)

• Plug WW160W into subbase

• Screw lid tightly onto E219

• Mount or place E219 where appropriate

Optional rubber grommets

3 wire5 wire8 wire

3/8”

1/2”

9/

64”

1/4”

1/8”

3/4”

9/16”

1/2”

5/8”

7/16”

3/

16”

1/2”

3/8”

1/4”

3/8”

1/8”

3/4”

® U.S. Registered Trademark. Patents pending.

Copyright © 2019 All rights reserved.

Rev. 1908
