Pagina 1/6
Model Nos. 943-A, B, C, D, BK
Tomato Saber™
Operating
Instructions
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Fax: 630-462-1460
Toll Free: 1-800-PCASTLE
www.princecastle.com
943-500revD-EN Printed in USA 06/11 © 2011
Prince Castle’s Tomato Saber™ slicer is designed to
precisely slice whole tomatoes. With the exclusive Perma-
Tight™ disposable blade cartridge system, this unit never
requires blade tightening or adjusting. Engineered for
durability and long life, the Tomato Saber™ features self-
lubricating bearings, a safety shield, and a contoured
Tomato Pusher Assembly. The unit is shipped with a
Tomato Catcher, Table Stop Assembly, and a cleaning
brush.
Hazard Communication Standard (HCS) — The
Procedure(s) in this equipment manual include the use
of chemical products. These chemical products will be
highlighted with bold face letters followed by the
abbreviation (HCS) in the text of the manual. See the
Hazard Communication Standard (HCS) Manual for
the appropriate Material Safety Data Sheet(s) (MSDS).
TABLE OF CONTENTS
Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . 3
Ordering/Service Information. . . . . . . . . . . . . . . . . . . . 3
Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LIMITED WARRANTY
This product is warranted to be free from defects in material and/
or workmanship for a period of one (1) year from date of original
installation, not to exceed 18 months from date of shipment from
our factory . Blade with the exception of the blade cartridge
cartridge is warranted to be free from defects at time of delivery
only.
Any component which proves to be faulty in material and/or
workmanship will be replaced or repaired (at the option of Prince
Castle, Inc.) without cost (including freight and duty) to the
customer for parts or labor.
This warranty is subject to the following exceptions/conditions:
• Use of products other than tomatoes will void this warranty.
• This equipment is portable; charges for on-location service
(e.g., trip charges, mileage) are not included in the
provisions of this warranty.
• Damage caused by carelessness, neglect and/or abuse (e.g.,
dropping, tampering or altering parts), equipment damaged
in shipment, by fire, flood or an act of God is not covered
under this warranty.
Printed in USA 06/11 © 2011 2 943-500revD-EN
SET-UP
1. After you have removed the Tomato Saber™ from the
carton, inspect the unit for signs of damage. If there is
damage to the unit:
• Notify carrier within 24 hours after delivery.
• Save carton and packing materials for inspection
purposes.
• Contact your Prince Castle dealer for replacement or
the Prince Castle Customer Sales Department at 1-
800-722-7853 if purchased directly.
2. Verify that all parts have been received.
• Tomato Saber™ slicer with Perma-Tight blade
cartridge.
• Tomato Catcher — neatly catches sliced tomato.
• Table Stop Assembly — stabilizes unit for easier
slicing.
3. Place slicer on prep table or flat surface.
TIP: Use the ripest tomatoes first.
OPERATION
IMPORTANT:
The Tomato Saber™ is designed to slice
tomatoes only. Using it to slice other products may damage
the slicer and will void the warranty.

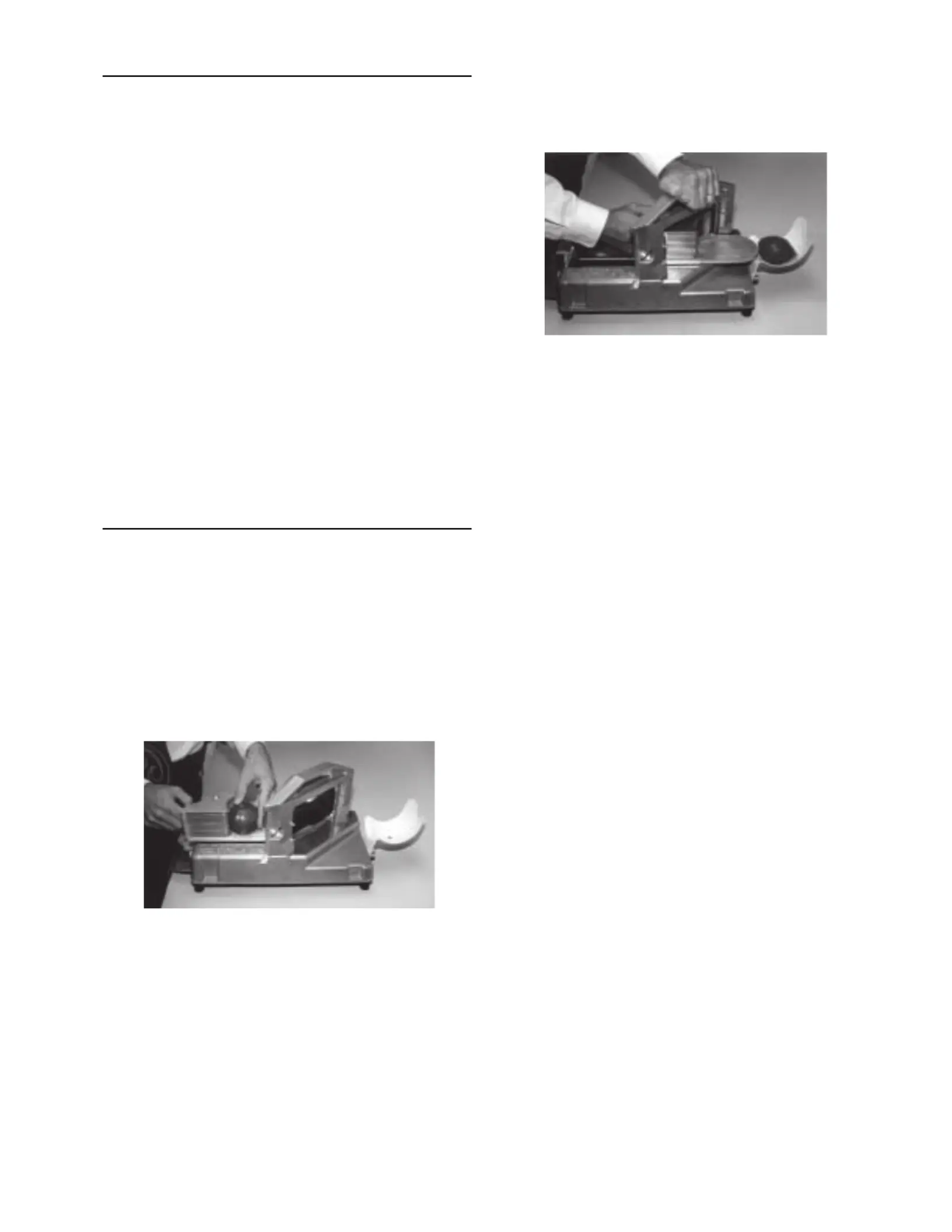

1. Grasp handle and pull all the way back to end of
stroke.
2. Insert tomato in front of the Tomato Pusher Assembly
with the core side down. See .figure 1
figure 1
3. Push handle with a quick, firm stroke all the way
through the blades and until the pusher stops. The
tomato will be completely sliced. See .figure 2
figure 2
4. Remove tomato slices from Tomato Catcher.
5. Place tomato slices in a clean, sanitized 1/6 size
tomato pan with false bottom.
6. Save end pieces and any slices with green core centers
(stem) showing. These are used for Fajita products.
7. Place pan in prep table. (Additional pans should be
covered and placed in walk-in cooler. Maximum 3
hour total holding time with no longer than 1 hour in
walk-in, no more than 2 hours at prep table.)
Identify pans stored in walk-in with the 1 hour
“remove from walk-in” time.
CLOSE
Daily cleaning of the tomato slicer will keep this piece of
equipment clean and free from build-up. However, if
residual tomato juice is allowed to remain on the tomato
slicer for long periods, a hard white deposit will form on
the cutting blades which becomes very hard to remove and
will dull the blades.
943-500revD-EN 3 Printed in USA 06/11 © 2011
MAINTENANCE
REPLACING BLADES
1. Grasp round, red handle and pull carrier assembly all
the way back.
2. While holding the bridge with one hand, firmly grasp
the blade cartridge by the finger grip (machined arrow
pointing up) with other hand. Pull the blade cartridge
all the way out. The blade cartridge retaining spring
clip will release the cartridge. See .figure 3
figure 3
3. Slide the new blade cartridge with arrow facing up.
See .figure 4
figure 4
4. Firmly push the blade cartridge into place until it snaps
into the blade clip. See .figure 5
figure 5
5. Place the old blade cartridge in the packaging from
new blade cartridge and properly discard.
6. Slide the Pusher Head halfway through the blades.
7. Looking at the blades from eye level, verify that each
Blade is in the center of the Pusher Head Plates.
8. If one or more of the blades are not aligned properly
(See ), follow the instructions below.figure 6
figure 6
9. Using a flat-head screwdriver, bend the Pusher Head
Plate either up or down, depending on the location of
the blade (See ).figure 7
figure 7
figure 8
10. Repeat step 9, for all Pusher Head adjustments.
NOTE: It is only necessary to bend the front of the Pusher
Head Plate.
11. Once the blade clears the front of the Pusher Head
Plate, the plate will glide through evenly the rest of the
way.
Un-even spaces
