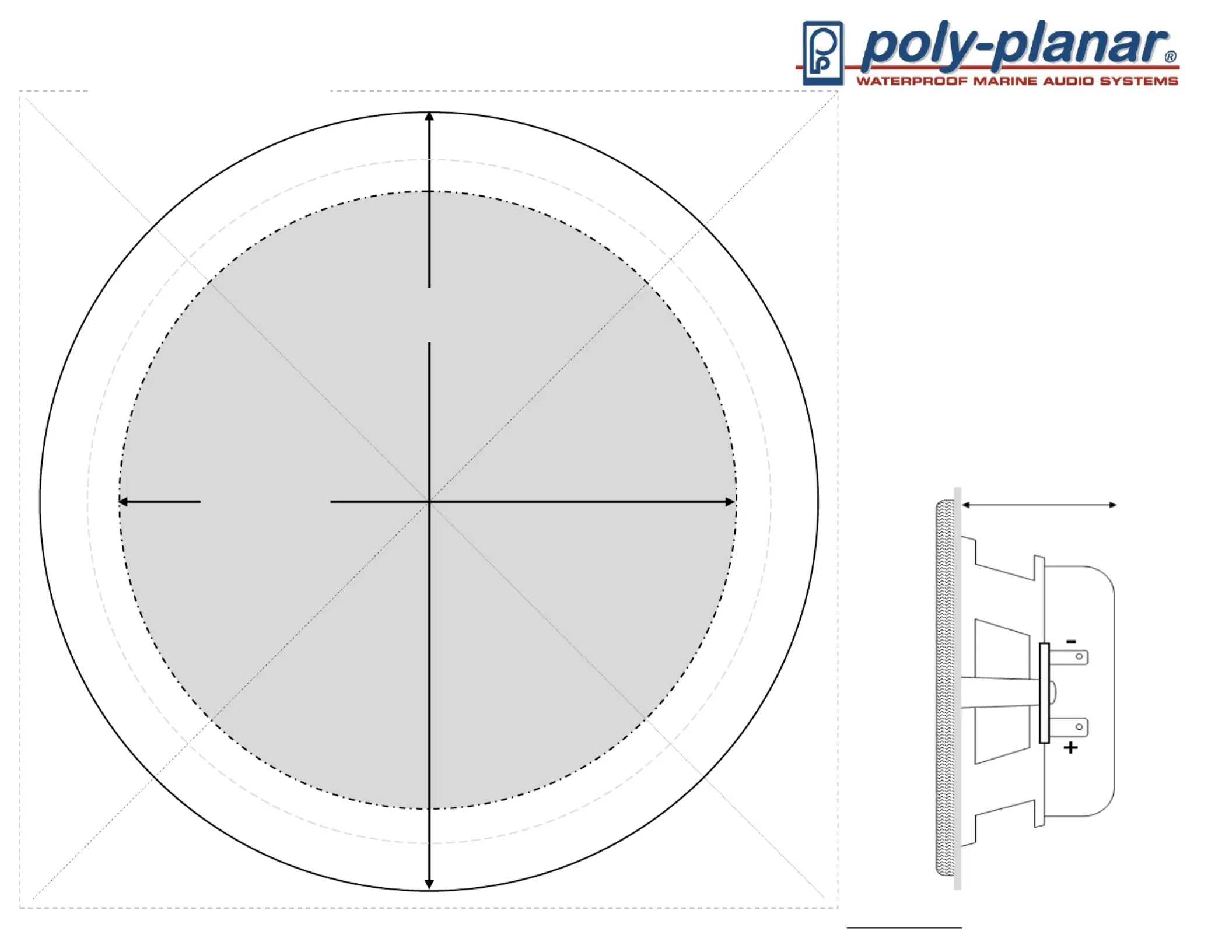

MA8506 Round Speaker Installation Guide
Cutout and use as template for drilling
Installation: Find a suitable location
making sure there is clearance for the
installed depth. Use a hole saw or other
suitable device to make a cutout.
Place the speaker in the cutout and
mark and drill holes for the mounting
screws (supplied). If the panel is too thin
or soft for screws use the stainless screw
clips in the hardware kit.
Attach speaker wires supplied, solid
color wire to positive (red dot or with +
sign or larger tab as shown on the
diagram) .
Scale= 1:1
Reproduction may change
accuracy
Mounting Depth
2.44 ”
