1. Package Contents

Thank you for purchasing PLANET Industrial IP67 1-port 10/100/1000T

802.3at PoE+ Injector, IPOE-165. In the following sections, the term

“Outdoor PoE Injector” means the IPOE-165.

Open the box of the Industrial PoE Injector and carefully unpack it. The

box should contain the following items:

IPOE-165 x 1User's Manual x 1

M22 Waterproof

Cable Gland x 3

Power Cable with 2-pin

Terminal Block x 1

Wall-mounted Kit x 1Ground Wire x 1

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original packing

material, and use them again to repack the product in case there is a

need to return it to us for repair.

2.2 Power Input Port

Figure 2-2 shows the Power Input port side of the IPOE-165

Figure 2-2: IPOE-165 Power Input port side

2.3 Data Input Port and 802.3at PoE+ Output Port

Figure 2-3 shows the Data Input Port and PoE+ Output Port side of the

IPOE-165.

PoE+ Output PortData Input Port

Figure 2-3: IPOE-165 two RJ45 ports side

Caution

Make sure the clamping nut is tightly attached to the

cable gland body and the sealing insert is squeezed

tightly.

Step 5: Repeat Steps 1 to 4 for “Data” Input Port and“PoE (Data +

Power)” Output Port

3. Installation

This section describes how to install the Outdoor PoE Injector and make

connections to it. Please read the following topics and perform the

procedure in the order being presented.

3.1 Installing Cable Gland with Power Cable and RJ45

UTP Cable

The cable gland consists of the following:

3.2 Connecting Waterproof Cable Kit to the Outdoor

PoE Injector

Step 1:Turn clockwise to tighten the gland body connected to the

Outdoor PoE Injector.

2. Hardware Introduction

This section describes the functionalities of the outdoor PoE Injector’s

components.

2.1 Product Outlook

Unit: mm

PoE-

in-Use

PoE+Data

IPOE-165

PWR

DC Input Range:

24-56V , 1.6A max.

V+

Figure 2-1: IPOE-165 product outlook

2.4 LED Indicators

LEDColorFunction

PWRGreenIndicates it has power.

PoE-in-Use Green

Indicates the port is providing 54V DC in-line

power.

To install the 2-pin Terminal Block Connector on the Outdoor PoE

Injector, simply follow the following steps:

Step 1:Insert positive DC power wire into V+, negative DC power wire

into V-, and grounding wire into Ground.

V+

V

-

2-pin

Step 2:Tighten the wire-clamp screws for preventing the wires from

loosening and plug them into the PoE Injector.

Note

1. The wire gauge should be in the range from 20 to 22

AWG.

2. The device must be grounded.

Step 2:Plug the power cable connector into the power input port.

Step 3:Insert the sealing insert into the cable gland body.

Step 4:Attach the clamping nut to the cable gland to complete the

cable assembly.

Note

1. Use only the waterproof cable gland provided in the

package of the IPOE-165.

2. If the above installation procedure is not properly

followed, the warranty will be invalidated.

11.31mm

40.78mm

5.00mm

30.22mm

29.80mm

20.18

13.72

14.00

30.10

3. If the waterproof cable gland is found missing or

damage, please contact your local reseller where you

purchased from.

4. Never use any waterproof cable gland that is not

purchased from PLANET or doesn’t have the same

dimensions of the IPOE-165; it will damage the device

permanently.

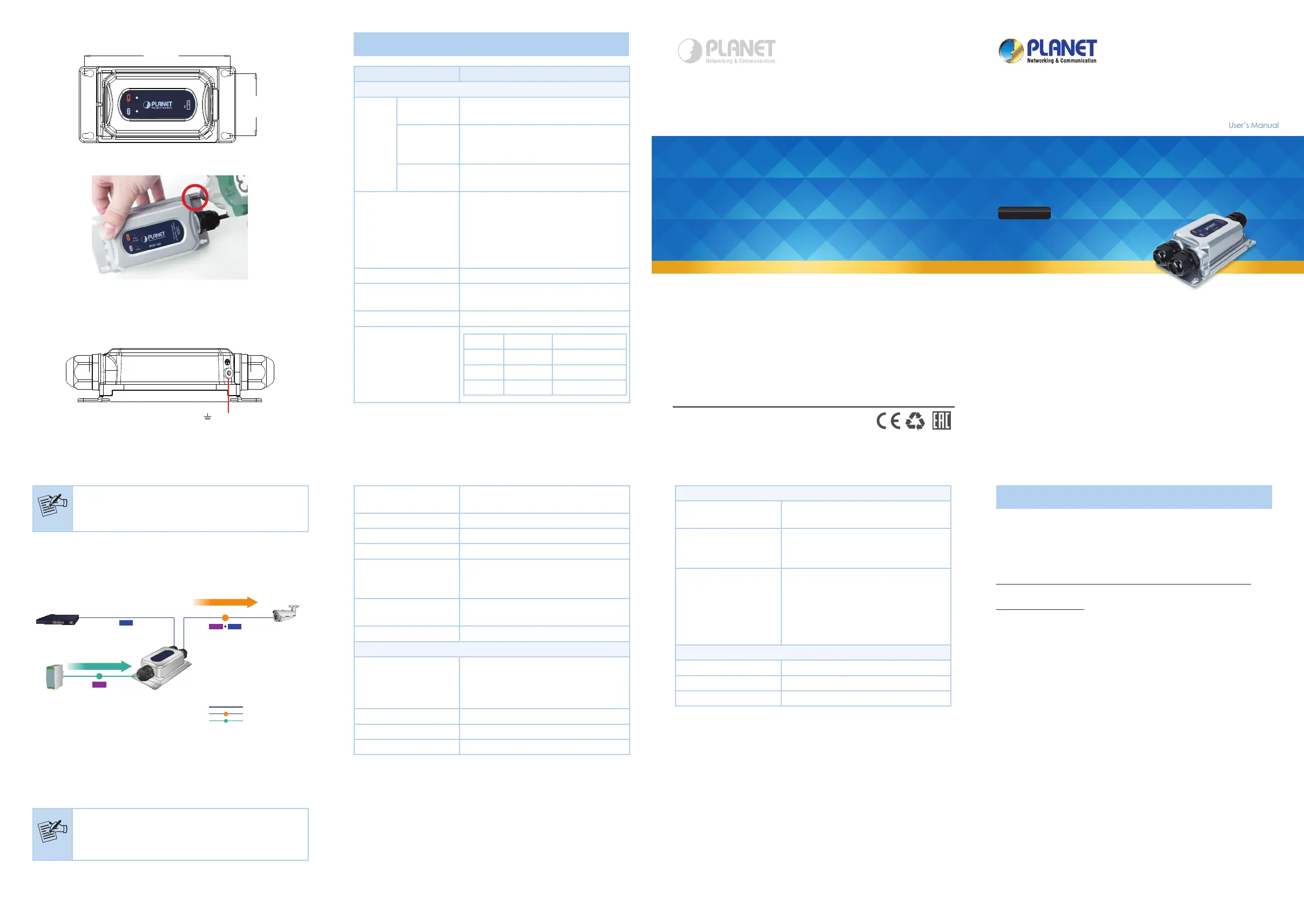

3.3 Wall-mount Installation

To install the Outdoor PoE Injector on the wall, please follow the

instructions described below.

Step 1:Find the wall that you want to mount the Outdoor PoE Injector

on.
