1. Package Contents

Thank you for purchasing PLANET industrial Gigabit Media Converter,

IGT-1205AT or IGT-2205AT. In the following sections, the term

“Industrial Gigabit Media Converter” mentioned in this user’s

manual also means the IGT-x205AT.

Open the box of the Industrial Gigabit Media Converter and carefully

unpack it. The box should contain the following items:

Industrial Gigabit Media

Converterx 1 User’s Manual x 1 SFP Dust Cap x 2

DIN-rail Kit x 1 Wall-mount Kit x 1 RJ45 Dust Cap

IGT-1205AT x 1

IGT-2205AT x 2

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original packing

material, and use them again to repack the product in case there is a

need to return it to us for repair.

2.2 LED Indicators

 System

LED Color Function

P1 Green Lit: Indicates power 1 has power.

P2 Green Lit: Indicates power 2 has power.

Alarm Red Lit: Indicates one or more of the following events

are triggering the alarm (LED).

 Alarm LED denition

PWR1 PWR2 DIP Fiber Port

Link Status Alarm LED FAULT Alarm

OUTPUT

NO NO NO- - -

YES YES Switch - O Normal Close

YES Switch OnNO - Fault Open

NO YES Switch On- Fault Open

YES YES Redundant Primary ON O Normal Close

YES YES Redundant Primary

DOWN

Slow blink

for 2 seconds Fault Open

YES RedundantNO Primary

DOWN Blink rapidly Fault Open

NO YES Redundant Primary

DOWN Blink rapidly Fault Open

YES Redundant OnNO Primary ON Fault Open

NO YES Redundant OnPrimary ON Fault Open

2.5 Wiring the Fault Alarm Contact

The fault alarm contacts are in the middle of the terminal block

connector as the picture shows below. When inserting the wires, the

Industrial Gigabit Media Converter will detect the fault status of the

power failure and then forms an open circuit. The following illustration

shows an application example for wiring the fault alarm contacts.

Fault Alarm Contacts

The Fault Alarm Contacts are

energized (CLOSE) for normal

operation and will OPEN when

failure occurs

Alarm

1 2 3 4 5 6

Insert the wires into the fault alarm contacts

Note

1. The wire gauge for the terminal block should be in the

range between 12 and 24 AWG

2. Alarm relay circuit accepts up to 24V DC, max. 1A

currents.

Caution

Although 2.5G LED is a bi-color light, the actual color is

close to Amber.

2.3 Converter Upper Panel

The upper panels of the IGT-x205AT consist of one terminal block

connector within two DC power inputs, and the IGT-x205AT also

provides one DIP switch for ber redundant function. Figure 2-3 shows

the upper panel of the IGT-x205AT.

DC Input: 12-48V

, 0.6A

AC Input: 24V

, 0.6A

Switch

Redundant

Fiber

Mode

V1+ V2+

PWR1 PWR2Alarm

Max. Fault Alarm Loading: 24V, 1A

1 2 3 4 5 6

Figure 2-3: IGT-x205AT Upper Panel

The DIP switch settings and descriptions of the IGT-x205AT

Switch

Redundant

Fiber

Mode

DIP Position Function

Fiber Mode ON Fiber Redundancy

OFF (default) Switch Mode

Note

1. If using the Switch mode, the IGT-x205AT can use 3

or 4 ports.

2. If using the , one of the two Fiber Redundant mode

ports will be redundant while the other 1 or 2 copper

ports are in operation.

2. Hardware Introduction

2.1 Converter Front Panel

Figures 2-1 and 2-2 show the front panels of the Industrial Gigabit

Media Converters.

LNK/ACT

10/100

1000

LNK /

ACT

LNK /

ACT

SFP

P1 P2 Alarm

100/1G/2.5G

SFP

2.5G

1000

100

10/100/1000T

LNK /

ACT

LNK /

ACT

SFP

P1 P2 Alarm

100/1G/2.5G

SFP

2.5G

1000

100

10/100/1000T

LNK/ACT

10/100

1000

 SFP Port

100/1000/2500BASE-X SFP port

for transceiver module, enables

to have a networking distance of

300 meters to 2km (multi-mode

ber) and 10/20/40/60/80/120

kilometers (single-mode ber)

 Gigabit TP Interface

10/100/1000BASE-T copper RJ45

twisted-pair with up to 100 meters

in distance.

Figure 2-1:

IGT-1205AT

Front Panel

Figure 2-2:

IGT-2205AT

Front Panel

 Per 10/100/1000T Port

LNK/ACT

10/100

1000

10/100/1000T

LED Color Function

10/100

LNK/

ACT

Amber

Lit: Indicates the link through that port

is successfully established at 10Mbps or

100Mbps.

Blinking: Indicates that the Media

Converter is actively sending or receiving

data over that port.

1000

LNK/

ACT

Green

Lit: Indicates the link through that port

is successfully established at 1000Mbps.

Blinking: Indicates that the Media

Converter is actively sending or receiving

data over that port.

 Per 100/1000/2500X SFP Port

LNK /

ACT

LNK /

ACT

SFP

100/1G/2.5G

SFP

2.5G

1000

100

LED Color Function

100

LNK/

ACT

Amber

Lit: Indicates the link through that port is

successfully established at 100Mbps.

Blinking: Indicates that the Media

Converter is actively sending or receiving

data over that port.

1000

LNK/

ACT

Green

Lit: Indicates the link through that port is

successfully established at 1000Mbps.

Blinking: Indicates that the Media

Converter is actively sending or receiving

data over that port.

2500

LNK/

ACT

Amber

Green

Lit: Indicates the link through that port is

successfully established at 2500Mbps.

Blinking: Indicates that the Media

Converter is actively sending or receiving

data over that port.

2.4 Wiring the Power Inputs

The 6-contact terminal block connector on the top panel of Industrial

Gigabit Media Converter is used for two DC redundant power inputs.

Please follow the steps below to insert the power wire.

1. Insert positive / negative DC power wires into contacts 1 and 2 for

POWER 1, or 5 and 6 for POWER 2.

DC I put: 12-48V

, 0.6A

A nput: 24V

, 0.6A

Switch

Redundant

Fiber

Mode

V1+ V2+

PWR1 PWR2Alarm

Max. Fault Alarm Loading: 24V, 1A

1 2 3 4 5 6

2. Tighten the wire-clamp screws for preventing the wires from loos-

ening.

1 2 4 53 6

Power 1 Power 2Alarm

+ - + -

Note

1. The wire gauge for the terminal block should be in the

range between 12 and 24 AWG.

2. The DC power input range is 12V ~ 48V DC and

supports 24V AC.

3. Use one power input when using 24V AC.

2.6 Grounding the Device

Users MUST complete grounding wired with the device; otherwise, a

sudden lightning could cause fatal damage to the device.

DC Input: 12-48V

, 0.6A

AC Input: 24V

, 0.6A

Switch

Redundant

Fiber

Mode

V1+ V2+

PWR1 PWR2Alarm

Max. Fault Alarm Loading: 24V, 1A

1 2 3 4 5 6

Earth Ground

Note

EMD (Lightning) DAMAGE IS NOT CONVERED UNDER

WARRANTY.

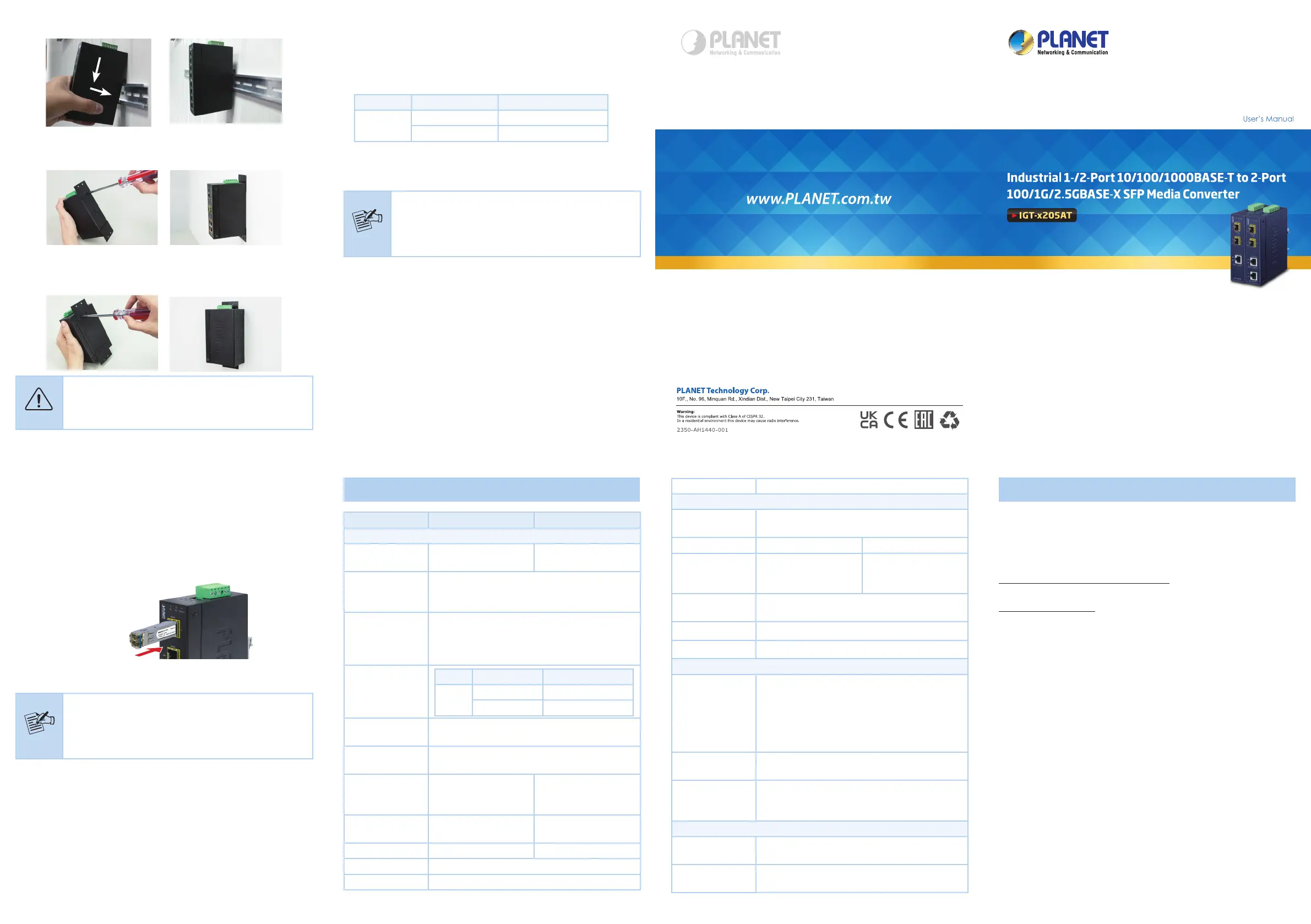

3. Installation

This section describes the functionalities of the Industrial Gigabit Media

Converter’s components and guides how to install it on the DIN-rail

and wall. Basic knowledge of networking is assumed. Please read this

chapter completely before continuing.

Note

This following pictures show the user how to install the

device, and the device is not IGT-x205AT.

- 9 -

- 10 -

- 11 -

- 12 - - 13 - - 14 -

3.1 DIN-rail Mounting Installation

3.2 Wall-mount Plate Mounting

3.3 Side Wall-mount Plate Mounting

Caution

You must use the screws supplied with the wall-

mounting brackets. Damage caused to the parts by

using incorrect screws would invalidate your warranty.

3.3 Installing the SFP Transceiver

The sections describe how to insert an SFP transceiver into an SFP

port.

The SFP transceivers are hot-pluggable and hot-swappable. You can

plug in and out the transceiver to/from any SFP port without having

to power down the Industrial Gigabit Media Converter as Figure 3-1

shows.

MGB / MFB

Series Module

Figure 3-1: Inserting the SFP Transceiver

Note

It is recommended to use PLANET SFP transceiver on

the Industrial Gigabit Media Converter. If you insert an

SFP transceiver that is not supported, the Industrial

Gigabit Media Converter will not recognize it.

4. Product Specications

Model IGT-1205AT IGT-2205AT

Hardware Specications

Copper Interface 1 x 10/100/1000BASE-T

RJ45

2 x 10/100/1000BASE-T

RJ45

Fiber Optic

Interfaces

2 x 100/1G/2.5GBASE-X SFP interfaces

(Port-1 and Port-2)

Supports auto detection

Connector

Removable 6-pin terminal block

Pin 1/2 for Power 1;

Pin 3/4 for fault alarm;

Pin 5/6 for Power 2

DIP Switch

DIP Position Function

Fiber

Mode

ON Fiber Redundancy

OFF (default) Switch Mode

Alarm Provides one relay output for power failure

Alarm Relay current carry ability: 1A @ DC 24V

Power

Requirements

DC 12~48V or AC 24V

Redundant power with reverse polarity protection

Power

Consumption /

Dissipation

4.8 watts/16BTU 4.92 watts/16.9BTU

Dimensions

(W x D x H) 32 x 87 x 135mm 32 x 87 x 135mm

Weight 412g 419g

Enclosure IP30 type metal case

Installation DIN-rail kit and wall mount ear

ESD Protection 6KV DC

Converter Specications

Processing

Scheme Store-and-Forward

Fabric 12Gbps 14Gbps

Throughput

(packet per

second)

8.93Mpps@64bytes 10.42Mpps@64bytes

Flow Control Back pressure for half duplex.

IEEE 802.3x pause frame for full duplex

Address Table 4K entries

Jumbo Frame 9216bytes

Standards Conformance

Standards

Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.1p Class of Service

Regulatory

Compliance FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall)

IEC60068-2-27 (shock)

IEC60068-2-6 (vibration)

Environment

Temperature Operating: -40~75 degrees C

Storage: -40~75 degrees C

Humidity Operating: 5~95% (non-condensing)

Storage: 5~95% (non-condensing)

PLANET Industrial Gigabit Media Converter supports 100/1000/2500X

with both single mode and multi-mode SFP transceivers. Before we

connect Industrial Gigabit Media Converter to the other network device,

please do the following:

1. Set the DIP Switch of SFP Port 1 or Port 2 to the position “OFF”

with ber speed auto detection.

DIP Position Function

Fiber Mode ON Fiber Redundancy

OFF (default) Switch Mode

2. Make sure both sides of the SFP transceivers are with the same

media type, for example, 1000BASE-SX to 1000BASE-SX, and

1000BASE-LX to 1000BASE-LX.

Note

Never pull out the module without pulling the lever or

the push bolts on the module. Directly pulling out the

module with force could damage the module and the

SFP port of the Industrial Gigabit Media Converter.

5. Customer Support

Thank you for purchasing PLANET products. You can browse our online

FAQ resource on PLANET web site rst to check if it could solve your

issue. If you need more support information, please contact PLANET

switch support team.

PLANET online FAQs:

http://www.planet.com.tw/en/support/faq

Switch support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Product specificaties

Merk:	Planet
Categorie:	Niet gecategoriseerd
Model:	IGT-2205AT
Kleur van het product:	Blauw
Gewicht:	419 g
Breedte:	32 mm
Diepte:	87 mm
Hoogte:	135 mm
Materiaal behuizing:	Metaal
Internationale veiligheidscode (IP):	IP30
LED-indicatoren:	Ja
Aantal Ethernet LAN (RJ-45)-poorten:	2
Certificering:	FCC Part 15 Class A, CE
Netwerkstandaard:	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Temperatuur bij opslag:	-40 - 75 °C
Luchtvochtigheid bij opslag:	5 - 95 procent
Auto MDI/MDI-X:	Ja
Jumbo Frames ondersteuning:	Ja
Auto-negotiation:	Ja
Bedrijfstemperatuur (T-T):	-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V):	5 - 95 procent
Jumbo frames:	9000
DIN rail bevestiging:	Ja
Store-and-forward:	Ja
Vezel-optische connector:	SFP
Fibre channel-poorten:	2
