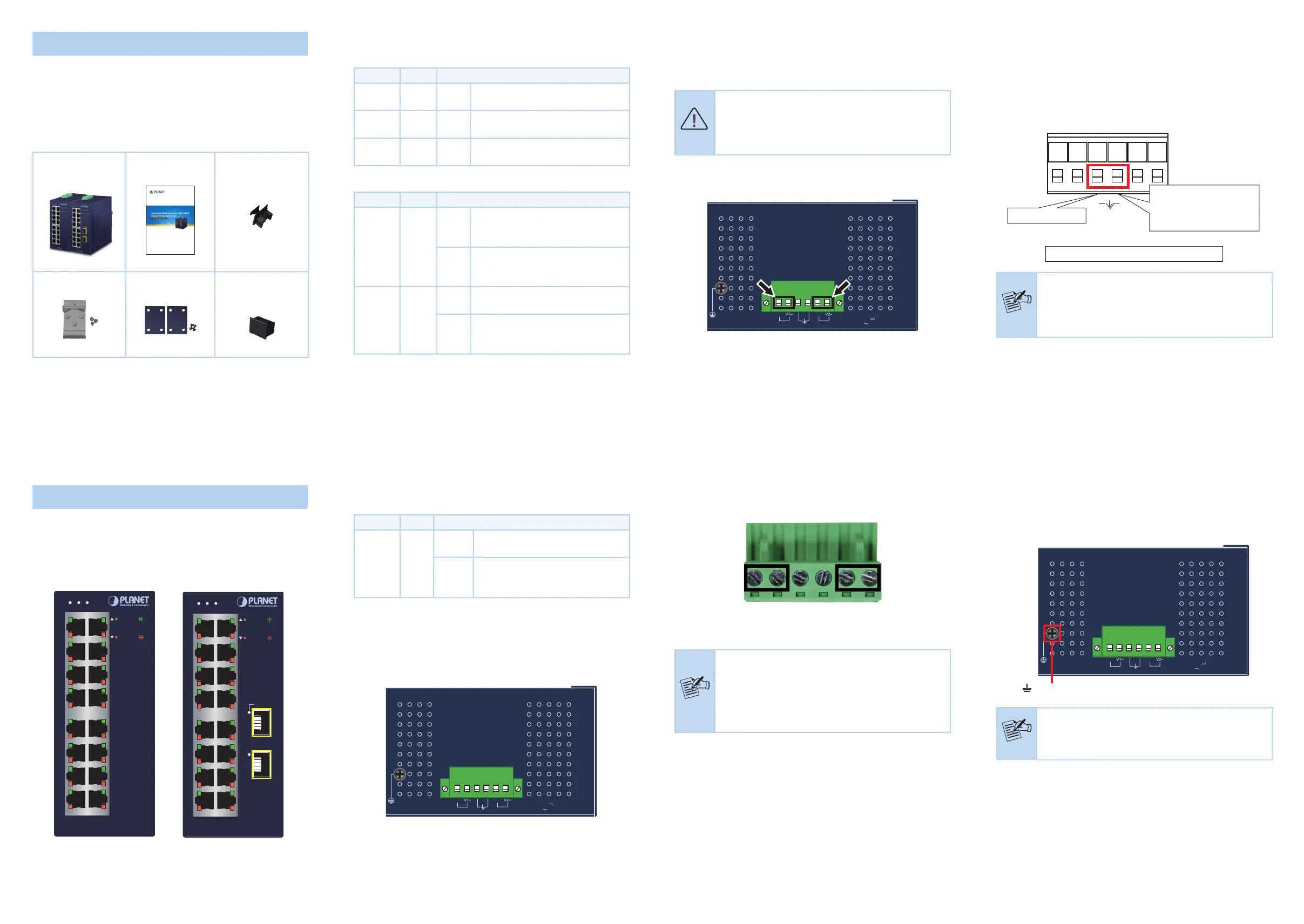

1. Package Contents

Thank you for purchasing PLANET Industrial Multi-port

10/100/1000T Gigabit Ethernet Switch, IGS-1600T/IGS-1820TF.

In the following sections, the term “Industrial Ethernet

Switch” means the IGS-1600T or IGS-1820TF.

Open the box of the Industrial Ethernet Switch and carefully

unpack it. The box should contain the following items:

Industrial Ethernet

Switch x 1

User’s Manual x 1RJ45 Dust Cap x 16

DIN-rail KitWall-mount KitSFP Dust Cap x 2

(IGS-1820TF only)

If any of these are missing or damaged, please contact your

dealer immediately; if possible, retain the carton including the

original packing material, and use them again to repack the

product in case there is a need to return it to us for repair.

2.2LEDDenition:

 System

LEDColorFunction

P1GreenLights

Lights to indicate power input 1

has power.

P2GreenLights

Lights to indicate power input 2

has power.

FaultRedLights

Lights to indicate that AC or DC

power has failed.

 Per 10/100/1000BASE-T Port

LEDColorFunction

1000

LNK/ACT

Green

Lights

To indicate the link through that

port is successfully established at

1000Mbps.

Blinks

To indicate that the switch is

actively sending or receiving data

over that port.

10/100

LNK/ACT

Amber

Lights

To indicate the port is successfully

established at 10/100Mbps.

Blinks

To indicate that the Switch is

actively sending or receiving data

over that port.

2.5WiringtheFaultAlarmContact

The fault alarm contacts are in the middle of the terminal block

connector as the picture shows below. Inserting the wires, the

Industrial Ethernet Switch will detect the fault status of the

power failure, and then forms an open circuit. The following

illustration shows an application example for wiring the fault

alarm contacts.

Fault Alarm Contacts

The Fault Alarm Contacts are

energized (CLOSE) for normal

operation and will OPEN when

failure occurs

Fault

Insert the wires into the fault alarm contacts

Note

1. The wire gauge for the terminal block should be

in the range between 12 and 24 AWG.

2. Alarm relay circuit accepts up to 24V, max. 1A

currents.

2.4WiringthePowerInputs

The 6-contact terminal block connector on the top panel of

Industrial Ethernet Switch is used for two redundant power

inputs. Please follow the steps below to insert the power wire.

Caution

When performing any of the procedures like

inserting the wires or tightening the wire-clamp

screws, make sure the power is OFF to prevent

from getting an electric shock.

Insert positive and negative DC power wires into contacts 1

and 2 for POWER 1, or contacts 5 and 6 for POWER 2.

Fault

V1+V2+

PWR2PWR1

Max. fault loading: 24V, 1A

DC Input: 12-48V , 1.5A max.

AC

Input: 24V , 1A max.

1 2 3 4 5 6

2.HardwareIntroduction

2.1SwitchFrontPanel

The front panel of the Industrial Ethernet Switch consists of

Ethernet interfaces and LED indicators.

Front View

IGS-1600T

FaultP2P1

1

3

5

7

2

4

6

8

9

11

13

15

10

12

14

16

ACT

1000 LNK

ACT

10/100LNK

IGS-1820TF

FaultP2P1

1

3

5

7

2

4

6

8

9

11

13

15

10

17

12

14

16

ACT

1000 LNK

ACT

10/100LNK

1000 LNK/ACT

18

Figure1:

IGS-1600T Front View

Figure2:

IGS-1820TF Front View

Per1000BASE-XSFPPort

(Port-17andPort-18ofIGS-1820TF)

LEDColorFunction

LNK/ACTGreen

Lights

To indicate the port is successfully

established at 1000Mbps.

Blinks

To indicate that the Switch is

actively sending or receiving data

over that port.

2.3SwitchUpperPanel

The upper panel of the Industrial Ethernet Switch consists of

one terminal block connector within two power input and one

relay output.

Fault

V1+V2+

PWR2PWR1

Max. fault loading: 24V, 1A

DC Input: 12-48V , 1.5A max.

AC

Input: 24V , 1A max.

1 2 3 4 5 6

Figure3:IGS-1600T and IGS-1820TF Top View

Tighten the wire-clamp screws for preventing the wires from

loosening.

123456

Power 1FaultPower 2

+-+-

Note

1. The wire gauge for the terminal block should be

in the range between 12 and 24 AWG.

2. The power input range is DC 12V ~ 48V and

supports AC 24V.

3. Use one power input when using AC 24V.

2.6GroundingtheDevice

Users MUST complete grounding wired with the device;

otherwise, a sudden lightning could cause fatal damage to the

device.

Fault

V1+V2+

PWR2PWR1

Max. fault loading: 24V, 1A

DC Input: 12-48V , 1.5A max.

AC

Input: 24V , 1A max.

1 2 3 4 5 6

Earth Ground

Note

EMD (Lightning) DAMAGE IS NOT CONVERED UNDER

WARRANTY.
