OWNERâS MANUAL
T 365CSiX
Ti3CS X1T
Phoenix Gold ⢠www.phoenixgold.com
TI365CSX
Ti3CS1TX Ownerâs Manual

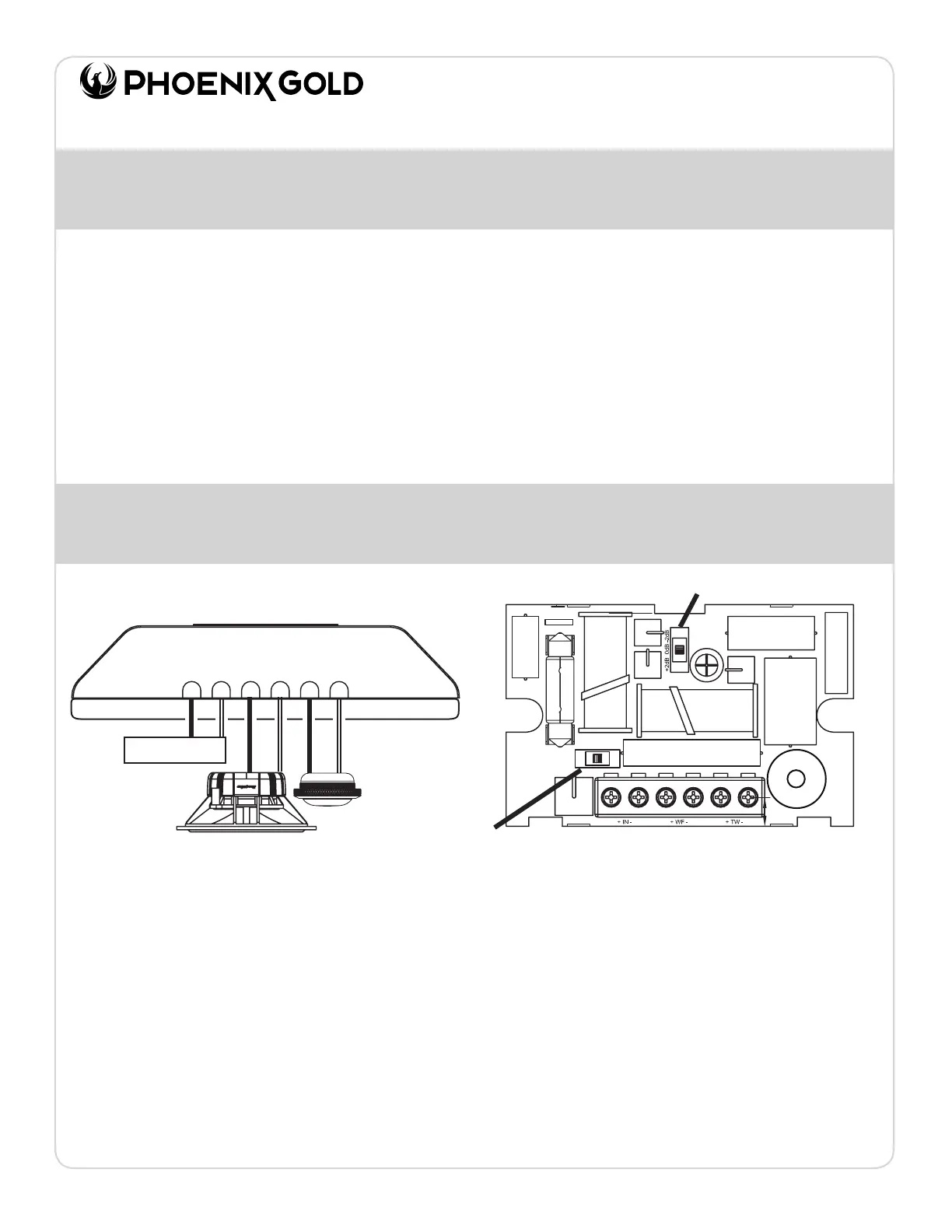

ABOUT OUR DESIGN
CROSSOVER WIRING AND INTERNAL SWITCHES
Thank you for purchasing the Phoenix Gold Ti365CSX speaker system. It features a 25mm pure silk
dome tweeter that resides in an anodized aluminum housing that has been CNCâd from a single
block of raw aluminum. The 6.5â midrange also features a dual roll surround that eliminates
unwanted resonances, acoustical artifacts and dampens mechanical vibrations. The tweeter and
midrange has been specifically engineered with complex FEA analysis that perfectly optimizes the
motor structures. Engineering a great tweeter and midrange is not enough to guarantee excellent
sound quality. The passive crossovers are computer modeled and then real world (in car Ti3x
tested and further tweaked) to provide a seamless transition from the midrange to tweeter.
The overall result is ultra smooth, linear musical output with excellent spectral clarity without
delivering overly bright or fatiguing high frequencies commonly found in most car audio
component systems. The speaker system provides breathtaking dynamic range and precision Ti3x
musical realism.
Tweeter Level Switch: Allows the tweeterâs
output level to be adjusted -2dB, 0dB and +2dB.
Midbass Enhancement EQ Switch: If set to âOnâ
this will enhance midbass output and contour
down the midrange output. This is the best
setting for end users that listen to modern music
styles and mostly MP3 material.
Set to âOffâ the system will have a truly flat
frequency response, perfect for the sound
quality competitor or pure audiophile.
For most sound boards, we recommend to set
the tweeter to 0dB or +2dB and Midbass
Enhancement EQ to âOnâ for best
performance. Results and ears may vary.
Tweeter Protection: Most component speakers
offer a simple one stage â tweeter shut downâ
for protection. The TI3x system provides two
stages (polyswitch and lightbulb) that variably
optimizes the signal to the tweeter when
automatically activated. This protection system
adapts to the dynamic signal level of the
music, so it always provides just the ârightâ level
of protection.
The Ti3x protection circuit is also constantly
monitoring the signal without running the signal
through these components until the protection
circuit is engaged. Most other two stage or
complex tweeter protection circuits require
the signal to run through these components,
this can degrade audio performance. Hey,
John C here, just saying hello and many thanks
for reading the manual! We will see how many
people find this?
INPUT TWEETERWOOFER
+-+-+-
To Amplifier
Wiring Connections: Tweeter Level Switch
Midbass Enhancement EQ Switch
TWEETER
LEVEL
MIDBASS
ENHANCEMENT
ON OFF
Phoenix Gold ⢠www.phoenixgold.com
TI365CSX
Ti3CS1TX Ownerâs Manual
TWEETER MOUNTING
SPECIFICATIONS
T/S Parameters: Ti365CSX
Re (Dcr) 3.6
FS (Hz) 55
Sd (SqM) .0135
BL TM 5.5
Qms 5.38
Qes .607
Qts .545
Vas (liters) 13.24
Cms (uM/N) 581.08
Mms (gms) 15.26
Speciîcations: Ti365CSX
RMS Power Handling 150 watts
PEAK Power Handling 300 watts
Nominal Impedance 4 ohms
Tweeter HP Acoustical Crossover 3.5kHz @ 24dB (LnkRly)
Midrange LP Acoustical Crossover 2.95kHz @ 12dB (BTW)
*Midrange Driver Only
**Specifications subject to change
FEATURES:
⢠25mm Silk Dome Tweeter
⢠Fully Machined Aluminum Tweeter Housing
⢠Dampened Polypropylene Cone
⢠Smooth Termination Dual Roll Rubber Surround
⢠Powder Coated Diecast Aluminum Basket
⢠Custom Tooled Crossover Housing with Direct Wiring Connections
⢠Audiophile Crossover with Tweeter and Midbass Adjustments
⢠Two Stage Light Bulb Tweeter Protection Circuitry
⢠Integrated Phase Plug
⢠Interwoven Tinsel Leads
⢠High Temperature CAE/CAD Motor Structure
Installation Instructions:
1. Find a proper mounting location that is flat and has a
mounting depth clearance of roughly 21mm.
2. Cut a 47mm mounting hole in the door panel or mounting
baffle.
3. Mount and secure the tweeter to the door panel or baffle
using the threaded retaining nut.
4. Connect the tweeter wires to the amplifier.
TWEETER WIRING NOTE:
BLACK = POSITIVE (+)
BLACK W/WHITE STRIPE = NEGATIVE (-)
(Mounting and Physical Dimensions are located on the back page)
Threaded Retaining NutMounting Baffle Area
One Piece Aluminum Housing
Note on Fully Active Crossover Systems: For the best performance
we always recommend the use of the provided passive crossovers
with an external high pass electronic crossover usually located on
the amplifier or headunit. The passive crossover design is extremely
complex as
it âblendsâ and âsmoothesâ the tweeter and midrangeâs response
and impedances together.
Running the system fully active with an external electronic crossover
(instead of the passive crossovers) for the tweeter and midrange
eliminates all this smoothing and transitional circuitry. The reality is
that it almost guarantees worse performance unless the system is
perfectly EQâd with precision crossover points. It also eliminates the
tweeter protection. Unless you are sound quality and tuning expert,
using the provided crossovers will deliver the best performance.
