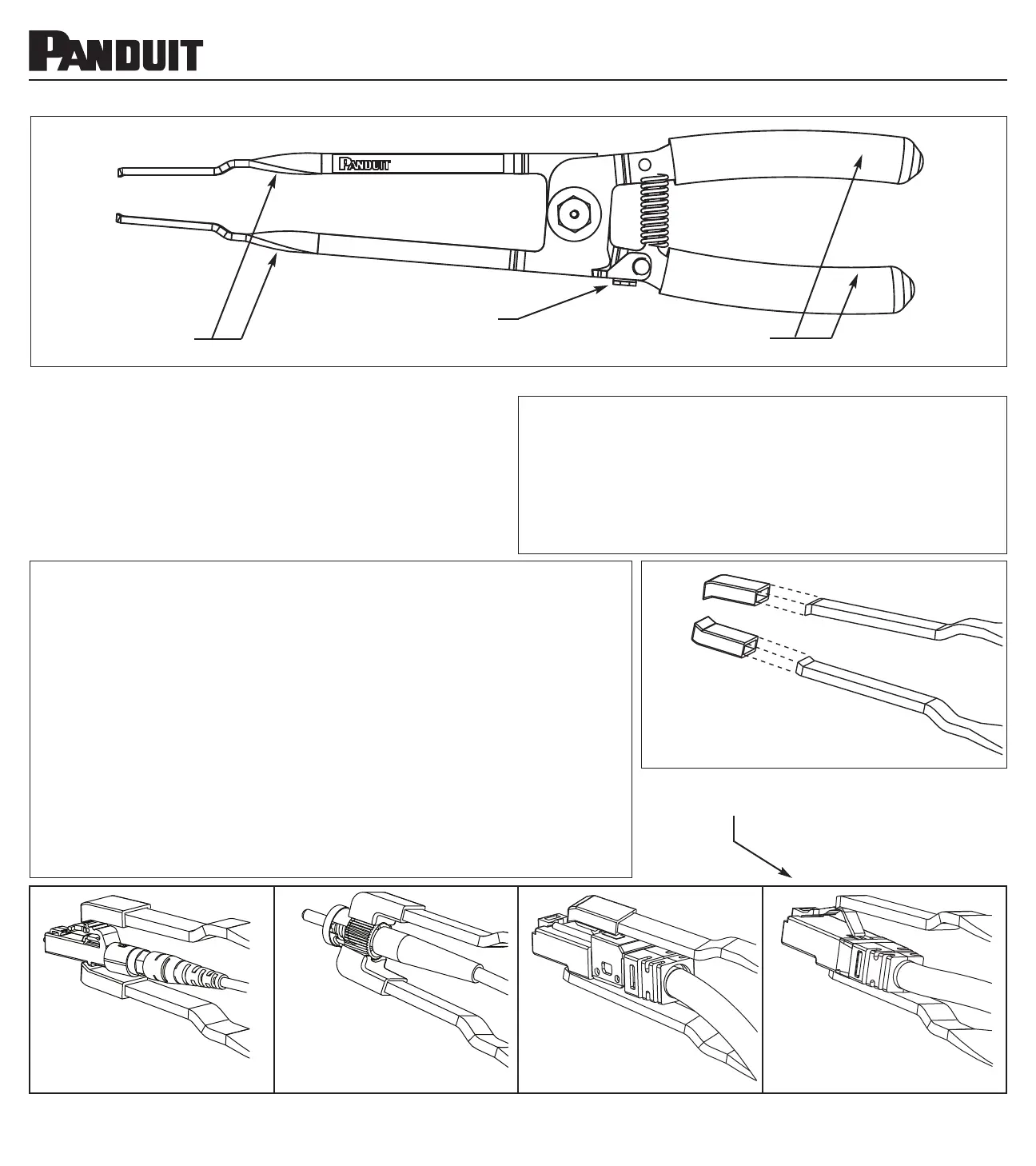

PCRT1

PA25513A01

Rev. 04 10-2014

© Panduit Corp. 2014

Page: 1 of 2

• The open arms allow the operator to pass over cabling that

interferes with plug accessibility

• PCRT1 can be used “open” (unlocked) for copper patch

cord plugs

• PCRT1 can be used “closed” (locked) for fiber optic patch

cord connectors

• PCRT1 can be used by either right or left handed operators

PCRT1PCRT1

OPERATION

1.If working with fiber optic patch cord connectors, apply desired

boots to the tool arms.

2.Place the arms on the fiber optic patch cord connector or copper

patch cord plug-latch (see figures below); the tool grip is

squeezed lightly to obtain a firm grip on the connector/plug.

3.Pulling the tool in a backwards direction will remove the

connector/plug from the module.

4.To install connector/plug, place connector/plug in arms, lightly

squeeze grip (tool will hold connector/plug-latch), and push

connector/plug into module with latch on the bottom.

LOCK, TOGGLE

[SHOWN IN THE “CLOSED”

(LOCKED) POSITION]

ERGONOMIC GRIPS

TOOL ARMS

PCRT1 is supplied with three different style

connector boots:

• (2) for LC/SC fiber optic patch cord connectors, color: black

• (2) for ST fiber optic patch cord connectors, color: black

• (1) for PVIQ copper patch cord plugs, color: off-white

Shown with

LC Fiber Optic Connector

Shown with

ST Fiber Optic Connector

Shown with

RJ45 Copper Plug

Shown with

PVIQ Copper Plug

NOTE: No boots are required for

installing or removing

standard RJ45 copper

patch cord plugs.

LC / SC

BOOTS

SHOWN
