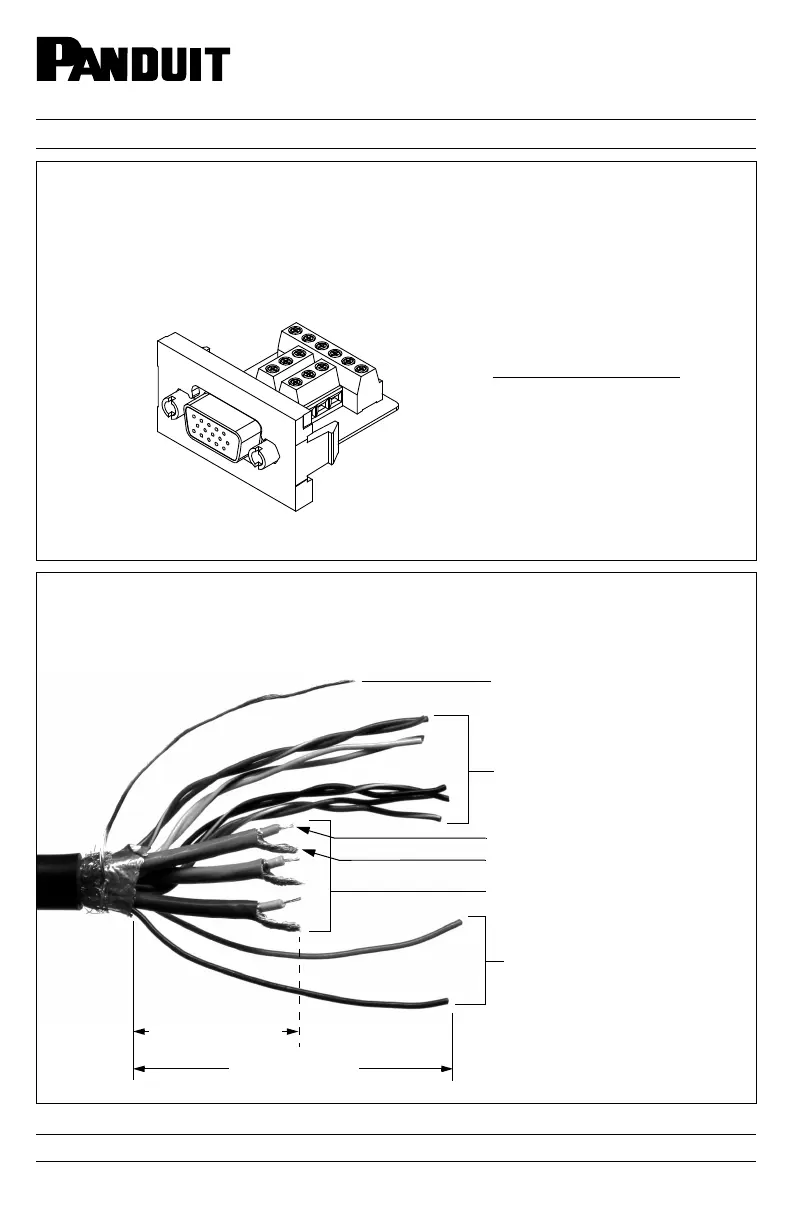

INSTALLATION INSTRUCTIONS

© Panduit Corp. 2014

PN389B

Page 1 of 2

For Technical Support: www.panduit.com/resources/install_maintain.asp

15-pin High-Density D-Subminiature

Field Terminating Insert

Part Number: CHD15HDSC**Y

INTRODUCTION

The screw-down type 15-pin D-sub connector is designed for use with video cables

having (3) coax lines (R,G,B) and (4) twisted pair lines with (2) conductor lines and a

drain wire. Numerous configurations of video cables exist, signal names are given to

accommodate the various video cable types with different conductor colors.

RECOMMENDED TOOLS

-2mm slotted screwdriver

-Wire cutters

-Wire strippers

-Cable stripper

CHD15HDSC**Y

STEP 1

Trim back video cable to expose conductors.

1 - Drain wire

4 - Twisted pair conductors

3 - COAX: Red, Green, Blue

2 - Conductors(COND)

Center conductor(CC)

Outer conductor shield(SHLD)

2" approximately

(TP)

1" approximately

** Denotes color.
