For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 1 of 2

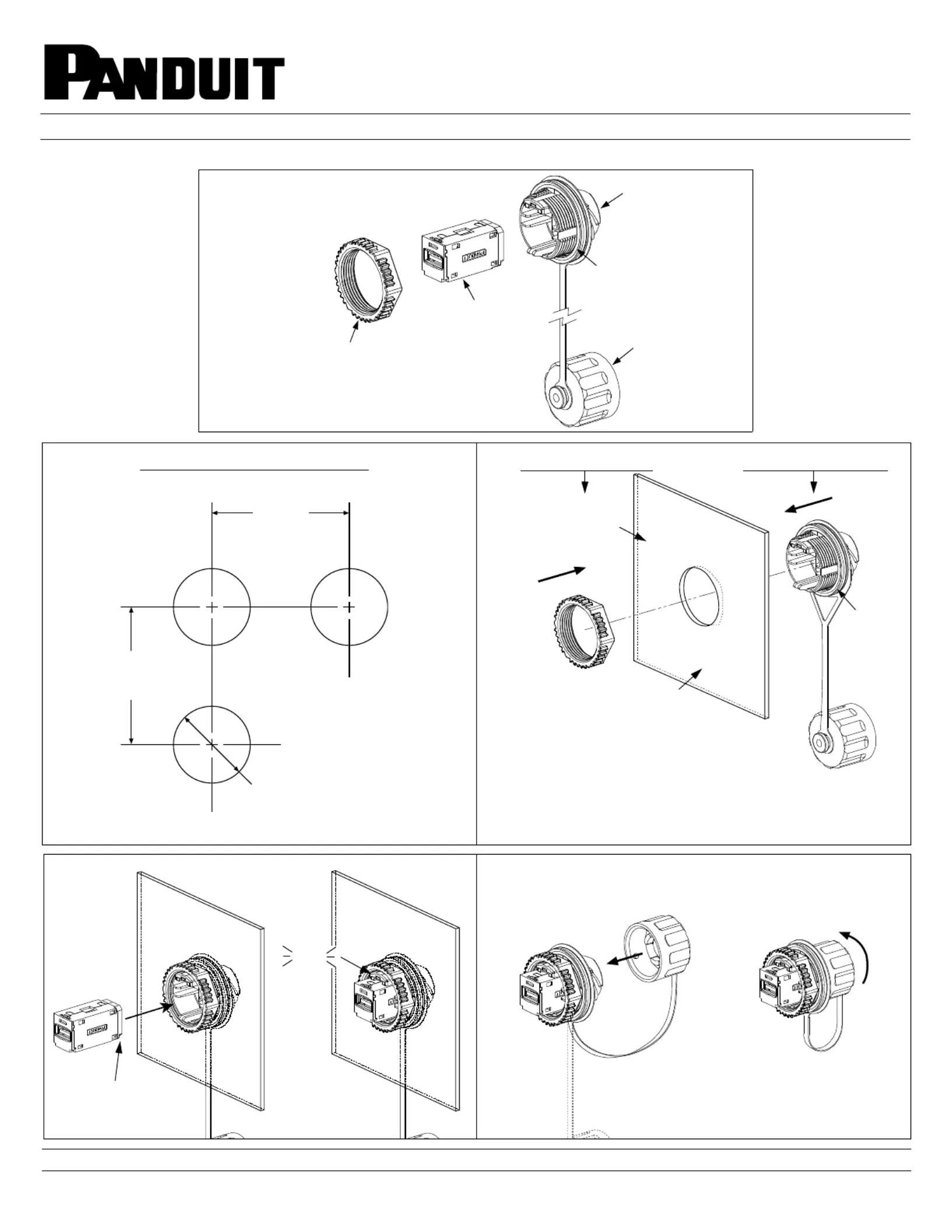

INSTALLATION INSTRUCTIONS

© Panduit Corp. 2018

PN556B

Bulkhead with

Nut

USB

Tether with

Cap

Coupler

Face Seal

Bulkhead

Seal

Module

IndustrialNet

TM

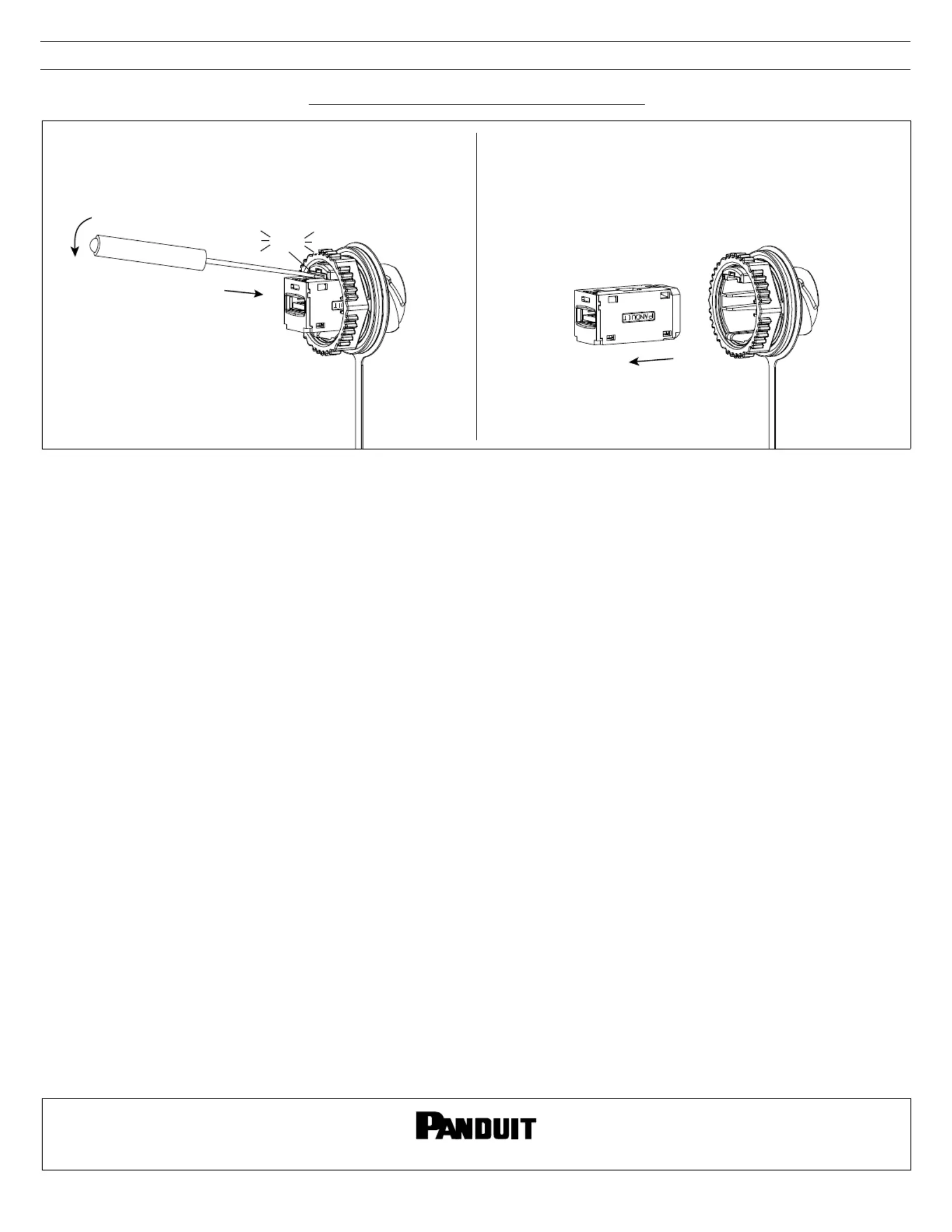

USB Coupler Module

Part Number: IAEBHUSBAA

3

Rounded

Click

4

Edges

(Enclosure wall removed for clarity)

1

2

Bulkhead Opening Requirements

Ø 1-13/64"

(30.6mm)

1-7/8"

(47.6)

1-7/8"

(47.6)

Enclosure Wall

Insert Bulkhead into prepared opening from outside of

enclosure. While holding Bulkhead in place, secure with

Nut on inside of enclosure. Hand turn Nut 4-1/4 to 5 full turns. Be careful not

to tighten to the point the Bulkhead Seal is over compressed and displaced

from the enclosure wall and the Bulkhead.

Note: If using wrench, flats on Nut should be on the outside.

Inside of EnclosureOutside of Enclosure

or Outlet Plate

Min. thickness: 0.035" (20 gauge)

Max. thickness: 0.135" (10 gauge)

Bulkhead

Seal

{not to scale}

Note: Bulkhead combination must be used on a flat surface of a NEMA 4X Enclosure to maintain rating.
