Pagina 1/4

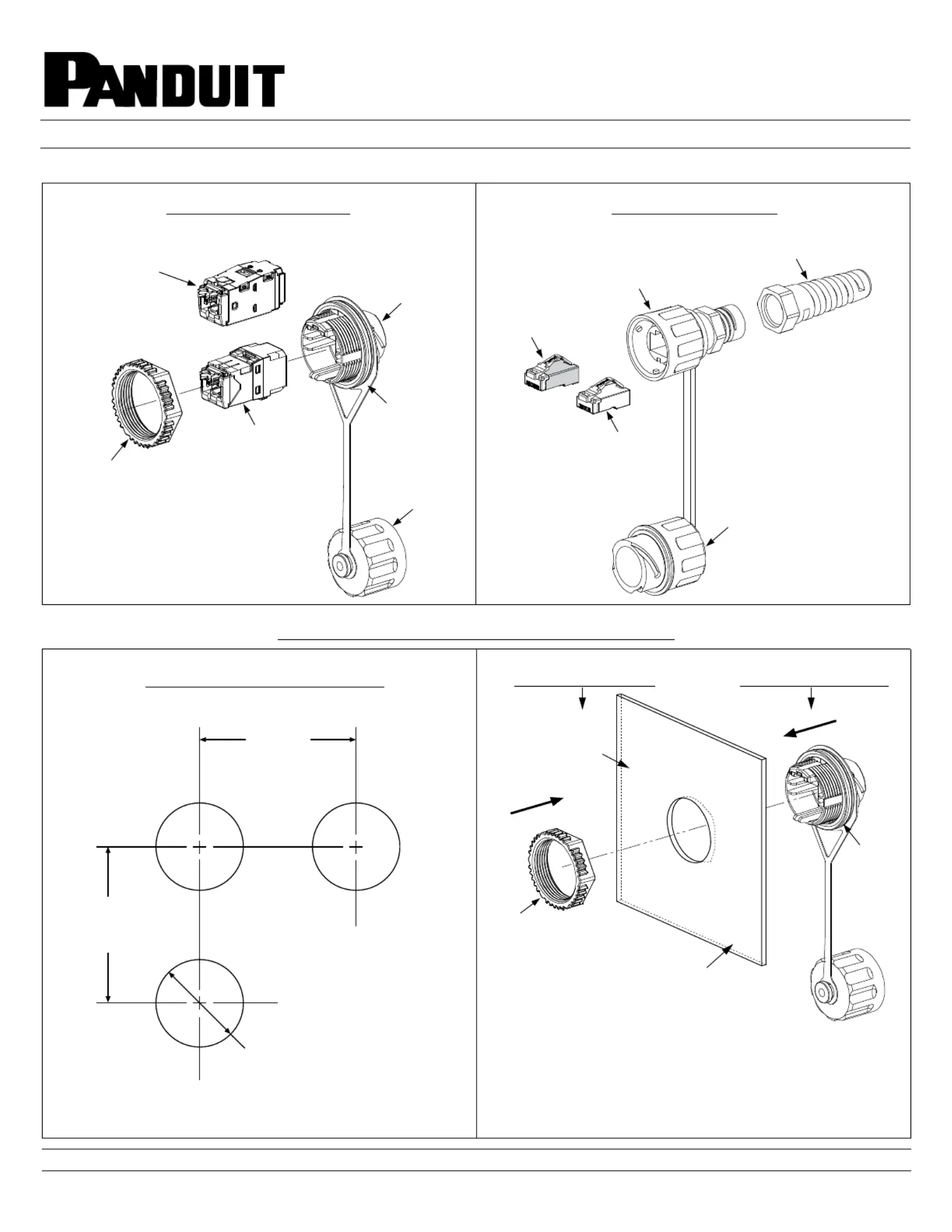

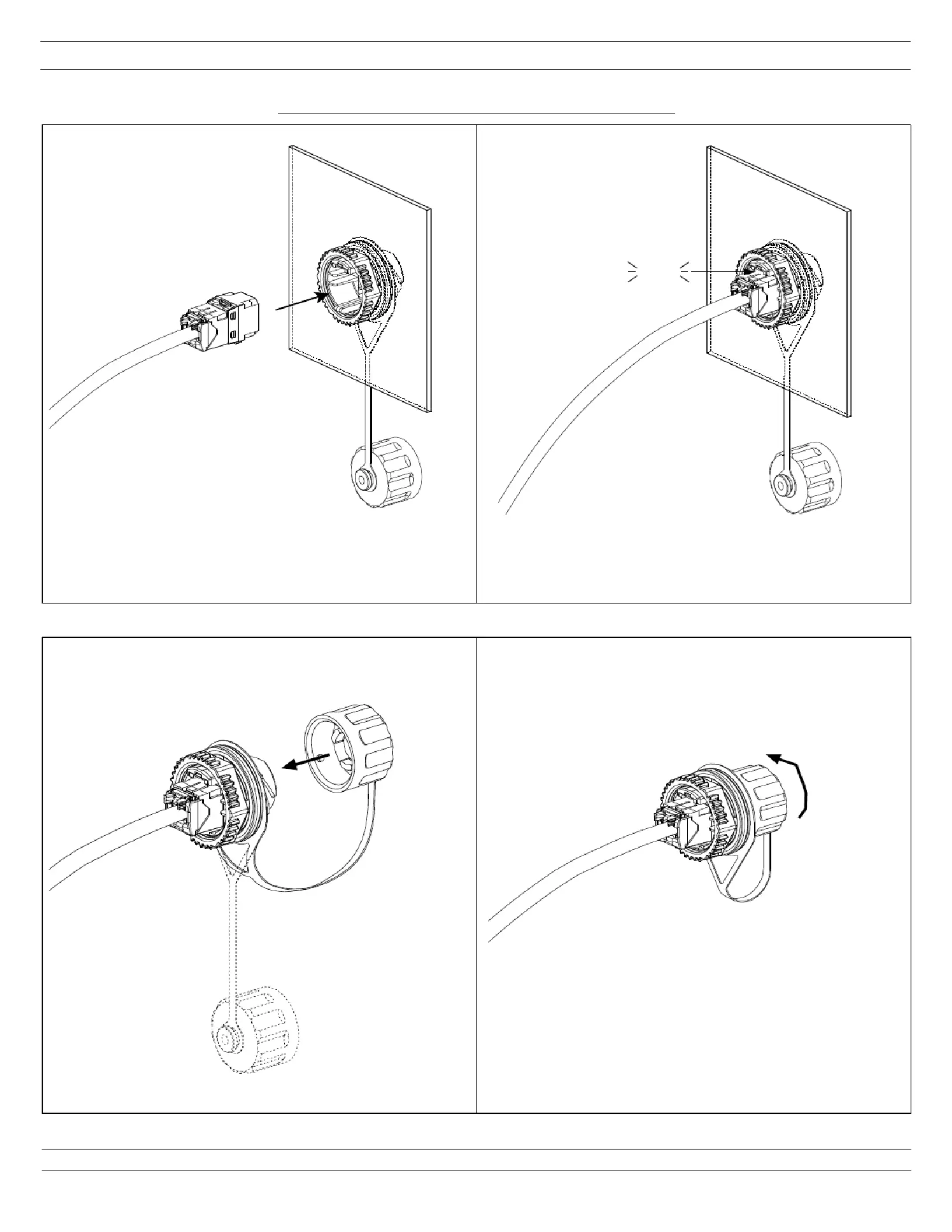

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

PN367E

Page 1 of 4

IAEBH5E / IAEBH6 / IAEBH6X / IAEBH5ES / IAEBH6S/

Shielded

Bulkhead w/

Nut

(For IAEBH5ES,

(For IAEBH5E,

UTP

Face Seal

Tether

Industrial Jack

Flex Tail

Shielded

(For MPSI588T)

(For MPI588T)

UTP

Plug Holder

Tether w/ Cap

(Optional)

Industrial Plug

MPSI588T / MPI588T

IAEBH6

w/ Cap

IAEBH6S,

Bulkhead

Seal

IAEBH6XS/ IAEBH (jack module not included)

Jack Module

Modular Plug

and IAEBH6XS)

and IAEBH6X)

IndustrialNet

Bulkhead Connectors

Part Numbers: IAEBH5E, IAEBH5ES, IAEBH6, IAEBH6S, IAEBH,

MPSI588T, MPI588T, IAEBH6XS, IAEBH6X

{not to scale}

Ø 1-13/64"

(30.6mm)

1-7/8"

(47.6mm)

1-7/8"

(47.6mm)

Enclosure Wall

Insert Bulkhead into prepared opening from outside of enclosure.

While holding Bulkhead in place, secure with Nut on inside of

enclosure. Hand turn Nut 4-1/4 to 5 full turns. Be careful not to

tighten to the point the Bulkhead Seal is over compressed and

displaced from the enclosure wall and the Bulkhead.

Note: If using wrench, flats on Nut should be on the outside.

Inside of Enclosure Outside of Enclosure

or Outlet Plate

Min. thickness: 0.035" (20 gauge)

Max. thickness: 0.135" (10 gauge)

Bulkhead

Seal

Nut

Bulkhead Opening Requirements

Installation for Industrial Jack Module

Note: Bulkhead combination must be used on a flat surface of a NEMA 4X Enclosure to maintain rating.

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

PN367E

Page 2 of 4Page 2 of 4

Tethered cap for sealing industrial jack module when

not in use with industrial modular plug.

(Enclosure wall removed from views for clarity)

3 4

Terminate jack module.

See Panduit installation instruction PN403* for UTP jack module

termination instructions and PN366* for shielded jack module.

Properly orient jack module as shown and insert

into bulkhead until it clicks into position.

Click

Installation for Industrial Jack Module

*Denotes revision level of installation instruction.

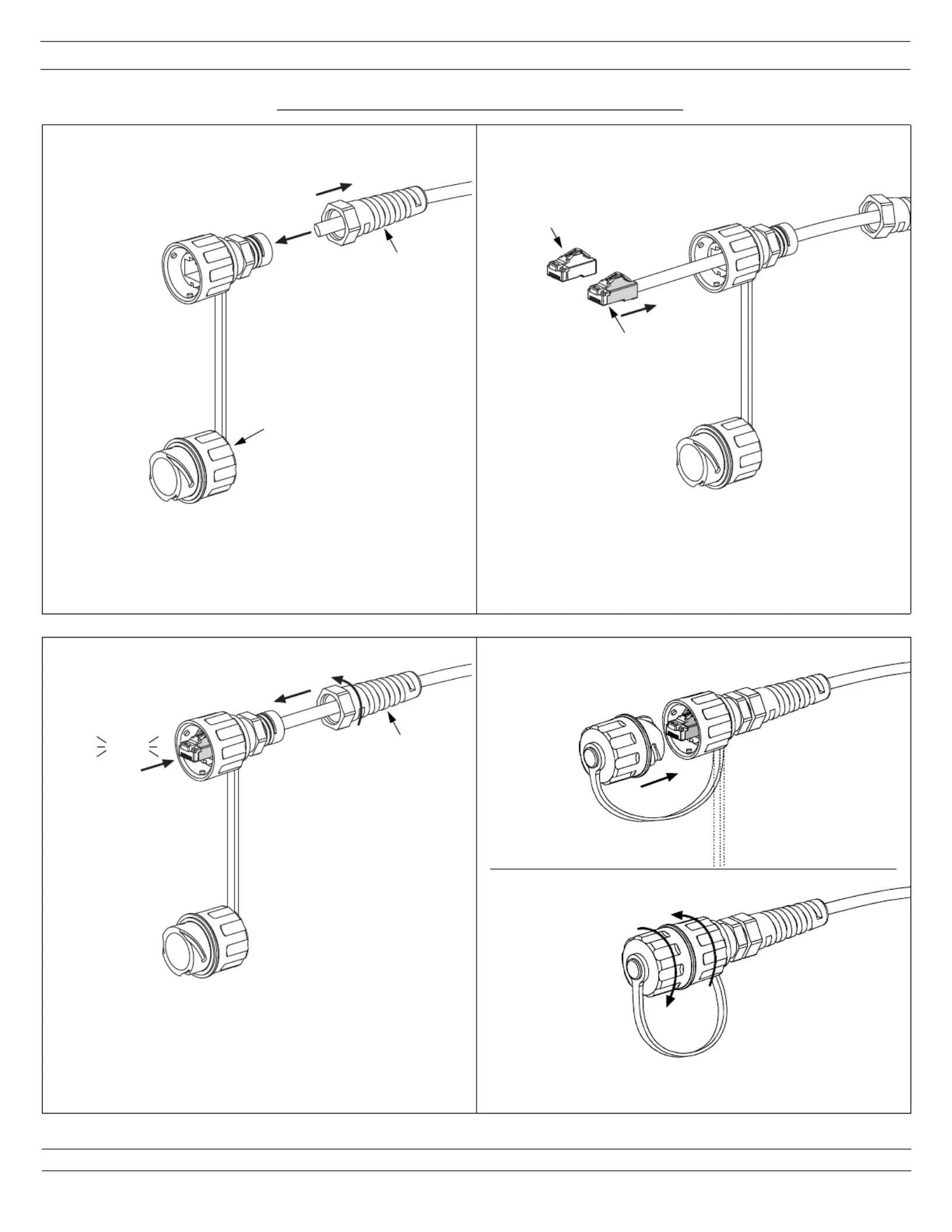

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

PN367E

Page 3 of 4

(OR)

Optional

Flex Tail

Tethered a

Slide flex tail onto cable and route cable through rear

of modular plug housing.

See Panduit installation instruction PN85* for termination

instructions of UTP modular plug, or PN234* for shielded.

Test cord before installing into plug holder. After termination, align

plug latch with notched opening in black plug holder. Depress latch

and press plug module firmly into the plug holder until fully seated.

Shielded

(For MPSI588T)

(For MPI588T)

UTP

1 2

Modular Plug

Installation for Industrial Modular Plug

Click

Flex Tail

Tighten flex tail by hand a total of 3 to 3-1/4" full turns. For IP67

intrusion protection, cable must be circular in shape.

Note: Patch cord performance should be verified before a plug is

pushed back into position, as the plug holder assembly is not

intended to be reused.

Tethered cap option for sealing industrial modular plug

when not in use with industrial jack module.

*Denotes revision level of installation instructions.

Product specificaties

Merk:	Panduit
Categorie:	Niet gecategoriseerd
Model:	IAEBH6XS
Kleur van het product:	Zwart
Breedte:	39.4 mm
Diepte:	42.3 mm
Hoogte:	136.4 mm
Materiaal:	Plastic, Polybutylene terephthalate (PBT)
Aantal per verpakking:	1 stuk(s)
Temperatuur bij opslag:	-20 - 70 °C
Aansluiting(en):	RJ-45
Bedrijfstemperatuur (T-T):	-20 - 70 °C
Geslacht connector:	Vrouwelijk/Vrouwelijk
Kabel standaard:	Cat6a
Kabelafscherming:	S/UTP (STP)
Connector vormfactor:	Recht
