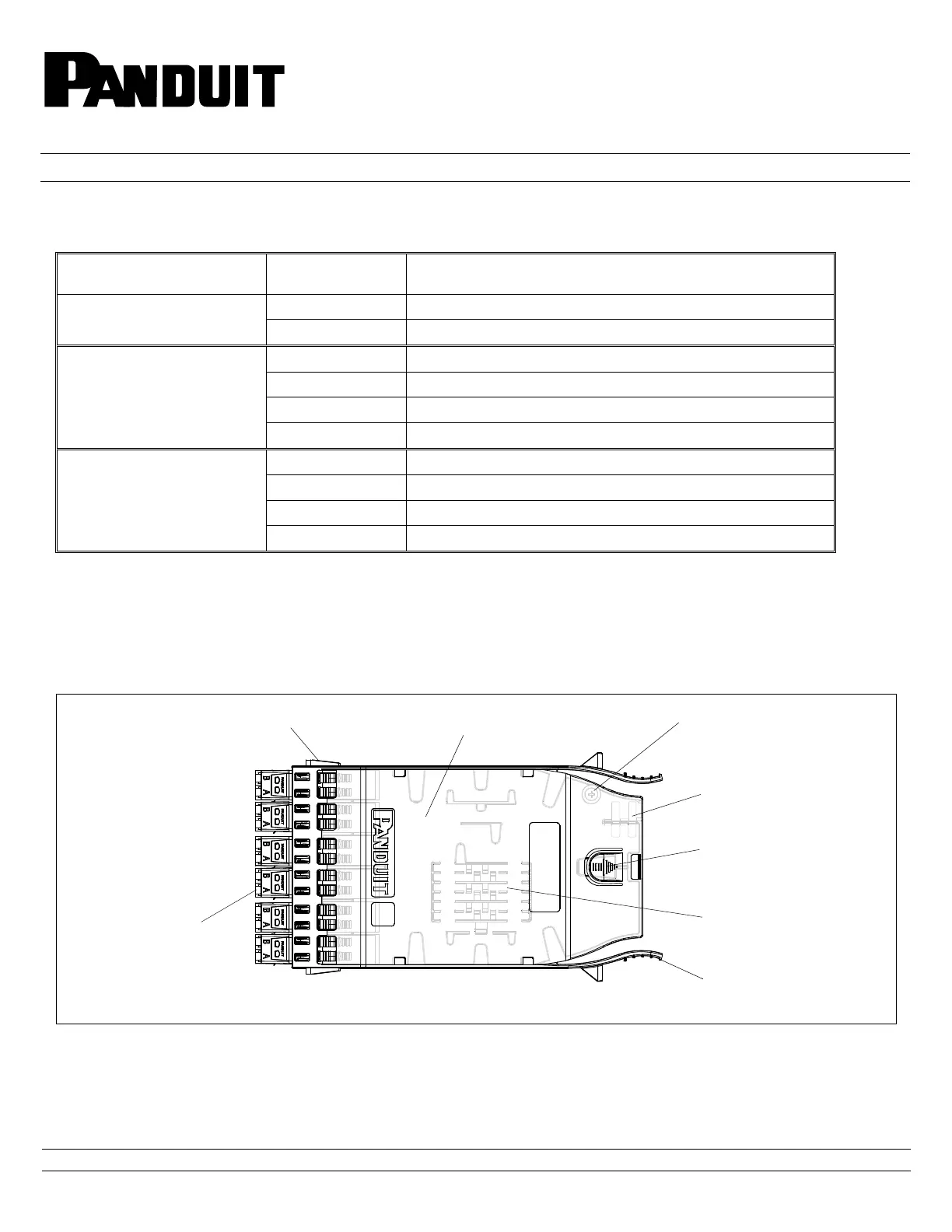

INSTALLATION INSTRUCTIONS
© Panduit Corp. 2015
FS117
Page 1 of 3
HD Flex LC Splice Cassette and
Fiber Adapter Panel (FAP)
Part Numbers: See chart below
Product Family
Cassette Part
Number
Cassette Description
12-Fiber LC Splice/FAP Cassette
(LC pigtails not included)
FHSXN-12-10N FAP (Fiber Adapter Panel) Cassette w/ Aqua Zirconia Adapters
FHS9N-12-10N FAP (Fiber Adapter Panel) Cassette w/ Blue Zirconia Adapters
12-Fiber LC Splice Cassette
(Pre-loaded with Discrete Pigtails)
FHSXO-12-10P 12-Fiber OM3 LC Discrete Pigtails; Optimized IL
FHSZO-12-10P 12-Fiber OM4 LC Discrete Pigtails; Optimized IL
FHSZA-12-10P 12-Fiber OM4 LC Discrete Pigtails; Ultra IL
FHS9N-12-10P 12-Fiber OS2 LC Discrete Pigtails; Standard IL
12-Fiber LC Splice Cassette
(Pre-loaded with Ribbon Pigtail)
FHSXO-12-10R 12-Fiber OM3 LC Ribbonized Pigtail; Optimized IL
FHSZO-12-10R 12-Fiber OM4 LC Ribbonized Pigtail; Optimized IL
FHSZA-12-10R 12-Fiber OM4 LC Ribbonized Pigtail; Ultra IL
FHS9N-12-10R 12-Fiber OS2 LC Ribbonized Pigtail; Standard IL
General Information and Contents
1.HD Flex LC Fiber Adapter Panel (FAP)
•Configured to accommodate pre-terminated cable assemblies.
2.HD Flex LC Preconfigured Splice Cassette – Available in 2 Configurations:
•Configured with 12 Discrete Pigtails, (12) 40mm Discrete Splice Sleeves, and 2 Pan-Ty Cable Ties.
•Configured with a 12-Fiber Ribbon Pigtail, (1) 40mm Ribbon Splice Sleeve, and 2 Pan-Ty Cable Ties.
WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. MAINTAIN DUST CAPS ON UNMATED
CONNECTORS.
CAUTION:
Fiber optic cable is sensitive to excessive pulling, bending, and crushing forces. Consult the manufacturer’s cable specification sheet
for the specific cable in use.
Part Numbers
Cassette baseCassette cover
Screw – Aramid yarn
strain relief
Cable tie strain relief
Cover removal latch
Splice sleeve holders
(12 discrete / 1 ribbon)
Cassette release latches
6 Duplex shuttered
LC Adapters
Figure 1
(Fibers not shown)
For complete HD Flex Fiber Cassette Enclosure installation instructions, visit www.panduit.com and search FS111*.
Product specificaties
| Merk: | Panduit |
| Categorie: | Niet gecategoriseerd |
| Model: | FHSXN-12-10N |
| Kleur van het product: | Zwart |
| Duurzaamheidscertificaten: | RoHS |
| Aantal per verpakking: | 1 stuk(s) |
| Aantal connectors: | 6 |
| Draad modus structuur: | Multimode |
| Duplex: | Ja |
| Aansluiting type: | LC |
