For Technical Support: www.panduit.com/resources/install_maintain.asp

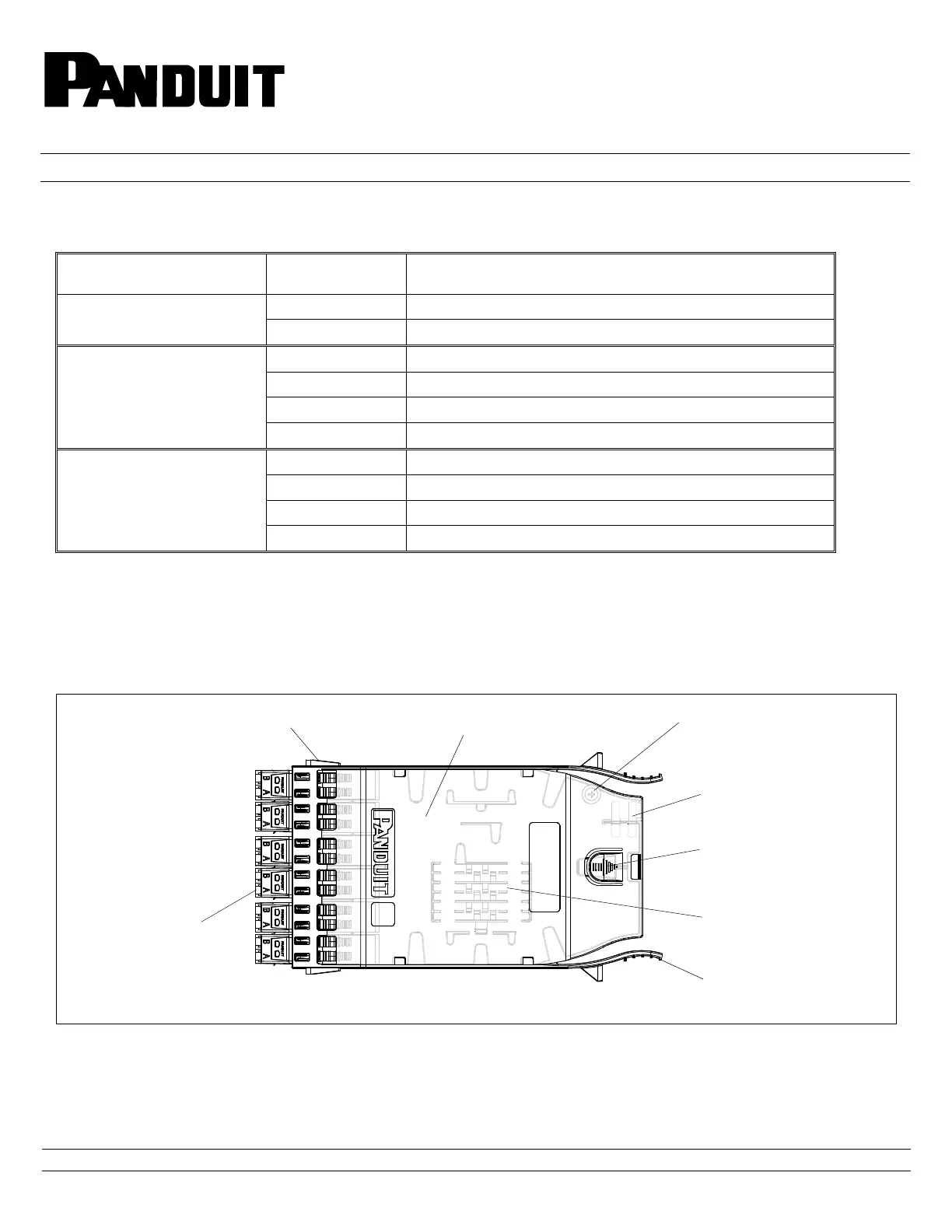

INSTALLATION INSTRUCTIONS

© Panduit Corp. 2015

FS117

Page 1 of 3

HD Flex LC Splice Cassette and

Fiber Adapter Panel (FAP)

Part Numbers: See chart below

Product Family

Cassette Part

Number

Cassette Description

12-Fiber LC Splice/FAP Cassette

(LC pigtails not included)

FHSXN-12-10N FAP (Fiber Adapter Panel) Cassette w/ Aqua Zirconia Adapters

FHS9N-12-10N FAP (Fiber Adapter Panel) Cassette w/ Blue Zirconia Adapters

12-Fiber LC Splice Cassette

(Pre-loaded with Discrete Pigtails)

FHSXO-12-10P 12-Fiber OM3 LC Discrete Pigtails; Optimized IL

FHSZO-12-10P 12-Fiber OM4 LC Discrete Pigtails; Optimized IL

FHSZA-12-10P 12-Fiber OM4 LC Discrete Pigtails; Ultra IL

FHS9N-12-10P 12-Fiber OS2 LC Discrete Pigtails; Standard IL

12-Fiber LC Splice Cassette

(Pre-loaded with Ribbon Pigtail)

FHSXO-12-10R 12-Fiber OM3 LC Ribbonized Pigtail; Optimized IL

FHSZO-12-10R 12-Fiber OM4 LC Ribbonized Pigtail; Optimized IL

FHSZA-12-10R 12-Fiber OM4 LC Ribbonized Pigtail; Ultra IL

FHS9N-12-10R 12-Fiber OS2 LC Ribbonized Pigtail; Standard IL



General Information and Contents

1.HD Flex LC Fiber Adapter Panel (FAP)

•Configured to accommodate pre-terminated cable assemblies.

2.HD Flex LC Preconfigured Splice Cassette – Available in 2 Configurations:

•Configured with 12 Discrete Pigtails, (12) 40mm Discrete Splice Sleeves, and 2 Pan-Ty Cable Ties.

•Configured with a 12-Fiber Ribbon Pigtail, (1) 40mm Ribbon Splice Sleeve, and 2 Pan-Ty Cable Ties.

WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. MAINTAIN DUST CAPS ON UNMATED

CONNECTORS.

CAUTION:

Fiber optic cable is sensitive to excessive pulling, bending, and crushing forces. Consult the manufacturer’s cable specification sheet

for the specific cable in use.

Part Numbers

Cassette baseCassette cover

Screw – Aramid yarn

strain relief

Cable tie strain relief

Cover removal latch

Splice sleeve holders

(12 discrete / 1 ribbon)

Cassette release latches

6 Duplex shuttered

LC Adapters

Figure 1

(Fibers not shown)

For complete HD Flex Fiber Cassette Enclosure installation instructions, visit www.panduit.com and search FS111*.
