For Cutting Panduct

Plastic Wiring Duct

or Cover

and Heat Shrink Tubing

Page: 1of 1

DCT

WARNING:

SAFETY GLASSES MUST BE

WORN AT ALL TIMES WHEN

USING THE DCT TOOL.

USE CARE WHEN HANDLING TOOL;

BLADE IS SHARP!

CAUTION:

This precision tool has been engineered and designed for use with PanductPlastic Wiring

Duct or Cover, and Heat Shrink Tubing. It is not intended for use on any other products or

materials.

OPERATION

1. Determine (mark) the cut location as required.

2. Release the handle latch at the end of the handles. The handle spring allows the handles to be

normally open.

3. Position the cutting blade at the marked location and squeeze the handles together until the material is cut

through, and the blade bottoms out in the blade insert. If the cut is not long enough, also cut from the

opposite side, across from the first cut.

4. Latch the tool handles in the locked position when the tool is not being used and during transport.

REPLACEMENT PARTS

DCT-BLDBlade Replacement Kit (includes replacement blade and insert)

DCT-RIReplacement Insert (includes insert only)

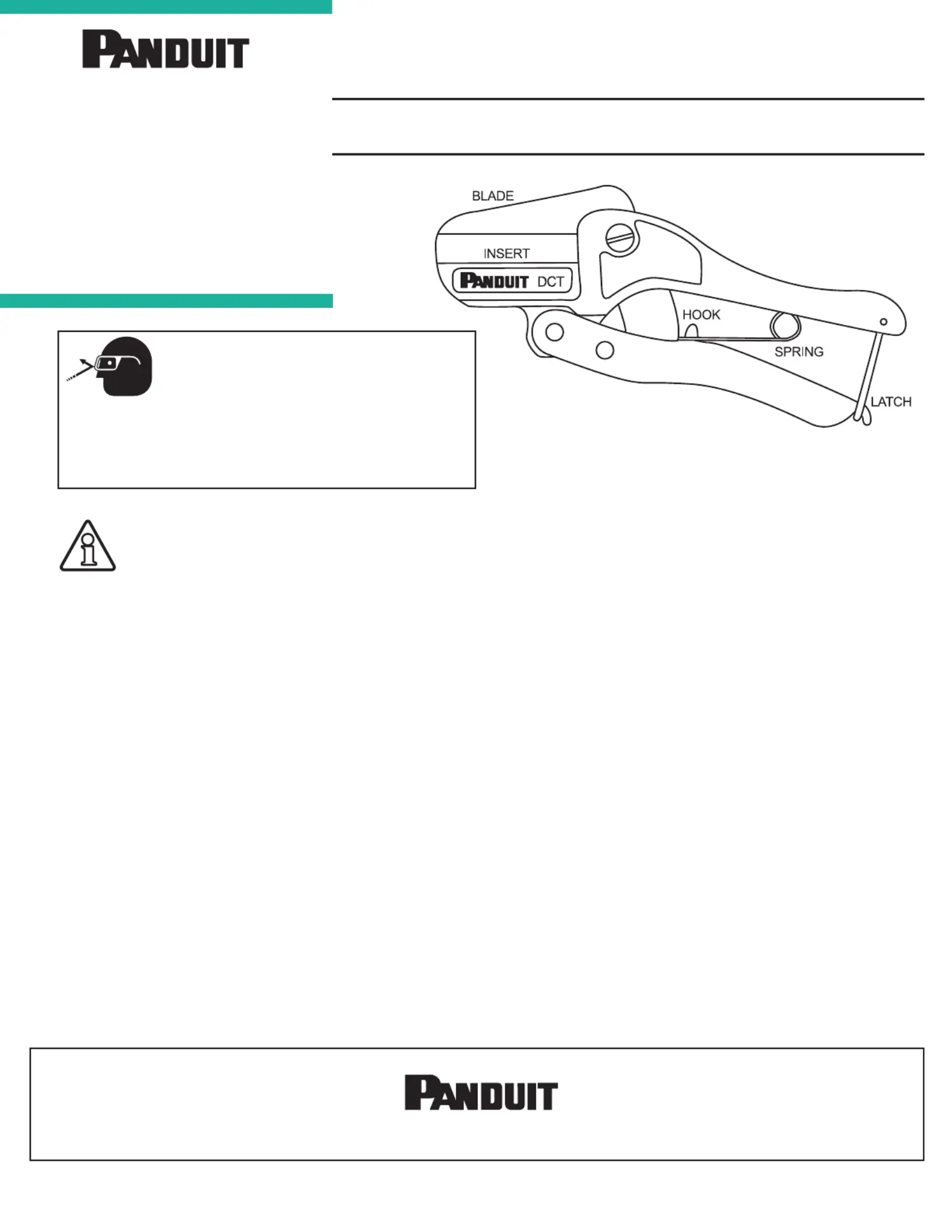

Blade Replacement:Unhook spring from hook on blade. Using a wide blade standard screwdriver and 10mm

hex wrench, remove nut and screw. Slide blade upward, out of tool, and replace with new

blade. Fasten using existing screw and nut. Remember to hook spring onto hook on

blade.

Insert Replacement:Carefully pry out existing insert. Apply a small amount of Loctite Black Max (or

equivalent) to bottom of replacement insert. Place insert into lower jaw of tool

with the slotted side up.

DUCT CUTTING TOOL

OPERATING INSTRUCTIONS

Technical Support :

1-800-777-3300

Email:

[email protected]

PA22193A01

REV.: 07 6-2018

www.panduit.com

© Panduit Corp. 2018
