© Panduit Corp. 2018

Page: 1of 2

E-mail:

[email protected]

For Technical Support:

1-800-777-3300

CT-1123 and CT-1104

PA25121A01

R

EV: 03 2-2018

CONTROLLED CYCLE FERRULE CRIMPING TOOLS

OPERATION, INSPECTION and MAINTENANCE INSTRUCTIONS

1. With the handles in the open position, insert the ferrule

into the crimp pocket. Make sure that the ferrule is

inserted fully into the crimp die (see Figure 2). Close

handles until dies just slightly grip ferrule.

2. Insert the stripped wire into the ferrule until the wire

stops. Refer to ferrule packaging for wire strip length.

3. Crimp the ferrule by closing the handles until the

controlled cycle mechanism releases. Upon release,

the handles will open automatically and the crimped

ferrule can be removed.

NOTE:Crimp entire uninsulated ferrule length. This may

require additional crimps.

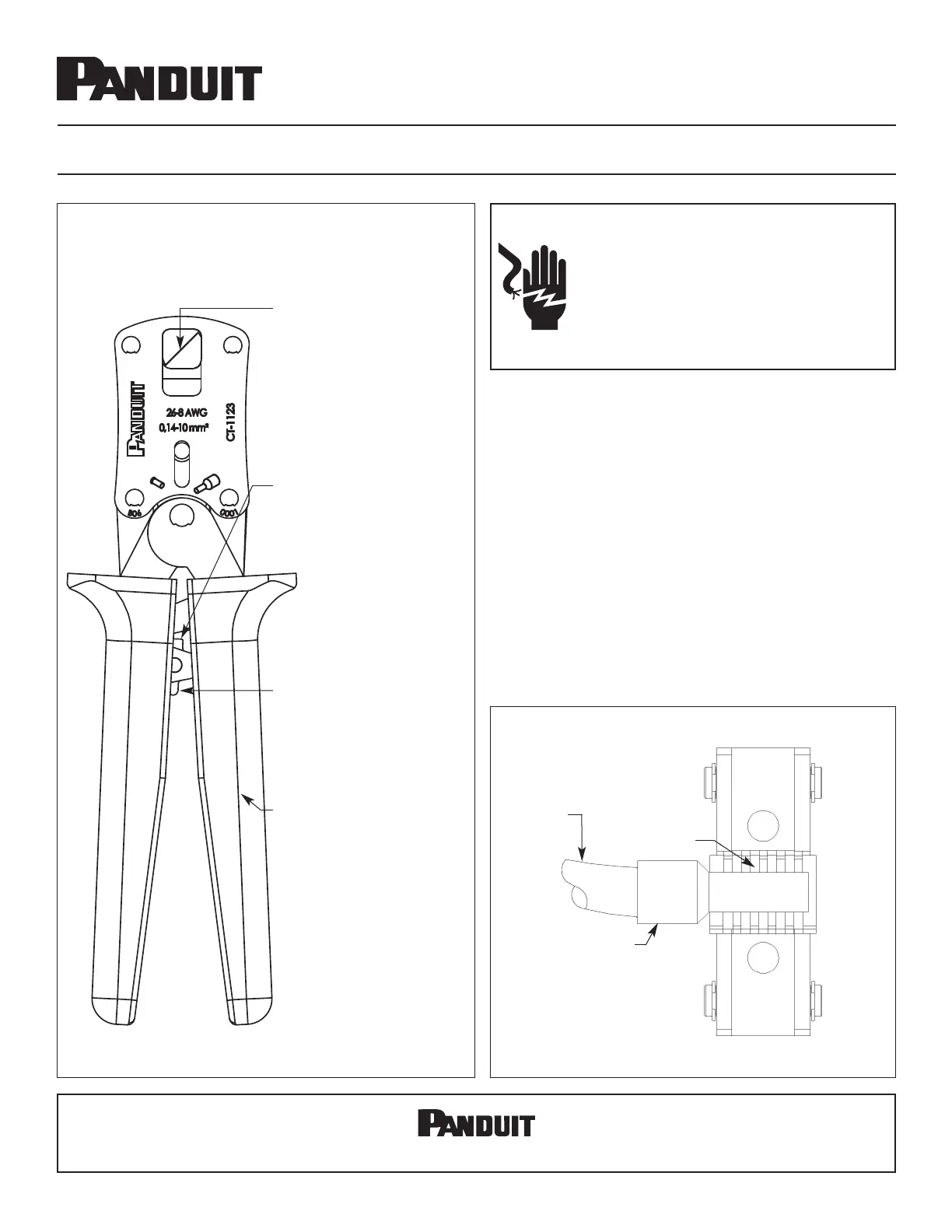

CT-1123 and CT-1104 TOOLS

Cushioned handle grips

Self-adjusting crimp die

for Insulated and non-

insulated ferrules.

Ferrule size dependent on

wire gage.

Refer to ferrule packaging

for proper ferrule and wire

combinations.

Controlled cycle

mechanism prevents tool

from opening before

crimp cycle is

complete.

Fig. 1

Fig. 2

Stripped

Wire

Crimp Die

Ferrule

CAUTION:

Verify power is “OFF” before working on

wiring with these tools.

The plastic grips are for the user’s

comfort, and are not intended

to insulate against electrical shock while

working on live electrical circuits.

CT-1123 Tool

(CT-1104 Tool not shown)

Manual release lever,

push forward in the event

that controlled cycle

mechanism must be

released.

www.panduit.com
