Pagina 1/7
GX-M SERIES
• Wide product range
Types: DC 3-wire shielded type
DC 3-wire non-shielded type
DC 2-wire standard type
DC 2-wire long range type
Size: M8, M12, M18, M30
Connector: 2 m cable length type
M12 plug-in connector type
M12 pigtaild type (DC 2-wire
M8 type only, On sale soon)
• Strong resistance IP68 (GX-M8 : IP67)□
Features
ORDER GUIDE
Type Appearance Sensing range (Note 1,2)
Model No.
Output
operation
NPN output PNP output
Shielded
M8
Max. operation distance: 1.5 mm 0.06 in
(Stable sensing range 0 to 1.2 mm )0.05 in
GX-M8A GX-M8A-P
Normally open
GX-M8B GX-M8B-P
Normally closed
M12
Max. operation distance: 2 mm 0.08 in
(Stable sensing range 0 to 1.6 mm )0.06 in
GX-M12A GX-M12A-P
Normally open
GX-M12B GX-M12B-P
Normally closed
M18
Max. operation distance: 5 mm 0.20 in
(Stable sensing range 0 to 4 mm )0.16 in
GX-M18A GX-M18A-P
Normally open
GX-M18B GX-M18B-P
Normally closed
M30
Max. operation distance: 10 mm 0.39 in
(Stable sensing range 0 to 8 mm )0.32 in
GX-M30A GX-M30A-P
Normally open
GX-M30B GX-M30B-P
Normally closed
Non-shielded
M12
Max. operation distance: 7 mm 0.28 in
(Stable sensing range 0 to 5.6 mm )0.22 in
GX-MK12A GX-MK12A-P
Normally open
GX-MK12B GX-MK12B-P
Normally closed
M18
Max. operation distance: 12 mm 0.47 in
(Stable sensing range 0 to 9.6 mm )0.38 in
GX-MK18A GX-MK18A-P
Normally open
GX-MK18B GX-MK18B-P
Normally closed
M30
Max. operation distance: 22 mm 0.87 in
(Stable sensing range 0 to 17.6 mm )0.69 in
GX-MK30A GX-MK30A-P
Normally open
GX-MK30B GX-MK30B-P
Normally closed
Cylindrical Inductive Proximity Sensor
Notes: 1) It is the value in state where the circumference of a detection side has a metal object.
2) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.
The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient
temperature drift and/or supply voltage uctuation.
DC 3-wire type (2 m cable length type)
Ex.) GX-M12□
Ex.) GX-MK12□
Listing
(2 m cable length type only)
Conformingto
EMCDirective
7
M12 plug-in connector type is also available.
When ordering this type, “ ” for the M12 plug-in connector type to the model No.-Z
(e.g.) M12 plug-in connector type of is “ ”.GX-M8A-P GX-M8A-P-Z
M12 pigtailed type is also available.
When ordering this type, “ ” for the M12 pigtailed type to the model No.-J
(e.g.) M12 pigtailed type of is “ ”.GX-M8A-U GX-M8A-U-J
M12 plug-in connector type (except for GX-M8□-U and GX-ML8□-U)
M12 pigtailed type (for GX-M8□-U and GX-ML8□-U only, On sale soon)
Notes: 1) It is the value in state where the circumference of a detection side has a metal object.
2) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.
The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient
temperature drift and/or supply voltage uctuation.

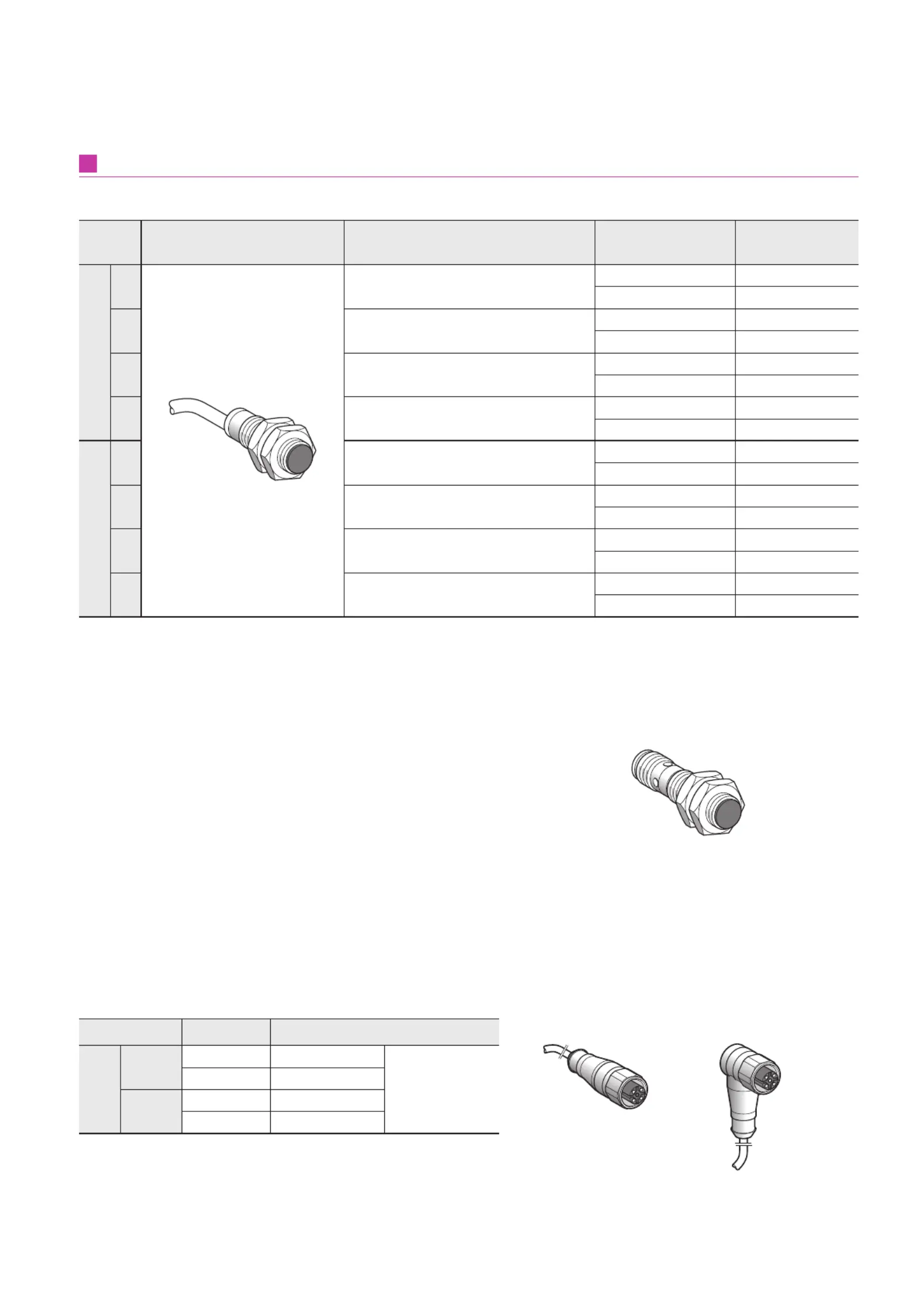

ORDER GUIDE
Type Appearance Sensing range (Note 1,2) Model No. Output operation
Standard
M8
Max. operation distance: 1.5 mm 0.06 in
(Stable sensing range 0 to 1.2 mm )0.05 in
GX-M8A-U
Normally open
GX-M8B-U
Normally closed
M12
Max. operation distance: 2 mm 0.08 in
(Stable sensing range 0 to 1.6 mm )0.06 in
GX-M12A-U
Normally open
GX-M12B-U
Normally closed
M18
Max. operation distance: 5 mm 0.20 in
(Stable sensing range 0 to 4 mm )0.16 in
GX-M18A-U
Normally open
GX-M18B-U
Normally closed
M30
Max. operation distance: 10 mm 0.39 in
(Stable sensing range 0 to 8 mm )0.32 in
GX-M30A-U
Normally open
GX-M30B-U
Normally closed
Long range
M8
Max. operation distance: 2.5 mm 0.10 in
(Stable sensing range 0 to 2 mm )0.08 in
GX-ML8A-U
Normally open
GX-ML8B-U
Normally closed
M12
Max. operation distance: 4 mm 0.16 in
(Stable sensing range 0 to 3.2 mm )0.13 in
GX-ML12A-U
Normally open
GX-ML12B-U
Normally closed
M18
Max. operation distance: 8 mm 0.32 in
(Stable sensing range 0 to 6.4 mm )0.25 in
GX-ML18A-U
Normally open
GX-ML18B-U
Normally closed
M30
Max. operation distance: 15 mm 0.59 in
(Stable sensing range 0 to 12 mm )0.47 in
GX-ML30A-U
Normally open
GX-ML30B-U
Normally closed
Cylindrical Inductive Proximity Sensor
GX-M SERIES
DC 2-wire type (2 m cable length type)
Ex.) GX-M12□-U
Mating cable
• Straight type • Elbow type
Mating cable
(2 cables are required for the thru-beam type.)
Type Model No. Description
For M12 plug-in
connector type
Straight
CN-24C-C2
Length: 2 m 6.56 ft
Clamping ring :
ø14mm 0.55 in
Cable outer :
ø5.3mm 0.21 in
CN-24C-C5
Length: 5 m 16.40 ft
Elbow
CN-24CL-C2
Length: 2 m 6.56 ft
CN-24CL-C5
Length: 5 m 16.40 ft
8
DC 3-wire type
Type
Shielded type Non-shielded type
Model No.
Normally open
GX-M8A GX-M12A GX-18A GX-M30A□ □ □ □
GX-MK12A
□
GX-MK18A
□
GX-MK30A
□
Item
Normally closed
GX-M8B GX-M12B□ □
GX-
18B□
GX-
M30B□
GX-MK12B
□
GX-MK18B
□
GX-MK30B
□
Max. operation distance (Note 2,3)
1.5 mm ±10 % 2 mm ±10 % 5 mm ±10 % 10 mm ±10 % 7 mm ±10 % 12 mm ±10 % 22 mm ±10 %0.06 in 0.08 in 0.20 in 0.39 in 0.28 in 0.47 in 0.87 in
Stable sensing range (Note 2,3)
0 to 1.2 mm
0 to 0.05 in
0 to 1.6 mm
0 to 0.06 in
0 to 4 mm
0 to 0.16 in
0 to 8 mm
0 to 0.32 in
0 to 5.6 mm
0 to 0.22 in
0 to 9.6 mm
0 to 0.38 in
0 to 17.6 mm
0 to 0.69 in
Standard sensing object
Iron sheet 8 × 8 × t 1 mm
0.32 × 0.32 × t 0.04 in
Iron sheet 12 × 12 × t 1 mm
0.47 × 0.47 × t 0.04 in
Iron sheet 18 × 18 × t 1mm
0.71 × 0.71 × t 0.04 in
Iron sheet 30 × 30 × t 1 mm
1.18 × 1.18 × t 0.04 in
Iron sheet 24 × 24 × t 1 mm
0.94 × 0.94 × t 0.04 in
Iron sheet 24 × 24 × t 1 mm
0.94 ×0.94 × t 0.04 in
Iron sheet 45 × 45 × t 1 mm
1.77 × 1.77 × t 0.04 in
Hysteresis
(Note 2)
15 % or less of operation distance (with standard sensing object)
Repeatability
(Note 2)
Along sensing axis: 5 % or less of operation distance
Supply voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Current consumption (Note 4) 10 mA or less
Output
<NPN output type>
NPN open-collector transistor
• Maximum sink current 200 mA
• Applied voltage: 24 V DC or less (between output and 0 V)
• Residual voltage 2 V or less
<PNP output type>
PNP open-collector transistor
• Maximum source current 200 mA
• Applied voltage: 24 V DC or less (between output and + V)
• Residual voltage 2 V or less
Utilization category
DC-12 or DC-13
Short-circuit protection
Incorporated
Max. response frequency 5 kHz 5 kHz 2 kHz 1 kHz 2.5 kHz 1 kHz 0.5 kHz
Operation indicator Yellow LED (lights up when the output is ON)
Environmental resistance
Pollution degree 3 (industrial enviroment)
Protection IP67 (IEC) IP69K (DIN), IP68 (IEC) (2 m cable length type only) , IP67 (IEC) (M12 plug-in connector type only)
Ambient temperature –25 to +70 °C , Storage: –40 to +85 °C –13 to +158 °F –40 to +185 °F
Ambient humidity 50 % RH or less (at +70 °C )+158 °F
EMC EN 60947-5-2
Voltage withstandability 500 V AC for one min. between all supply terminals connected together and enclosure
Vibration resistance 10 to 55 Hz frequency, 0.5 mm amplitude in X, Y and Z directions for 1.5 hours each0.02 in
Shock resistance 294 m/s
2
acceleration (30 G approx.) in X, Y and Z directions for three times each
Sensing range variation
(Note 2)
Within ±10 % uctuation of sensing range at +23 °C +73 °F and rated voltage in the range of
allowable temperature and supply voltage
Material Enclosure: Brass (Nickel plated), Sensing part: PPS
Cable (except for M12 plug-in connector type)
0.44 mm
2
(0.15 mm
2
for ) 3-core cabtyre cable, 2 m longGX-M8□ 6.56 ft
Cable extension Extension up to total 10 m is possible with 0.34 mm32.80 ft
2
, or more, cable.
Net weight
(Note 5)
2 m cable length type
40 g approx. 70 g approx. 90 g approx. 150 g approx. 75 g approx. 100 g approx. 180 g approx.
M12 plug-in connector type
15 g approx. 20 g approx. 45 g approx. 110 g approx. 25 g approx. 55 g approx. 140 g approx.
Accessories
Nut: 2 pcs.
Notes: 1) Where measurement conditions have not been specied precisely, the conditions used were an ambient temperature of +23 °C +73.4 °F.
2) It is the value in state where the circumference of a detection side has a metal object.
3) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.
The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient
temperature drift and/or supply voltage uctuation.
4) It is the leakage current when the output is in the OFF state.
5) The weight includes the weight of two nuts.
SPECIFICATIONS
Cylindrical Inductive Proximity Sensor GX-M SERIES
9
