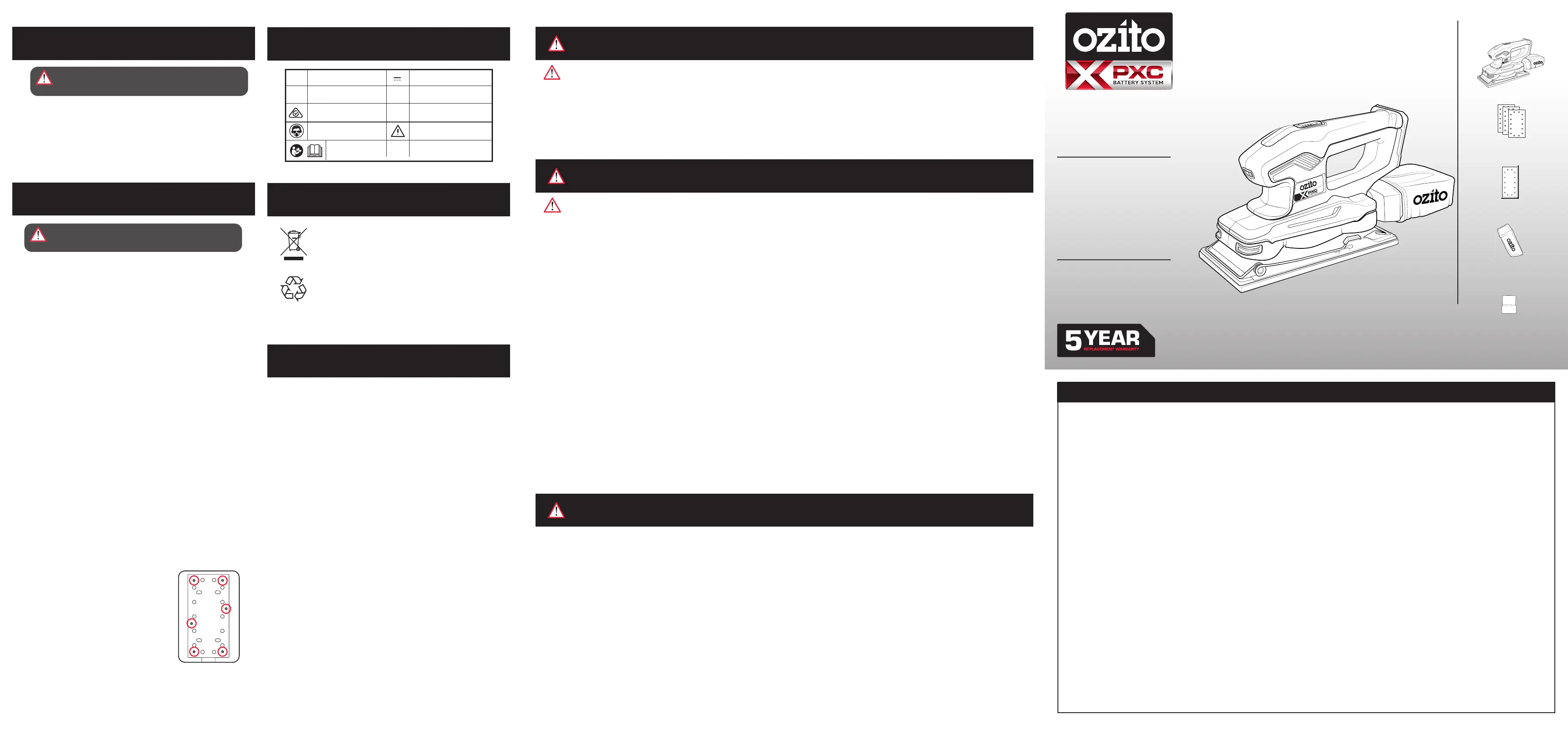

STANDARD EQUIPMENT

1/2 SHEET

SANDER

PXHSS-018

INSTRUCTION MANUAL

SPECIFICATIONS

Input: 18V

No Load Speed: 7,000 - 11,000/min

Oscillating Speed: 14,000 - 22,000/min

Sand Paper Size: 230 x 115mm (Hook & Loop)

or 280 x 115mm (Clamp)

Paper Fitment: Clamp or Hook & Loop

Adaptor Size: Ø35mm

Weight: 1.54kg

ozito.com.au

0924

Cordless 1/2 Sheet Sander

3 x Sanding Sheets (60 Grit,

80 Grit, 120 Grit)

MAINTENANCE

Power tools that are no longer usable should not be disposed of

with household waste but in an environmentally friendly way.

Please recycle where facilities exist. Check with your local council

authority for recycling advice.

Recycling packaging reduces the need for landll and raw

materials. Reuse of recycled material decreases pollution in the

environment. Please recycle packaging where facilities exist.

Check with your local council authority for recycling advice.

CARING FOR THE ENVIRONMENT

SPARE PARTS

Spare parts can be ordered from the Special Orders

Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here,

visit www.ozito.com.au or contact Ozito Customer

Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [email protected]

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU

MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS

WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO

RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE

OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

WARRANTY

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL

NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER

SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND

ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE

WARRANTY POLICY OR PROCEDURE.

OZITO 25 Fox Drive, Dandenong South, VIC 3175, Australia.

The benets provided under this warranty are in addition to other rights and

remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to

a replacement or refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to have the goods

repaired or replaced if the goods fail to be of acceptable quality and the failure

does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this

warranty, however, where you have suffered any additional direct loss as a result of

a defective product you may be able to claim such expenses by contacting our

customer service helpline above.

WARNING

The following actions will result in the warranty being

void.

• If the tool has been operated on a supply voltage other than that specied

on the tool.

• If the tool shows signs of damage or defects caused by or resulting from

abuse, accidents or alterations.

• Failure to perform maintenance as set out within the instruction manual.

• If the tool is disassembled or tampered with in any way.

5 YEAR REPLACEMENT WARRANTY

Your Product is guaranteed for a period of 60 months from the original date of

purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it

will be replaced in accordance with the terms of this warranty. Lithium Ion

batteries and chargers are covered by a 36 month

warranty and are excluded from the warranty extension. Warranty excludes

consumable parts.

Dust Bag

Paper Punch Plate

Dust Extraction Adapter

WARNING! BEFORE CLEANING OR CARRYING OUT

ANY MAINTENANCE PROCEDURE, ENSURE THAT

THE BATTERY HAS BEEN REMOVED.

Cleaning

• Keep the ventilation slots of the tool clean at all times to ensure efcient

operation.

• After each use, blow air through the tool housing to ensure it is free from

all dust, dirt, etc. Build up of dust or dirt particles may cause the tool to

overheat and shorten the life of the tool.

• If the housing of the tool requires cleaning, do not use solvents. Use of a

cloth only is recommended.

• Never allow any liquid to get inside the tool, never immerse any part of

the tool into liquid.

Carbon Brushes

When the carbon brushes wear out, the tool will spark and/or stop.

Discontinue use as soon as this happens. They should be replaced prior

to recommencing use. Carbon brushes are a wearing component of the

tool therefore not covered under warranty. Continuing to use when carbon

brushes need to be replaced may cause permanent damage to the tool. Take

the tool to an electrician or a power tool repairer for a quick and low cost

replacement. Always replace both carbon brushes at the same time.

Note: A small amount of sparking may be visible through the housing

vents. This is normal and does not indicate a problem.

Replacing The Hook & Loop Sanding Pad

After considerable use, the hook and loop backing pad surface will become

worn, and must be replaced when it no longer offers a rm grip. Contact

Ozito Customer Service for replacement parts.

1. To replace, remove the six Philips head screws on

the base of the unit.

2. Place the new backing pad on the tool and replace

the screws to secure it.

Storage

When not in use, the tool should be stored in a dry, frost free location, keep

out of children’s reach.

Note: Ozito Industries will not be responsible for any damage or injuries

caused by repair of the tool by an unauthorised person or by

mishandling.

WARNING! ENSURE THE TOOL IS SWITCHED

OFF AND THE BATTERY IS REMOVED BEFORE

PERFORMING ANY OF THE FOLLOWING TASKS.

Short Battery Runtime

Ensure the battery is properly charge. It will take 4-5 charging cycles before

the battery reaches optimum charge and run time.

Sanding Disc Not Sanding

If the sanding disc is no longer sanding, please change the sanding disc.

TROUBLESHOOTING

DESCRIPTION OF SYMBOLS

Warning

Regulatory Compliance Mark

(RCM)

Wear eye, ear & breathing

protection

V

Volts

mm

Millimetre

Direct Current

/min

Per minute

No Load Speed

Read Instruction Manual

⁰

n

GENERAL POWER TOOL SAFETY WARNINGS

1/2 SHEET SANDER SAFETY WARNINGS

ELECTRICAL SAFETY

WARNING!Read all safety warnings, instructions, illustrations and specifications provided with

this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/

or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated

(cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,

gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose

control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter

plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of

electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk

of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep

cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk

of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)

protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use

a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of

inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust

mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce

personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power

source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on

the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached

to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the

power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving

parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are

connected and properly used. Use of dust collection can reduce dust-related hazards.

h)Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore

tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool

will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from

the power tool before making any adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the

power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of

untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage

of parts and any other condition that may affect the power tool’s operation. If damaged, have the

power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into

account the working conditions and the work to be performed. Use of the power tool for operations

different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and

grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of

battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may

create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys,

nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally

occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the

battery may cause irritation or burns.

e)Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may

exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature

above 130 °C may cause explosion.

g)Follow all charging instructions and do not charge the battery pack or tool outside the temperature

range specified in the instructions. Charging improperly or at temperatures outside the specified range

may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This

will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the

manufacturer or authorized service providers.

WARNING! When using electric tools basic safety precautions should always be

followed to reduce the risk of fire, electric shock and personal injury.

• Read the whole manual carefully and make sure you know how to switch the tool off in

an emergency, before operating the tool. Save these instructions and other documents supplied

with this tool for future reference.

• -This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance is compatible and only to be used with all batteries & chargers from the Ozito

PXC range. Refer to the PXC battery and charger manuals for information regarding charging,

use and storage.

WARNING! Always remove the battery from the tool:

• when the batteries are to be charged,

• when the tool is left unattended,

• when the tool is being checked, cleaned, or having maintenance work done,

• when the tool is to be stored, or if the tool vibrates abnormally.

• Do not combine different types of batteries or new and used batteries.

• Do not use modified or damaged batteries.

WARNING! The appliance is not to be used by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction.

Young children should be supervised to ensure that they do not play with the appliance.

• Disposing of dust. Be extremely careful of dust disposal, materials in fine particle form may

be explosive. Do not throw sanding dust on an open fire. Spontaneous combustion, may in

time, result from a mixture of oil or water with dust particles.

• Always wear eye protection and a dust mask for dusty applications and when sanding

overhead. Sanding particles can be absorbed by your eyes and inhaled easily and may cause

health complications.

• Use special precautions when sanding chemically pressure treated timber, paint that may

be lead based, or any other materials that may contain carcinogens. A suitable breathing

respirator and protective clothing must be worn by all persons entering the work area.

Work should be sealed by plastic sheeting and persons not protected should be kept out

until work area is thoroughly cleaned.

• Do not ‘wet sand’ with this sander. Liquids entering the motor housing are an electrical

shock hazard.

• Keep fingers and clothing away from belt. They could get cut or wedged between the pulley,

belt and motor housing.

• Properly adjust the tracking of belt to avoid it overhanging the housing. A running belt

overhanging its housing can cause severe lacerations.

• Avoid using power tools for long periods of time without breaks. Vibration from tools can be

transmitted into your hands and arms.

• Where possible, use clamps or a vice to hold the workpiece. It is safer than using your

hand.

WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction

activities contain chemicals known to cause cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

- Lead from lead-based paints;

- Crystalline silica from bricks, cement and other masonry products, and;

- Arsenic and chromium from chemically-treated timber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your

exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such

as dust masks that are specially designed to filter out microscopic particles.

Product specificaties
