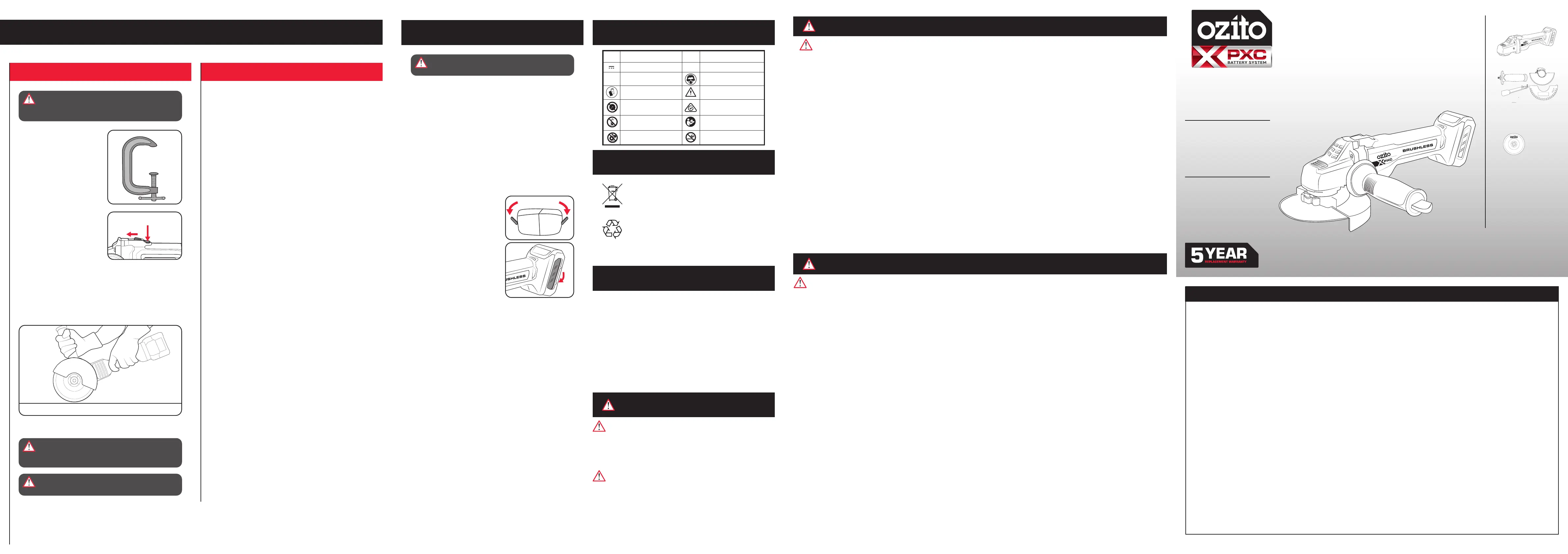

STANDARD EQUIPMENT

WARNING! This power tool is intended to function as a grinder or cut-off tool. Read all safety

warnings, instructions, illustrations and specifications provided with this power tool. Failure to

follow all instructions listed below may result in electric shock, for and/or serious injury.

• Operations such as sanding, wire brushing, or polishing are not recommended to be performed with

this power tool. Operations for which the power tool was not designed may create a hazard and

cause personal injury.

• Do not convert this power tool to operate in a way which is not specifically designed and specified by

the tool manufacturer. Such a conversion may result in a loss of control and cause serious personal

injury

• Do not use accessories which are not specifically designed and recommended by the tool manufacturer.

Just because the accessory can be attached to your power tool, it does not assure safe operation.

• The rated speed of the accessory must be at least equal to the maximum speed marked on the power

tool. Accessories running faster than their rated speed can break and fly apart

• The outside diameter and the thickness of your accessory must be within the capacity rating of your

power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

• The arbour size of wheels, flanges, backing pads or any other accessory must properly fit the spindle

of the power tool. Accessories with arbour holes that do not match the mounting hardware of the

power tool will run out of balance, vibrate excessively and may cause loss of control.

• Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels

for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked

wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory.

After inspecting and installing an accessory, position yourself and bystanders away from the plane of

the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged

accessories will normally break apart during this test time.

• Wear personal protective equipment. Depending on application, use face shield, safety goggles or

safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron

capable of stopping small abrasive or work piece fragments. The eye protection must be capable of

stopping flying debris generated by various operations . The dust mask or respirator must be capable

of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may

cause hearing loss.

• Keep bystanders a safe distance away from work area. Anyone entering the work area must wear

personal protective equipment. Fragments away and cause injury beyond immediate area of

operation.

• Hold the power tool by insulated gripping surface only, when performing an operation where the cutting

tool may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts of the

power tool “live” and could give the operator an electric shock.

• Never lay the power tool down until the accessory has come to a complete stop. The spinning

accessory may grab the surface and pull the power tool out of your control.

• Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory

could snag your clothing, pulling the accessory into your body.

• Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and

excessive accumulation of powdered metal may cause electrical hazards.

• Do not operate the power tool near flammable materials. Sparks could ignite these materials.

• Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in

electrocution or shock.

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other

accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the

uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of

the binding.

For example, if an abrasive wheel is snagged or pinched by the work piece, the edge of the wheel that

is entering into the pinch point can dig into the surface of the material causing the wheel to climb out

or kick out. The wheel may either jump toward or away from the operator, depending on direction of

the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be

avoided by taking proper precautions as given below.

• Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback

forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction

during start-up. The operator can control torque reactions or kickback forces, if proper precautions

are taken.

• Never place your hand near the rotating accessory. Accessory may kickback over your hand.

• Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel

the tool in direction opposite to the wheel’s movement at the point of snagging.

• Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory.

Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of

control or kickback.

• Do not attach a saw chain woodcarving blade, segmented diamond wheel with a peripheral gap greater

than 10mm or toothed saw blade. Such blades create frequent kickback and loss of control.

Additional safety instructions for grinding and cutting-off operations:

• Use only wheel types that are recommended for your power tool and the specific guard designed for the

selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded

and are unsafe.

• The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An

improperly mounted wheel that projects through the plane of the guard lip cannot be adequately

protected.

• The guard must be securely attached to the power tool and positioned for maximum safety, so the least

amount of wheel is exposed towards the operator. The guard helps to protect operator from broken

wheel fragments and accidental contact with wheel and sparks that could ignite clothing.

• Wheels must be used only for recommended applications. For example: do not grind with the side of

cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to

these wheels may cause them to shatter.

• Always use undamaged wheel flanges that are of correct size and shape for your selected wheel.

Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for

cut-off wheels may be different from grinding wheel flanges.

• Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not

suitable for the higher speed of a smaller tool and may burst.

• When using dual purpose wheels always use the correct guard for the application being performed.

Failure to use the correct guard may not provide the desired level of guarding, which could lead to

serious injury.

Additional safety instructions for abrasive cutting-off operations:

• Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth

of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the

wheel in the cut and the possibility of kickback or wheel breakage.

• Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of

operation, is moving away from your body, the possible kickback may propel the spinning wheel and

the power tool directly at you.

• When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold

the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the

cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and

take corrective action to eliminate the cause of wheel binding.

• Do not restart the cutting operation in the work piece. Let the wheel reach full speed and carefully

reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the work

piece.

• Support panels or any oversized work piece to minimize the risk of wheel pinching and kickback. Large

work pieces tend to sag under their own weight. Supports must be placed under the work piece near

the line of cut and near the edge of the work piece on both sides of the wheel.

• Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding

wheel may cut gas or water pipes,electrical wiring or objects that can cause kickback.

• Do not attempt to do curved cutting. Overstressing the wheel increases the loading and susceptibility

to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage, which

can lead to serious injury.

• When using abrasive cutting wheels, a cutting guard MUST be fitted to your angle grinder. These

cutting guards are available as a spare part and can be ordered through the special orders desk.

• Avoid using power tools for long periods of time without breaks. Vibration from tools can be

transmitted into your hands and arms.

• Where possible, use clamps or a vice to hold the workpiece. It is safer than using your hand.

LED lights do not illuminate on charger

Check the charging adaptor is securely plugged into the wall out let.

Check the battery is rmly connected to the charging cradle.

Check that the charging jack is securely connected to the charging cradle.

The battery has a short run time

Ensure the battery is properly charged. It will take 4-5 charging cycles

before the battery reaches optimum charge and run time. On the initial

charge, the battery requires 5 hours of charging. Subsequent charging only

requires 3-5 hours.

Spindle locking button will not depress

The spindle will need to be rotated until the lock can engage. Simply rotate

the spindle while applying a small amount of pressure on the spindle lock.

Overload indicator is flashing.

Motor is overheating or exceeding its maximum load. Please allow the tool

to cool down or reduce load before you continue to use it.

PXBVAGS-125

INSTRUCTION MANUAL

SPECIFICATIONS

Input: 18V

No Load Speed: 3,000-10,500/min

Disc Diameter: 125mm (5”)

Max. Cut Depth: 33mm

Spindle: M14

Weight: 1.7kg

ozito.com.au

0225

ELECTRICAL SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

ANGLE GRINDER SAFETY WARNINGS

Angle Grinder

Side Handle, Grinding Guard

& Pin Wrench, Plastic Cutting

Guard

Grinding Disc

MAINTENANCEDESCRIPTION OF SYMBOLS

Wear eye, ear & breathing protection

Wear gloves

Warning

Regulatory Compliance Mark

(RCM)

V

Volts

mm

MIllimetres

n

0

/min

Direct CurrentNo load speed

Revolutions per minute

Read Instruction Manual

Do not use cracked or damaged

blades

Do not use the guard for cut-off

operations

Do not use the guard for grinding

operations

Abrasive product only suitable for

dry grinding

Power tools that are no longer usable should not be disposed

of with household waste but in an environmentally friendly

way. Please recycle where facilities exist. Check with your local

council authority for recycling advice.

Recycling packaging reduces the need for landll and raw

materials. Reuse of recycled material decreases pollution in the

environment. Please recycle packaging where facilities exist.

Check with your local council authority for recycling advice.

CARING FOR THE ENVIRONMENT

SPARE PARTS

Spare parts can be ordered from the Special Orders

Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here,

visit www.ozito.com.au or contact Ozito Customer

Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [email protected]

125MM BRUSHLESS

ANGLE GRINDER

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU

MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS

WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO

RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE

OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

WARRANTY

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL

NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER

SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND

ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE

WARRANTY POLICY OR PROCEDURE.

OZITO25 Fox Drive, Dandenong South, Victoria, Australia 3175.

The benets provided under this warranty are in addition to other rights and

remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to

a replacement or refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to have the goods

repaired or replaced if the goods fail to be of acceptable quality and the failure

does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this

warranty, however, where you have suffered any additional direct loss as a result of

a defective product you may be able to claim such expenses by contacting our

customer service helpline above.

WARNING

The following actions will result in the warranty being

void.

• If the tool has been operated on a supply voltage other than that specied

on the tool.

• If the tool shows signs of damage or defects caused by or resulting from

abuse, accidents or alterations.

• Failure to perform maintenance as set out within the instruction manual.

• If the tool is disassembled or tampered with in any way.

5 YEAR REPLACEMENT WARRANTY

Your Product is guaranteed for a period of 60 months from the original date of

purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it

will be replaced in accordance with the terms of this warranty. Lithium Ion

batteries and chargers are covered by a 36 month

warranty and are excluded from the warranty extension. Warranty excludes

consumable parts.

WARNING! BEFORE CLEANING OR CARRYING OUT

ANY MAINTENANCE PROCEDURE, ENSURE THAT

THE BATTERIES HAVE BEEN REMOVED.

Cleaning

• Keep the ventilation slots of the tool clean at all times to ensure efcient

operation.

• After each use, blow air through the tool housing to ensure it is free from

all dust, dirt, etc. Build up of dust or dirt particles may cause the tool to

overheat and shorten the life of the tool.

• If the housing of the tool requires cleaning, do not use solvents. Use of a

cloth only is recommended.

• Never allow any liquid to get inside the tool, never immerse any part of

the tool into liquid.

Cleaning The Dust Guard & Ventilation Mesh

1. Gently ex one side of the dust guard

away from the handle.

2. Unhook the dust guard from the tool.

3. Use compressed air to clean the ventilation mesh on the tool and dust

guard. If necessary, use a soft, dry cloth to wipe the dust guard clean.

4. Press the pins on the inside of the dust guard against the tool handle and

then re-attach the dust guard.

Storage

When not in use, the tool should be stored in a dry, frost free location, keep

out of children’s reach.

Note: Ozito Industries will not be responsible for any damage or

injuries caused by repair of the tool by an unauthorised person or by

mishandling.

7. CUTTING8. TROUBLESHOOTING

1. Ensure the workpiece is securely held

down.

2. Hold the angle grinder rmly with

both handles and switch on.

3. The optimum angle is 90° to the workpiece. Do not apply excessive

pressure. Allow the tool to do the work.

Note: Do not apply excessive pressure. Allow the tool to do the work

Note:Wait until the tool has reached its top speed.You can then position

the angle grinder on the workpiece and machine it.

WARNING! AFTER EVERY USE, CLEAN THE

VENTILATION MESH ON THE HOUSING TO PREVENT

OVERHEATING THE MOTOR. THE VENTILATION

MESH MUST BE USED IN ALL APPLICATIONS.

WARNING! AFTER ALL APPLICATIONS, USE

COMPRESSED AIR TO CLEAN THE SWITCH AND ALL

VENTS FOR ANY DUST.

WARNING! WHEN USING THE ANGLE GRINDER

WITH A CUTTING DISC, A CUTTING GUARD MUST

BE FITTED PRIOR TO OPERATION. FAILURE TO DO SO

MAY RESULT IN SERIOUS INJURY.

WARNING!Read all safety warnings, instructions, illustrations and specifications provided

with this power tool. Failure to follow all instructions listed below may result in electric shock,

fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-

operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to

lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will

reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the

risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase

the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)

protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do

not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A

moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a

dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will

reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power

source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger

on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the

power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from

moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these

are connected and properly used. Use of dust collection can reduce dust-related hazards.

h)Do not let familiarity gained from frequent use of tools allow you to become complacent and

ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power

tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from

the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the

power tool or these instructions to operate the power tool. Power tools are dangerous in the hands

of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tool’s operation. If damaged,

have the power tool repaired before use. Many accidents are caused by poorly maintained power

tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are

less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking

into account the working conditions and the work to be performed. Use of the power tool for

operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and

grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one

type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may

create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,

keys, nails, screws or other small metal objects, that can make a connection from one terminal to

another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact

accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid

ejected from the battery may cause irritation or burns.

e)Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may

exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or

temperature above 130 °C may cause explosion.

g)Follow all charging instructions and do not charge the battery pack or tool outside the

temperature range specified in the instructions. Charging improperly or at temperatures outside the

specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the

manufacturer or authorized service providers.

WARNING! When using electric tools basic safety precautions should always be followed to reduce

the risk of fire, electric shock and personal injury. Read the whole manual carefully and make

sure you know how to switch the tool off in an emergency, before operating the tool. Save these

instructions and other documents supplied with this tool for future reference.

- This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

-This appliance is compatible and only to be used with all batteries & chargers from the Ozito PXC

range. -Refer to the PXC battery and charger manuals for information regarding charging, use and

storage.

WARNING! Always remove the battery from the tool:

-when the batteries are to be charged,

-when the tool is left unattended,

-when the tool is being checked, cleaned, or having maintenance work done,

-when the tool is to be stored,

or if the tool vibrates abnormally.

-Do not combine different types of batteries or new and used batteries.

-Do not use modified or damaged batteries.

a.

b.

Product specificaties
