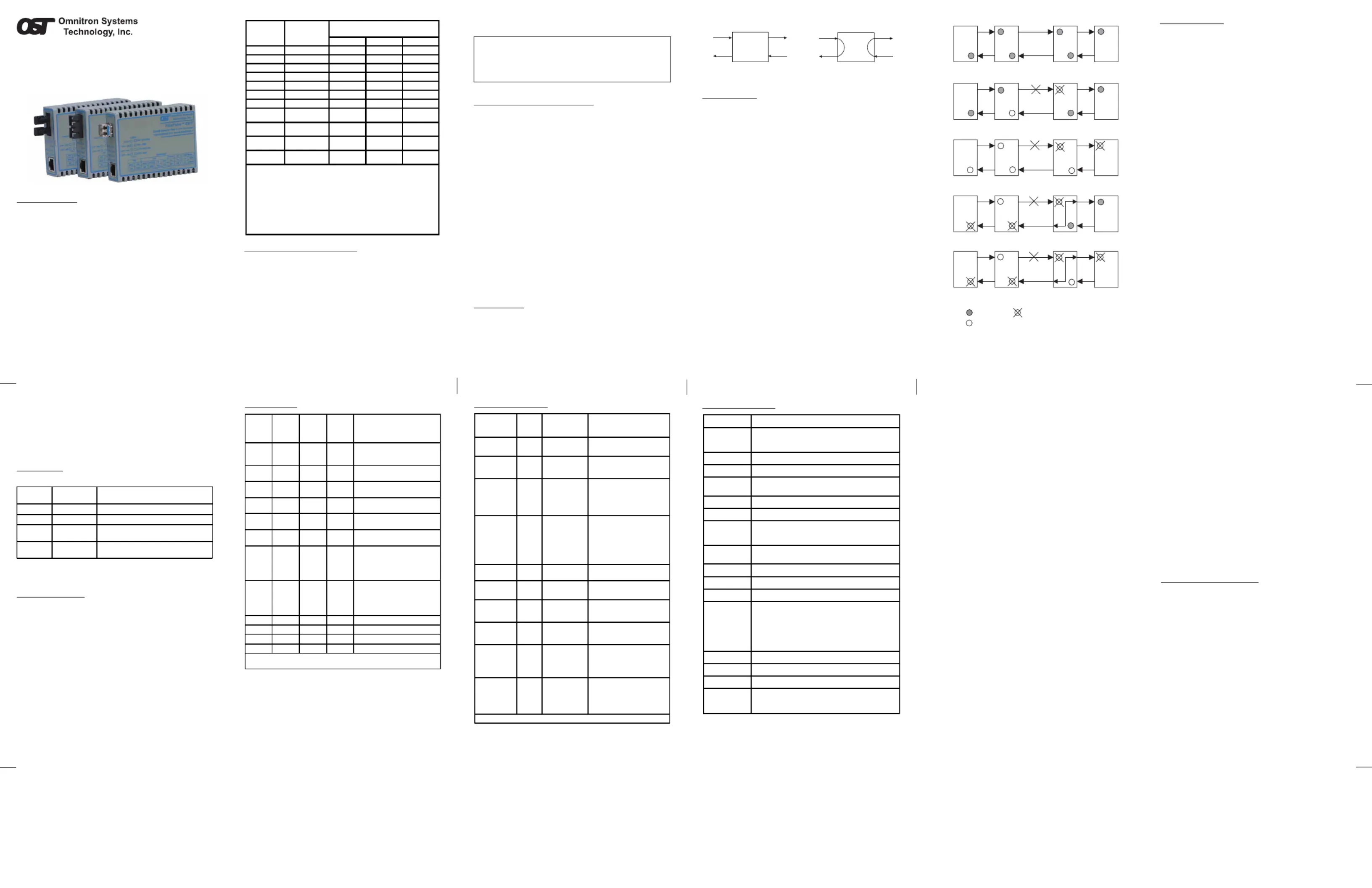

Fiber Type Distance Connector Type
ST SC SFP
SFP - - - 4719-x
MM 220 / 550m
1
4706-x 4700-x -
SM 12km 4707-x 4701-x -
SM 34km - 4702-x -
SM 80km - 4703-x -
SM 110km - 4704-x -
SM 140km - 4705-x -
SM-SF
1310/1550 20km
- 4710-x


 -
SM-SF
1550/1310 20km
- 4711-x


 -
SM-SF
1310/1550 40km
- 4712-x


 -
SM-SF
1550/1310 40km
- 4713-x


 -
Power Adapter Kits (-x):
-0 = No power adapter included
-1 = 110-120 VAC/60 Hz (US plug)
-2 = 100-240 VAC/50-60 Hz (IEC plug, no power cord)
For other power and fiber configurations, contact the factory.
1
62.5/125Β΅m, 100/140Β΅m multimode fiber up to 220m, 50/125Β΅m
multimode fiber up to 550m. Refer to the fiber cable manufacturer for
multimode distance specifications.
Single-Fiber converters must be used in pairs. The Tx wavelength
on one end has to match the Rx wavelength on the other.
POWER ADAPTER NOTICE:
1. This product should only be used with Omnitron Supplied
Power Unit model numbers 9113-PS [US] or 9115-PS
[Universal].
2. When used in a standalone configuration, this product
must be used with a Listed Direct Plug-In Power Unit
marked β€œClass 2” and rated at 9VDC, 1 Amp.
NOTE: If mounting with a safety ground attachment,
use the safety ground screw at the rear of the unit.
NOTE: Remove safety ground screw when installing
the module in the 14-Module Chassis or when using
FlexPointβ„’ GX/T
10/100/1000 UTP to 100/1000X
Ethernet Media Converter
User Manual
DESCRIPTION:
The FlexPoint GX/T is a 10/100/1000BASE-T UTP to
1000BASE-X fiber media converter that supports jumbo
frames up to 10,240 bytes. The GX/T features Small
Form Pluggable (SFP) transceivers that support both
100BASE-FX and 1000BASE-X for interoperability with
Gigabit and Fast Ethernet fiber equipment.
Both the fiber port and the UTP port support auto-
negotiation, an IEEE standard which defines how all the
communicating devices automatically perform their
configuration functions.
The auto-negotiation feature can be disabled on both ports
(for manual configuration) using DIP-switches on the
product. This is useful in a situation where the GX/T is
connected to a non-negotiating device and the configuration
parameters must be set manually.
it with the DC-DC Converter (Model # 4384)
WARNING!
Before inserting the Power Adapter, verify
that the power on the unit is appropriate
for your AC line voltage source.
INSTALLATION PROCEDURE
1.) Configure the appropriate FlexPoint GX/T DIP-Switch
settings.
2.) Connect the UTP port via a Category 5 or better cable
to a 10BASE-T, 100BASE-TX or 1000BASE-T Ethernet
device.
3.) When using fixed fiber port models, connect the
appropriate multimode or single-mode fiber cable to the
fiber port of the installed module. It is important to ensure
that the transmit (Tx) is attached to the receive side of
the device at the other end and the receive (Rx) is attached
to the transmit side. Single-fiber (SF) media converter
models operate in pairs. The Tx wavelength must match
the Rx wavelength at the other end and the Rx wavelength
must match the Tx wavelength at the other end.
4.) When using a GX/T SFP model, insert the SFP Fiber
transceiver into the Port 1 SFP receptacle on the GX/T.
NOTE: The release latch of the SFP Fiber transceiver
must be in the closed (up) position before insertion.
LOOPBACK
The FlexPoint GX/T has the capability to provide loopback
to aid in installation and maintenance. A DIP-switch is
used to enable loopback on the module (see page 7).
Figure 1 shows the module in normal and loopback modes.
TX
RX
RX
TX
UTP Fiber
Normal Mode
FlexPoint GX/T
TX
RX
RX
TX
UTP Fiber
Loopback Mode
Figure 1: Loopback Mode
LINK MODES
In order to accommodate different user needs, the GX/T
supports four different link modes (see Fig. 2).
In Link Segment (LS), a port transmits a Link signal
independently of any received Link at any other port. For
example, the UTP transmits a Link regardless of the fiber
receiving a Link [Fig. 2(a) & (b)].
In Link Propagate (LP), a port transmits a Link signal only
when receiving a Link at its other port. For example, the
UTP transmits a Link only when receiving a Link at the
fiber port [Fig. 2(c)].
In Remote Fault Detection + Link Segment (RFD+LS),
the fiber port transmits a Link signal only when receiving
a Link at the fiber port. As a result, fiber faults (no Link
received at the fiber) are looped-back and can be reported
to the network core [Fig. 2(d)].
In Remote Fault Detection + Link Propagate (RFD+LP),
the UTP port transmits a Link signal only when receiving
a Link at the fiber port. The fiber port transmits a Link
signal only when receiving Link signals at both the fiber
port and the UTP port. As a result, fiber faults (no Link
received at the fiber) are propagated forward and looped
back for fault reporting at both the network core and the
customer location [Fig. 2(e)].
NOTE: Connecting two converters with both set to RFD
mode is not supported and will cause a β€œdeadly embrace”
lockup.
Switch 1 Converter A Converter B Switch 2
(a)
LS
Fiber
UTP
UTP
Fiber
LS
Switch 1 Converter A Converter B Switch 2
LS
(b)
LS
(c)
Switch 1 Converter A Converter B Switch 2
LPLP
(d)
Switch 1 Converter A Converter B Switch 2
LP RFD+LS
(e)
Switch 1 Converter A Converter B Switch 2
LP RFD+LP
LED On
LED Status depends on connected device
LED Off
Figure 2: Link Modes
Warning
The operating description in this Instruction Manual is for
use by qualied personnel only. To avoid electrical shock,
do not perform any servicing of this unit other than that
contained in the operating instructions, unless you are
qualified and certified to do so by Omnitron Systems
Technology, Inc.
Caution
All user-required operations can be performed without
opening the unit. Never attempt to open or remove the
cover or tamper with the unit.
Warranty
This product is warranted to the original purchaser against
defects in material and workmanship for a period of TWO
YEARS from the date of shipment. A LIFETIME warranty may
be obtained by the original purchaser by REGISTERING this
product with Omnitron within 90 days from the date of shipment.
TO REGISTER, COMPLETE AND MAIL OR FAX THE
REGISTRATION PORTION OF THIS INSTRUCTION
MANUAL TO THE INDICATED ADDRESS. Or you may
register your product on the internet at
http://www.omnitron-systems.com. During the warranty
period, Omnitron will, at its option, repair or replace a product
which is proven to be defective.
For warranty service, the product must be sent to an Omnitron
designated facility, at Buyer’s expense. Omnitron will pay the
shipping charge to return the product to Buyer’s designated
US address using Omnitron’s standard shipping method.
Limitation of Warranty
The foregoing warranty shall not apply to defects resulting
from improper or inadequate use and/or maintenance of
the equipment by Buyer, Buyer-supplied equipment, Buyer-
supplied interfacing, unauthorized modifications or
tampering with equipment (including removal of equipment
cover by personnel not specifically authorized and certified
by Omnitron), or misuse, or operating outside the
environmental specification of the product (including but
not limited to voltage, ambient temperature, radiation,
unusual dust, etc.), or improper site preparation or
maintenance.
No other warranty is expressed or implied. Omnitron
specifically disclaims the implied warranties of
merchantability and fitness for any particular purpose.
Exclusive Remedies
The remedies provided herein are the Buyer’s sole and
exclusive remedies. Omnitron shall not be liable for any
direct, indirect, special, incidental, or consequential
damages, whether based on contract, tort, or any legal
theory.
TECHNICAL SUPPORT:
For help with this product, contact our Tech. Support:
Phone: (949) 250-6510
Fax: (949) 250-6514
Address: Omnitron Systems Technology, Inc.
140 Technology Drive, #500
Irvine, CA 92618 USA
E-mail: support@omnitron-systems.com
URL: http://www.omnitron-systems.com
Form: 040-04700-001A 8/08
SPECIFICATIONS
LED INDICATORS
Page 7 Page 9 Page 10 Page 11 Page 12
LED Function
"Legend" Color Off State On / Blinking State
Power / Test
"Power" Green No power
On: Module has power
Blinking: Module in loopback
mode
F/O AN
"F/O-Auto-Neg" Green Port configured for
manual negotiation
On: Fiber port configured for AN
Blinking: Fiber port configured for
AN but in manual mode
F/O Speed 100*
"F/O-100" Green Not connected at
100Mbps
On: Fiber port linked at 100Mbps
Blinking (10Hz): Link activity at
100Mbps
Blinking (1Hz): Signal detected
but port unable to establish a link
F/O Speed 1000
"F/O-1000" Green Not connected at
1000Mbps
On: Fiber port linked at 1000Mbps
Blinking (10Hz): Link activity at
1000Mbps
Blinking (1Hz): Signal detected
but port unable to establish a link
Pattern Blinking: AN remote Fault
bit detected
UTP Duplex
"UTP-FDX" Green Half-Duplex On: UTP port in Full-Duplex
UTP AN
"UTP-Auto-Neg" Green Port configured for
manual negotiation
On: UTP port configured for AN
Blinking: UTP port configured for
AN but in manual mode
UTP Speed 100
"UTP-100" Green Not connected at
100Mbps
On: UTP port linked at 100Mbps
Blinking (10Hz): Link activity
UTP Speed 1000
"UTP-1000" Green Not connected at
1000Mbps
On: UTP port linked at 1000Mbps
Blinking (10Hz): Link activity
UTP Speed 10
"UTP-100"
+
"UTP-1000"
Green Not connected at
10Mbps
On: UTP port linked at 10Mbps
Blinking (10Hz): Link activity
Pattern Blinking: (1Hz): Detecting
"remote_fault" (AN) on UTP port
"UTP Auto-Neg"
+
"UTP-100"
+
"UTP-1000"
Green - Blinking (1Hz): Unable to establish
AN link on the UTP port
*SFP models only
Model Type GX/T
Protocols
IEEE 802.3
10BASE-T, 100BASE-TX, 1000BASE-T, 100BASE-FX,
1000BASE-X
Frame Size 10,240 byte max. frame size
UTP Cable RJ-45, Category 5 and higher
Fiber Cables Multimode: 50/125, 62.5/125, 100/140Β΅m
Single-mode: 9/125Β΅m
UTP Connectors RJ-45
Fiber Connectors ST, SC, LC (SFP)
DIP-Switches
Fiber: Auto-Neg, 1000, 100
UTP: Auto-Neg, 10, 100, 1000, FDX/HDX, Pause En/Dis
Loopback, Link Seg, Link Prop, Remote Fault Det.
LED Displays Power, Fiber AN, Fiber Speed/Activity, UTP Speed/Activity,
Full/Half-Duplex
Dimensions W: 3.0" x D: 4.0" x H: 1.0"
Weight 6 oz. (without power adapter)
Compliance** UL, CE, FCC Class A
Barrel
Connector
Molex
Connector
Power
Requirements Nominal Voltage:
Voltage Range:
Nominal Power:
Maximum Power:
9VDC
5.0 to 32.0VDC
0.3A @ 9VDC
1A @ 9VDC
5VDC
5.0 to 32.0VDC
0.5A @ 5VDC
0.75A @ 5VDC
Temperature 0 to 50
o
C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4000m
MTBF (Hours) Module without Power Adapter: 900,000
Module with Power Adapter -1: 250,000
Module with Power Adapter -2: 100,000
DIP-SWITCHES
F/O Manual/Auto β€œMAN/AN” DIP-Switch:
Setting this DIP-Switch to P1 Auto-Negotiate β€œAN” (factory
setting) enables the Fiber Port to determine duplex mode
automatically. If the connected device cannot provide
the proper signal to indicate its own mode of operation,
this DIP-Switch should be set to P1 Manual β€œMAN.” This
feature allows connections with legacy devices that do
not support auto-negotiation.
NOTE: When the fiber port is in Manual Mode, a link-up
may not occur with other devices. Both devices must be
set to the same mode (either Manual or Auto-Negotiate) for
the link-up to occur.
When set to auto-negotiation, the fiber port will
automatically reconfigure to manual mode when an auto-
negotiation connection cannot be established.
F/O Speed β€œ100/1000” DIP-Switch:
The GX/T supports 100BASE-FX and 1000BASE-X SFPs.
This DIP-switch is used to configure the unit for the
speed of SFP used. Setting this DIP-switch to β€œ1000”
enables the fiber port is accept 1000BASE-X SFPs. Setting
this DIP-switch to β€œ100” enables the fiber port to accept
100BASE-FX SFPs. This DIP-switch is only available on
the SFP model.
This DIP-switch is ignored when using Omnitron branded
SFPs. The GX/T automatically configures the fiber port
to the correct speed.
UTP Configuration DIP-Switches:
See the UTP Modes table on page 8.
Pause β€œOn/Off” DIP-Switch:
In auto-negotiation mode, setting this DIP-switch to β€œOn”
allows the unit to advertise as Symmetrical and
Asymmetrical Pause capability. In auto-negotiation mode,
setting the DIP-switch to β€œOff” causes the unit to advertise
no Pause capability. In the manual mode, this DIP-
switch determines the Symmetrical Pause behavior.
Loopback β€œOff/On” DIP-Switch:
Setting this DIP-switch β€œOn” enables loopback on the
fiber and UTP ports (see Figure 1).
Link Modes:
See the following table for configuring link modes:
SW9
"LS/LP"
SW10
"RFD/Normal"
Result
LS Normal Enables Link Segment mode (LS).
LP Normal Enables Link Propagate mode (LP).
LS RFD Enables Remote Fault Detection mode plus
Link Segment mode (RFD+LS).
LP RFD Enables Remote Fault Detection mode plus
Link Propagation mode (RFD+LP).
NOTE: RFD is only available when the fiber port is
operating in manual mode.
REMOTE FAULT
Each port will generate an β€œIEEE remote_fault indicator”
when the incoming signal to the port is lost. When a port
is configured for auto-negotiation, it will set the remote
fault bit β€œhigh” in the AN advertisement when the port
detects a loss of incoming signal. See LED Indicators
table on page 9 for specifics on how the unit reports the
detection of this signal.
When the fiber port is operating in 100BASE-FX, a loss of
incoming signal will cause the port to generate a Far-End-
Fault indicator pattern. See LED Indicators table on page
9 for specifics on how the unit reports the detection of
this signal.
UTP MODES
SW3
AN/MAN
SW4
10/100/
1000
SW5
10/100
SW6
FDx/HDx
UTP Mode of Operation
AN 1000 NA FDX Configured for Auto Negotiation.
(1000F, 1000H, 100F, 100H, 10F,
10H)
AN 1000 NA HDX Configured for Auto Negotiation.
(1000H, 100F, 100H, 10F, 10H)
AN 10-100 100 FDX Configured for Auto Negotiation.
(100F, 100H, 10F, 10H)
AN 10-100 100 HDX Configured for Auto Negotiation.
(100H, 10F, 10H)
AN 10-100 10 FDX Configured for Auto Negotiation.
(10F, 10H)
AN 10-100 10 HDX Configured for Auto Negotiation.
(10H)
MAN 1000 NA FDX Configured for Auto Negotiation.
(1000F)
When the port is set to 1000, it is
always in AN mode.
MAN 1000 NA HDX Configured for Auto Negotiation.
(1000H)
When the port is set to 1000, it is
always in AN mode.
MAN 10-100 100 FDX Port forced to 100 FDX
MAN 10-100 100 HDX Port forced to 100 HDX
MAN 10-100 10 FDX Port forced to 10 FDX
MAN 10-100 10 HDX Port forced to 10 HDX
When the module is configured for auto-negotiation, the module will advertise in
the order shown in the parenthesis.
Page 8


Product specificaties

Merk: Omnitron Systems
Categorie: Mediaspeler
Model: FlexPoint GX/T

Heb je hulp nodig?

Als je hulp nodig hebt met Omnitron Systems FlexPoint GX/T stel dan hieronder een vraag en andere gebruikers zullen je antwoorden




Handleiding Mediaspeler Omnitron Systems

Handleiding Mediaspeler

Nieuwste handleidingen voor Mediaspeler
