ASSEMBLY INSTRUCTION

SKU#60/636/637/638

NOTE: Please consult a qualified electrician if you are not certain of the installation.

CAUTION: Before starting the installation, disconnect the power by turning off the circuit breaker or

by removing the fuse in the fuse box. Caulk to mounting surface at top and sides.

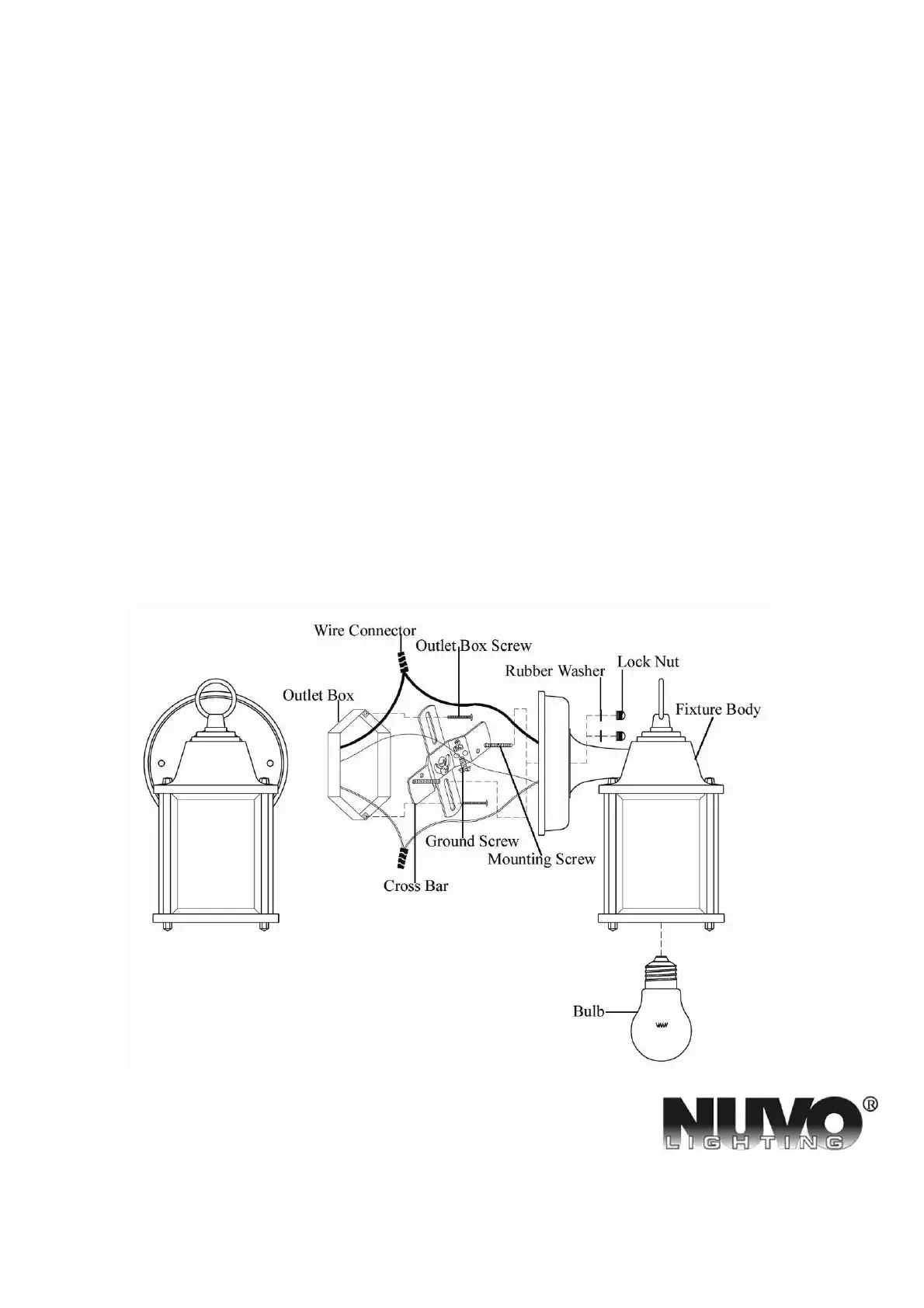

1.Fasten the mounting screw to crossbar and adjust to desired length. Make sure the thread is facing

outside.

2.Fasten cross bar to the outlet box using 2 outlet box screws.

3.Take the ground wire from the house, wrap it around the ground screw on the cross bar so that the

end of the ground wire is still loose, tighten the ground screw, and connect the ground wire from

the fixture to the loose end of the ground wire from the house by twisting the ends together with

pliers. Connect the wires, white-to-white and black-to-black. Cover the connections using the wire

connectors provided.

4.Place the fixture body to the wall by aligning the protruding mounting screw all the way through

the wall plate and tighten the fixture using 2 lock nuts and rubber washers provided. Fasten the

fixture until it held firmly to the wall.

5.Install bulb (not included).

6.Turn on the power.

A Satco Product
