Trio Spotlight

Art.no 36-6071, 36-6072 Model OCL-563-ALU, OCL-563-WH

Please read theentire instruction manual before using theproduct

and then save it for future reference. We reserve theright for

any errors in text or images and any necessary changes made

to technical data. If you have any questions regarding technical

problems please contact our Customer Services.

Safety

• All light fittings must be installed in accordance with current

safety regulations to prevent life-threatening accidents.

• If you are theleast bit unsure how theinstallation is to be

carried out, contact acompetent electrician.

• The distance from thelight fitting to thenearest wall or

other object must be no less than 50 cm.

• This light fitting is classed IP21 and as such is only suitable

for indoor use. The light fitting may be installed in bathroom

zones 2 and 3 but local regulations must be taken into

consideration. The light fitting must be attached to awater-

impermeable ceiling surface which prevents water from

leaking down and reaching thelight fitting from above.

• The light fitting must under no circumstances be altered

or modified.

• The light bulbs become very hot. Let them cool before

handling them.

Note:

• The light fitting comes without light bulbs. There are several

types of GU10 light bulbs available, such as energy saving

CFL bulbs and LED bulbs.

• There are even simple tools available for simplifying thefitting

and removal of PAR bulbs into this type of light fitting, e.g.

Clas Ohlson article number 36-4550. They grip thePAR

bulbs by means of suction cups, enabling them to be

handled more easily.

• The life of halogen

bulbs can be

prolonged by

avoiding skin contact

with them.

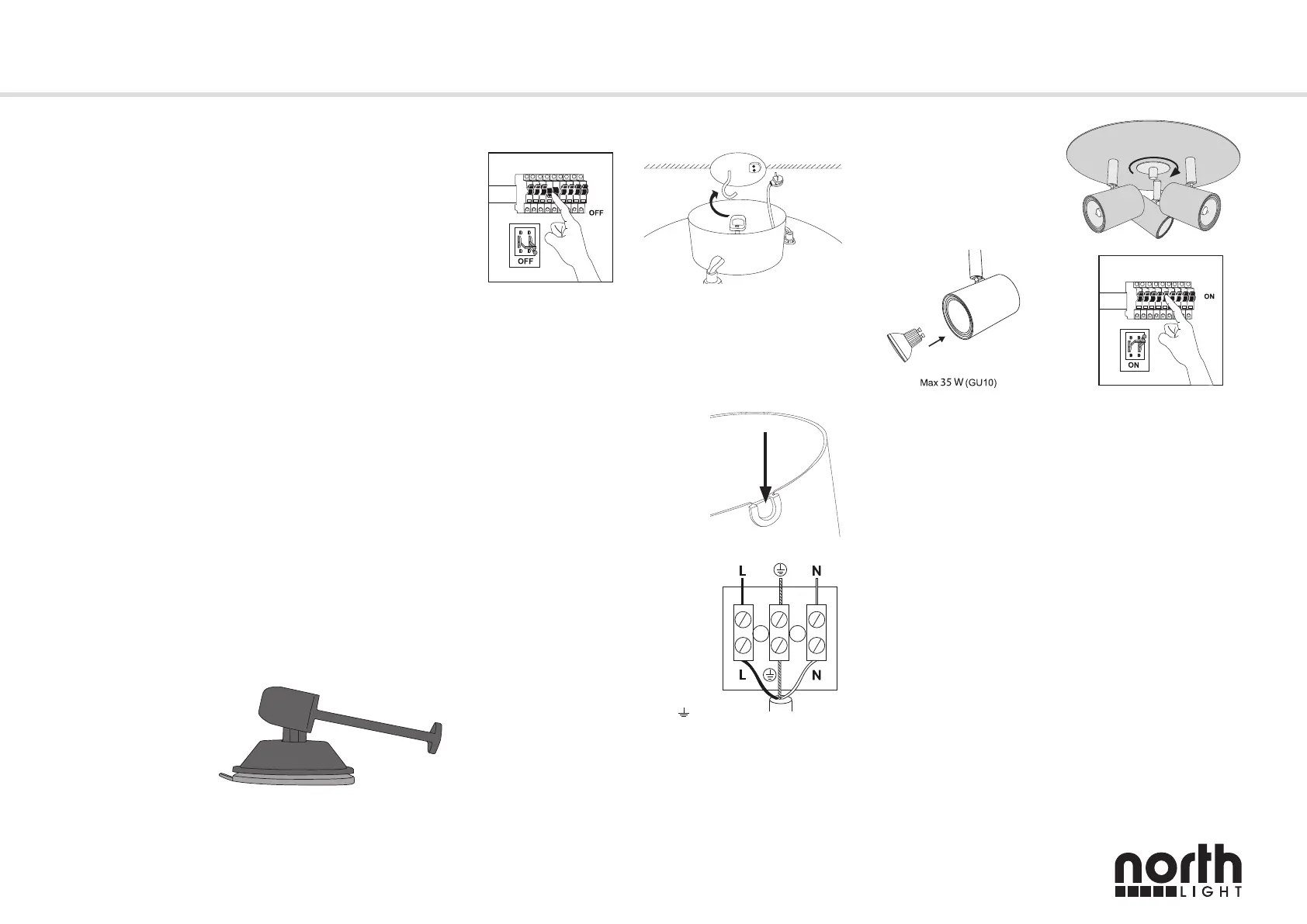

Installation

5. Tighten the retaining knob

clockwise until the light

fitting lies flush and secure

against the ceiling.

6. Fasten thelight fitting to

theceiling bracket using

theincluded screws.

1. Warning! Always

turn off thepower

before beginning

theinstallation.

8. Turn thepower on.

2. Thread the lamp’s eyelet bracket

onto an existing ceiling hook

(orinstall using appropriate parts

and following recommended

fastening methods, if you are

missing an existing hook).

7. Insert your preferred

type of light bulbs.

Max3×35 W, GU10

(sold separately).

3. If the mains lead is surface

mounted onto the ceiling and

must enter the fixture from the

side, first remove the protective

plastic cap from the mains lead

cut-out before threading it in and

connecting it.

4. Connect thewires of theinput

power cable as shown in thefigure.

-The brown or black wire (live

phase) should be connected to

the“L” terminal on thelight fitting.

-The blue wire (neutral) should

be connected to theterminal

marked “N”.

-The green/yellow wire (Earth)

should be connected to the

terminal.

Care and maintenance

Clean thelight fitting by wiping it with alightly moistened cloth.

Only use mild cleaning agents, never solvents or corrosive

chemicals.

Disposal

This product should be disposed of in accordance with local

regulations. If you are unsure how to proceed, contact your

local authority.

Specifications

Power supply 220–240 V AC, 50 Hz

Bulbs Max 3×35 W, GU10 (sold separately)

IP rating IP21

Class I (must be connected to earth)

Finish Brushed steel (36-6071), white (36-6072)

Note: The colour of thewires might not always correspond to

thecolours stated in this manual. If you are unsure, contact

acompetent electrician.
