ROTATOR® SPRINKLER TECHNOLOGY

Tel: +1 509.525.7660 / Fax: +1 509.525.7907 / nelsonirrigation.com/ [email protected]

R

PVC ADAPTERS - 3/17

¾” PVC Socket x

½” Male Acme (10060-002)

Sch. 40 PVC Riser up to 36” Long

Buried 1”± Below

Soil Surface

Buried 9-12” Below

Soil Surface

¾” Female Acme x ¾” PVC

Socket or 1” PVC Spigot (12214-001)

¾” Female Acme x ¾” PVC

Socket or 1” PVC Spigot (12214-001)

¾” Acme x ¾” MNPT Adapter (11344)

¾” PVC Female Adapter

R2000 Series Rotator

(C. Optional)1 ½” PVC Sleeve

can be used to protect

riser(s) in pastures

& forage crops.

A. DETACHABLE RISER

WITH BELOW GRADE CONNECTION

B. DETACHABLE RISER

WITH AT-GRADE CONNECTION

¾” PVC Socket x

½” Male Acme (10060-002)

Sch. 40 PVC Riser up to 36” Long

R2000 Series Rotator

¾” Acme x ¾” MNPT Adapter (11344)

¾” PVC Female Adapter

¾” Riser Base must be rigid.

Can be mounted several

ways depending on pipe depth.

¾” Riser Base must be rigid.

Can be mounted several

ways depending on pipe depth.

QUICK-CONNECT

FITTINGS FOR

DETACHABLE RISERS

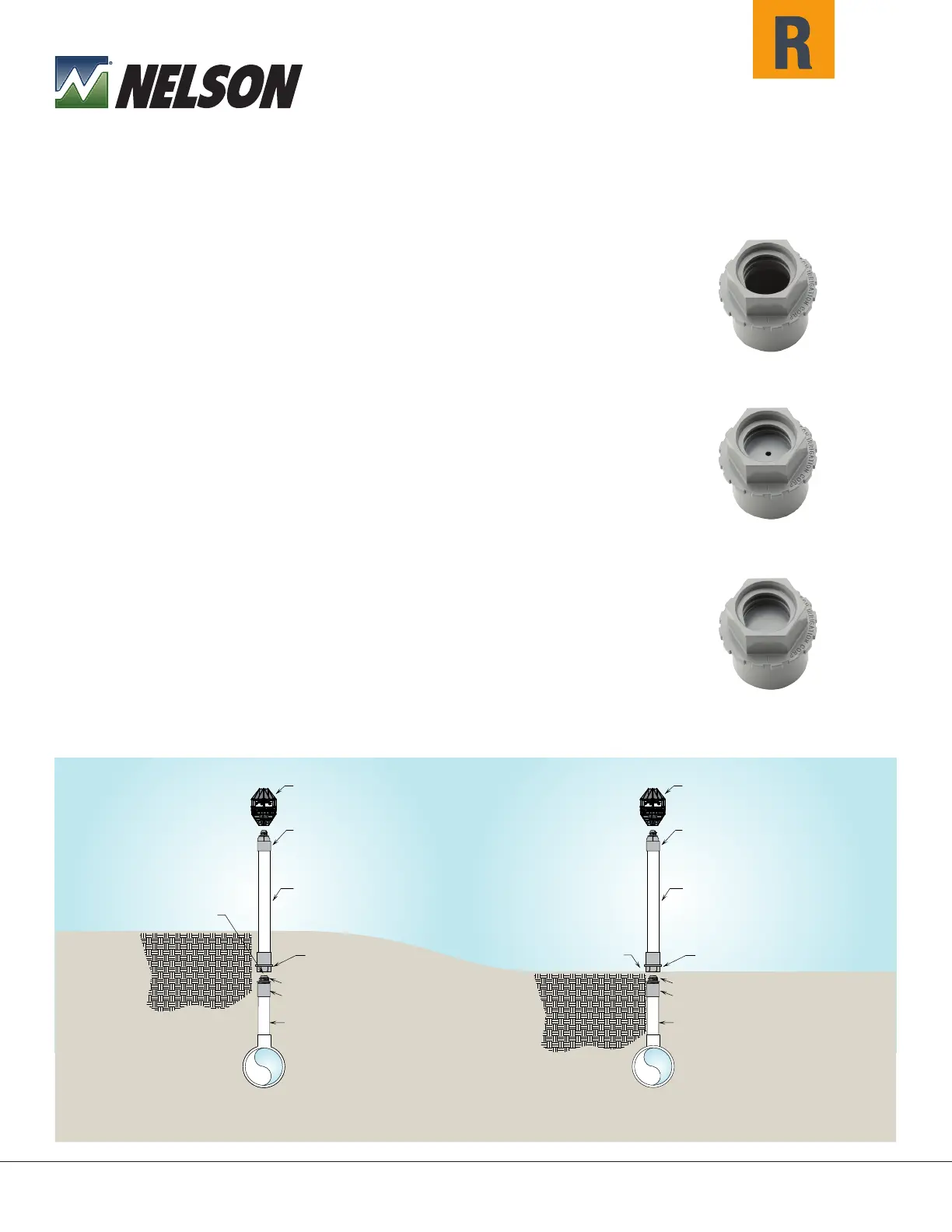

WHY DETACHABLE RISERS? Solid set irrigation with Rotators is an

excellent way to irrigate small and irregular shaped fields. However, the process

of moving pipe in and out of the field several times a season is costly and

problematic. Inexpensive yet rigid detachable risers can be quickly and easily

moved out of the way of farming operations, then easily reinstalled when it is

time to irrigate. Now with two sizes of Nelson ACME Adapters, growers can choose

from a wide range of Rotator

®

Sprinkler flow ranges for their specific needs. ACME

Threads allow users to rethread risers while the system is pressurized, and not

cross-thread the risers. The ½” ACME thread is used in 10 Series and 2000 Series

Rotator sprinklers. The new ¾” ACME Threaded fittings are based on the ACME

Thread used in the R33. With these new ¾” ACME Thread fittings, Detachable

Risers can have higher flow rates and be taller than ever before.

A. SHALLOW CULTIVATED CROPS REQUIRE A BURIED DETACHABLE RISER.

B. DETACHABLE RISERS FOR CRANBERRY AND ALFALFA PRODUCTION.

C. SLEEVE-PROTECTED DETACHABLE RISERS IN PASTURES & FORAGE CROPS.

3 Fittings With ¾” Female

Acme Thread

(Connects to R33 Adapter 11344)

12214-003

Cap, Female Acme x ¾” PVC Socket

or 1” PVC Spigot

12214-002

Small Hole, ¾” Female Acme

x ¾” or 1” PVC Spigot

12214-001

¾” Female Acme x ¾” PVC Socket

or 1” PVC Spigot
