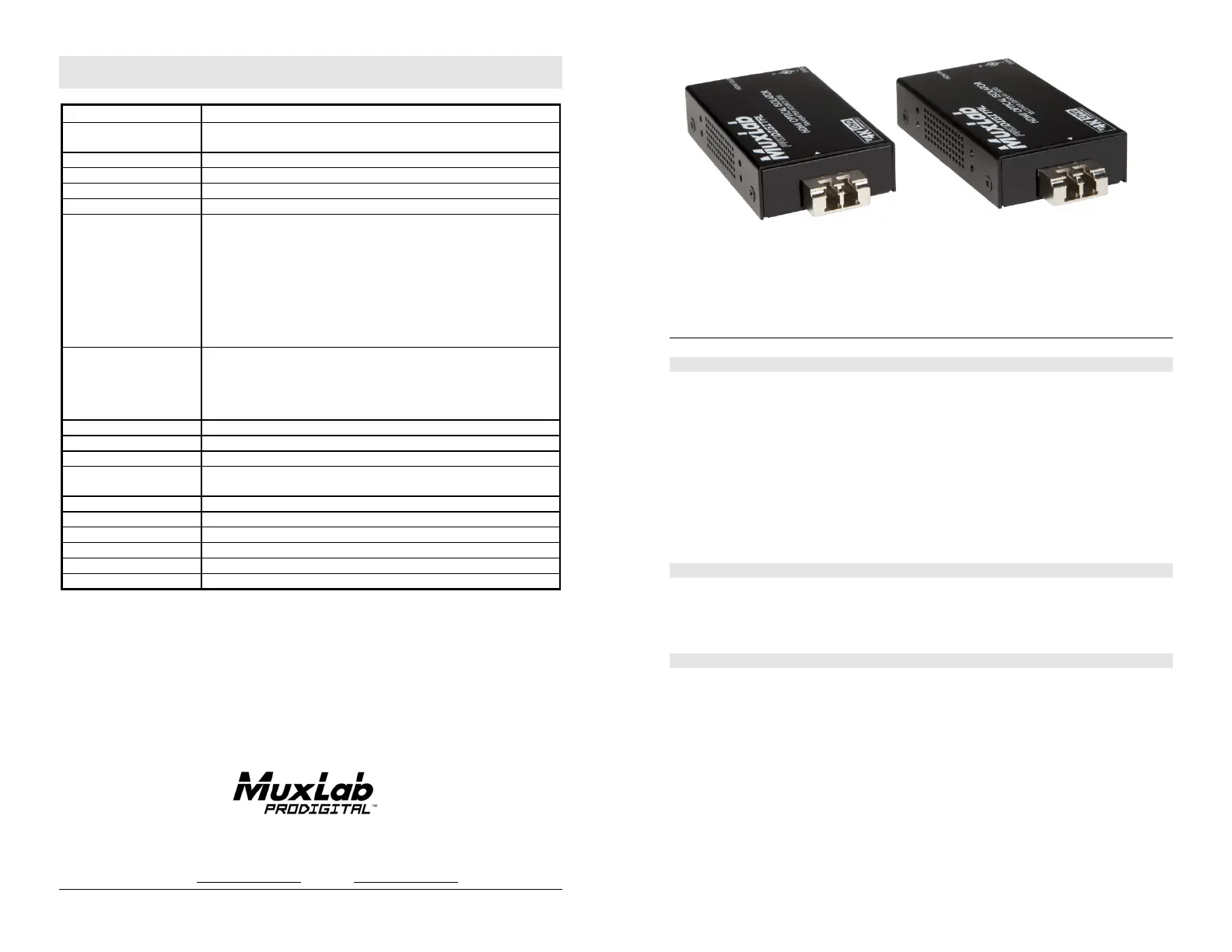

2321 Rue Cohen, Montreal, QC, H4R 2N7

Tel:(514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877)689-5228

E-mail: [email protected]URL:www.muxlab.com

Specifications

Environment

HDMI 1.3aand DVI-D

Devices

DVD, plasma, projectors, monitors, TV, PC, laptops, servers

supporting HDMI.

Transmission

Unidirectional. Transparent to the user

Bandwidth

340 MHz

Signals

HDMI 1.3a protocol

Copy Protection

Do NOT Support HDCP protected content.

Connectors

TX Side: One (1) HDMI receptacle.

One (1) LC Fiber connector (output only).

One (1) 2.1mm power connector.

T

X Side: One (1) HDMI receptacle.

One (1) LC Fiber connector (input only).

One (1) 2.1mm power connector.

Note: HDMI and Fiber cables not included.

Maximum Distance

Based on a maximum

length of 6.6 ft (2 m) of

HDMI cable per end.

480i/p: 984ft (300m)

720p, 1080i: 984ft (300m)

1080p 8-bit: 984ft (300m)

1080p 12-bit deep-color: 984ft (300m)

4K @ 24,25, 30Hz 984ft (300m)

Cable

One (1) Multimode fiber 50/125 μm OM3 cable required

Power Supply

Two (2) 110-240V/5VDC power supply with interchangeable blades

Power Consumption

Transmitter: 1.35 Watt Receiver: 1.15Watt

Temperature

Operating: 0° to 55°C Storage: -20° to 85°C

Humidity: Up to 95% non-condensing

Enclosure

Aluminium

Dimensions

3.27” x 1.97” x 0.75” (83x 50x 19 mm)

Weight

1.0 lb (0.45kg)

Compliance

Regulatory: FCCClass A, CE, RoHS

Warranty

2 years

Order Information

500462 HDMI Optical Isolator Kit

HDM

I Optical Isolator Kit

500462

Quick Installation Guide

Overview

The HDMI Optical Isolator (500462) allows HDMI equipment to be completely isolated

and connected up to 984ft (300m), while allowing a unidirectional communication (with

no return signaling) via one (1) LC 50/125 μm

OM3 multimode fiber cable in a point-to-

point configurationat 1080p resolution.

TheHDMI Optical Isolator

establishes ahigh separation between the source computer

and the displaydevices preventing any potential leakage between the source and the

peripheral equipment; removing the vulnerability of shared display equipment to cyber-

attacks.

The kit comes with one (1) Transmitter,one (1) Receiver and two (2) power supply.

Applications

Commercial and residential AV systems, classroom projector systems, digital signage,

boardroom systems, collaborative PC systems, and medical information systems, high

security applications.

Key Features

•Complete optical isolation between source and display.

•Unidirectional HDMI communication.

•No return signaling.

•Fixed EDID configuration.

•Up to 984ft (300m) @ 1080p via one (1) LC multimode fiber.

© MuxLab Inc.94-000776-A SE-000776-A
