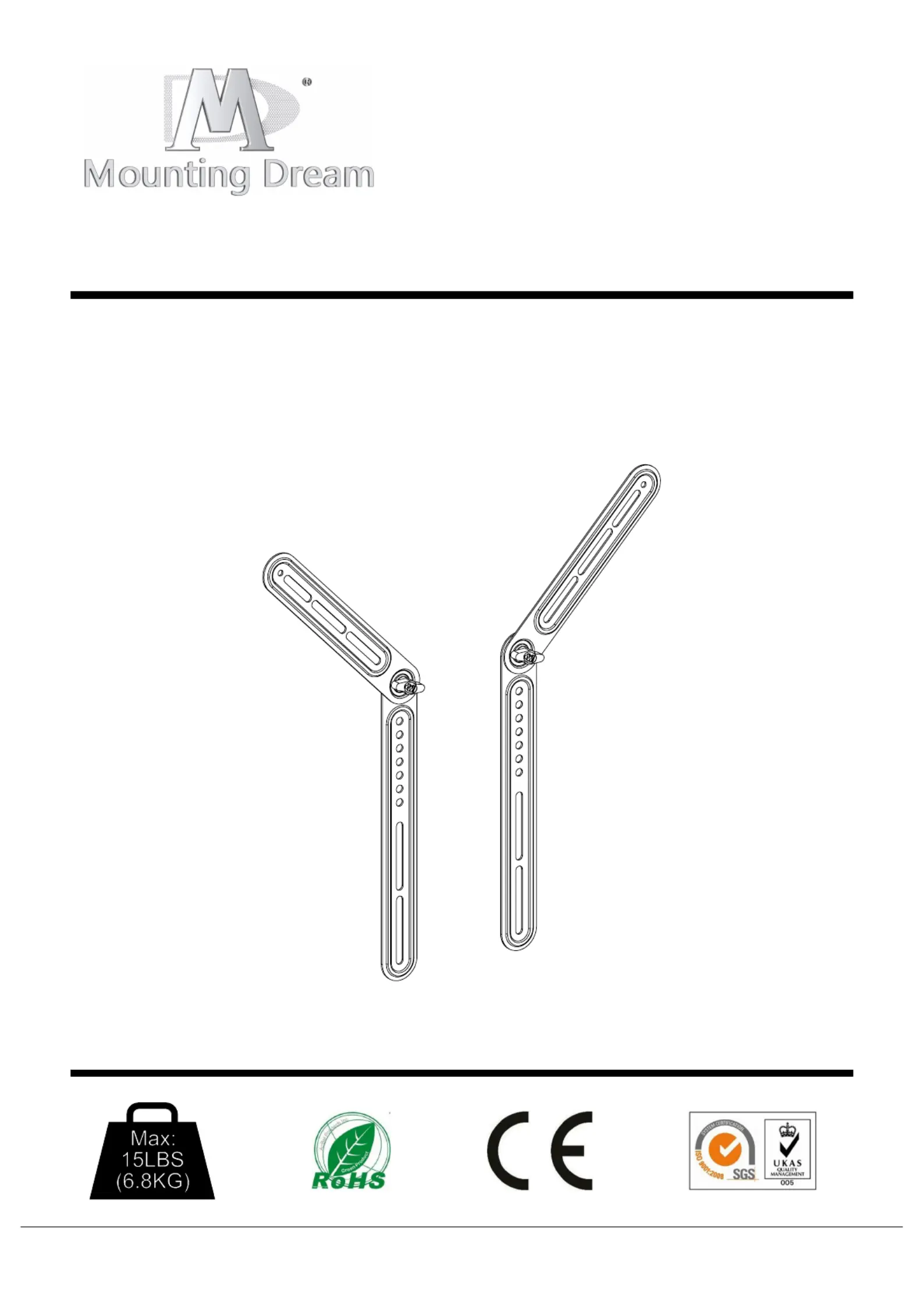

MD5422 INSTALLATION INSTRUCTION
Für die Installationsanweisungen auf Deutsch, siehe Seite 7~8.
Pour l'instruction en Français, veuillez vous reporter à la page 9~10.
Para las instrucciones de la instalación en Español, favor vea la página 11~12.
Per le Istruzioni in Italiano, vedi pagina 13~14.
(C1)
Before You Begin. Please check the following items:
□
The weight of your sound bar DO NOT EXCEED 15LBS (6.8 kg).
□
You must verify that the total weight of your TV, sound bar, sound bar
mount and any accessories must be lower than the maximum
weight rating of your TV mount.
□
You read through the user manuals of your TV, sound bar and TV
mount for additional guidance.
□
You have the tools needed for installation.
Please read this instruction carefully before installation.
● For wall mounted TVs, the wall must be capable of supporting five times the weight of the TV, mount
and sound bar combined.
● Incorrect installation may result in product damage or body injury. Mounting Dream shall bear no
responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
● Do not apply this product to any purpose not indicated by Mounting Dream.
S
afety Caution:
1
Band Tape
2m
Screwdriver
2M2M
Bubble Level
Open-end wrench
2
1-1 Adjust the Brackets to Your Sound Bar
For wide mounting hole spacing
For narrow mounting hole spacing
For soundbar bottom holes, you might need to combine and assemble the extension arms
.
Key Hole Bolt
M4x16mm Bolt M5x16mm Bolt
x2x2 x2
M5/M6 Washer
M6 Butterfly Nut
x4
x2
M6x16mm Bolt
Antiskid Nut
x2
x2
Bracket
x2
x2
Parts and Hardware
WARNING:
This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged.
NOTE:
Not all hardware included will be used.
M6x12mm Bolt
Extension Arm
x2
