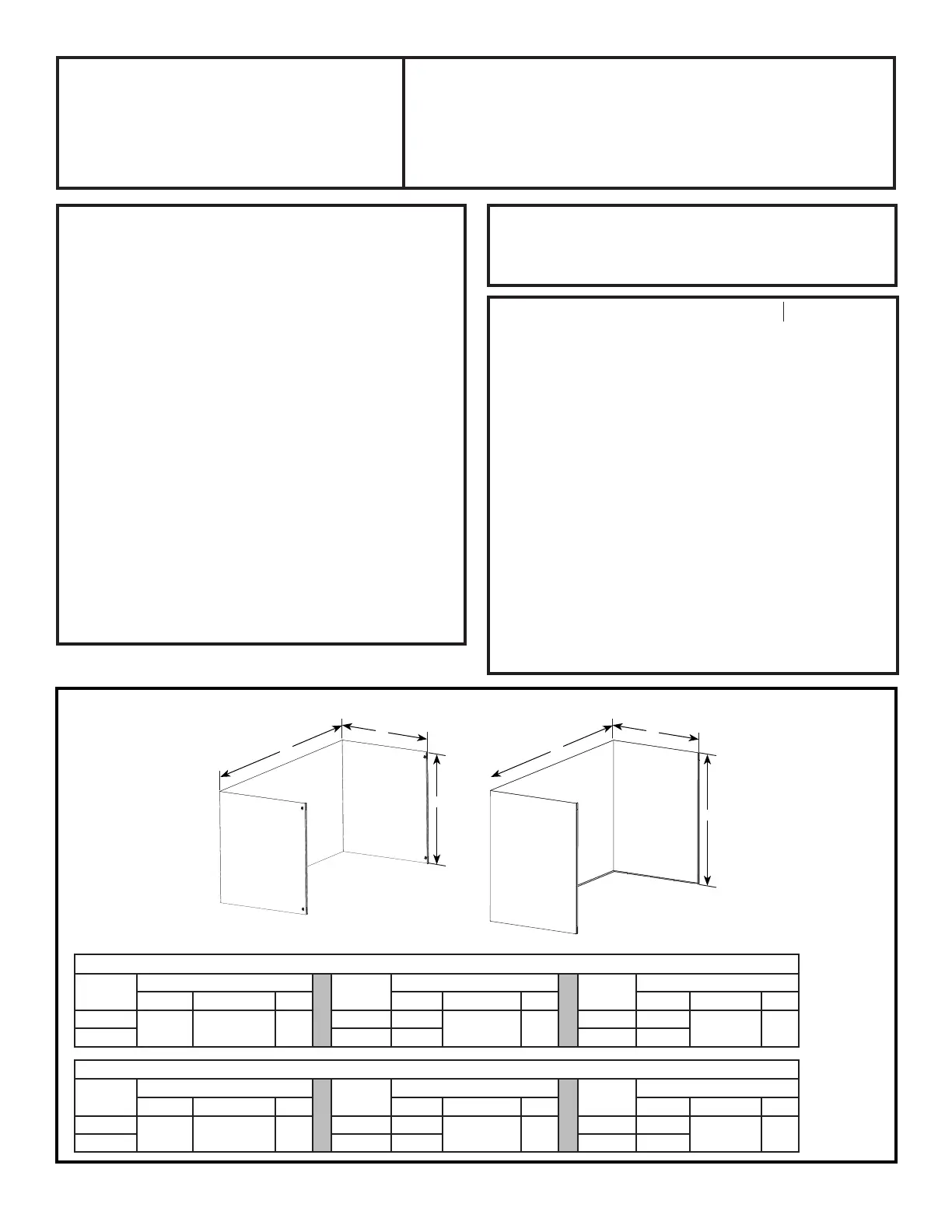

ZX8D13SPXX, ZX8D14SPXX
ZX10D13SPXX, ZX10D14SPXX
ZX12D13SPXX, ZX12D14SPXX
8’, 10’, & 12’ Duct Cover Kits
BEFORE YOU BEGIN
Read these instructions completely and carefully.
■IMPORTANT — Save these instructions
for local inspector’s use.
■IMPORTANT — Observe all governing
codes and ordinances.
■Note to Installer — Be sure to leave these
instructions with the consumer.
■Note to Consumer — Keep these instructions with
your Owner’s Manual for future reference.
■These instructions are applicable to 8’, 10’, and 12’
duct cover kit.
■The duct cover kits include an upper and a lower
duct cover.
■The upper duct cover telescopes within the lower
duct cover to reach the desired ceiling height.
■The installation hardware includes wall brackets to
secure duct covers to the wall.
Installation
Instructions
TOOLS AND MATERIALS REQUIRED
■Glovestoprotectagainstsharpedges
■Safetyglasses
■#2Phillipsscrewdrivers
■Drillwith1/8”bits
■Level
■Pencil
This Kit Includes
■UpperDuctCover
■LowerDuctCover
■2wallBrackets
■Hardwarepackagewith
-Screws3.1x9.5P013QTY:10
-WallAnchorsQTY:4
-Screw4.2x44PZ1QTY:4
31-2000879 Rev. 0 04-21GEA
NOTE: Before making any holes for installations,
determine which venting method will be used and
calculate all measurements.
H
D
W
H
D
W
UpperDuctCoverLowerDuctCover
36” Models
Duct
Cover
8’ KitDuct
Cover
10’ KitDuct
Cover
12’ Kit
HWDHWDHWD
Upper
4-1/2”23-1/4”15”
Upper17”
23-1/4”15”
Upper27”
23-1/4”15”
LowerLower20”Lower34”
48” Models
Duct
Cover
8’ KitDuct
Cover
10’ KitDuct
Cover
12’ Kit
HWDHWDHWD
Upper
4-1/2”35-1/4”15”
Upper17”
35-1/4”15”
Upper27”
35-1/4”15”
LowerLower20”Lower34”
■Seetablesbelowforproductdimensions.
