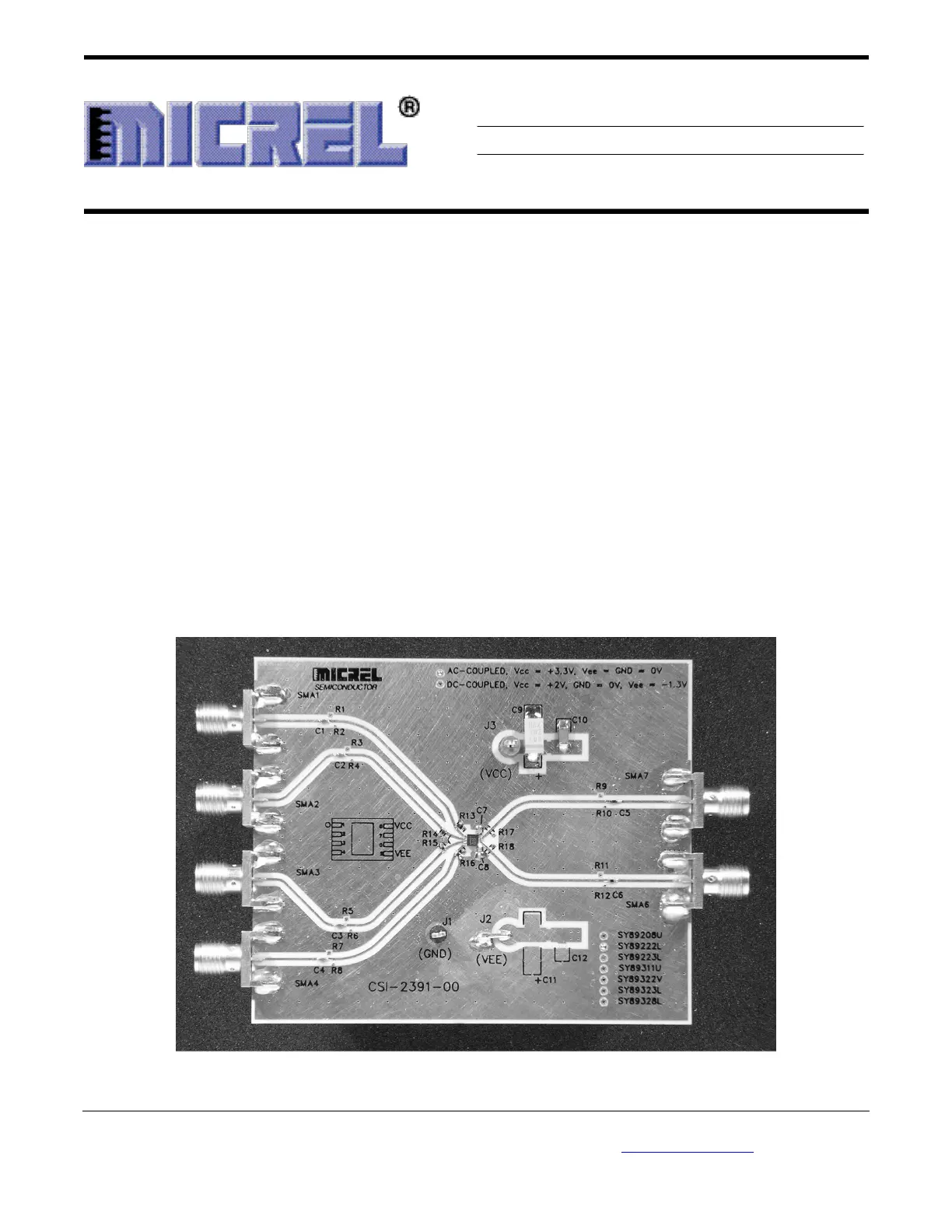

August 2004 M9999-080304
[email protected] or (408) 955-1690
Dual TTL/LVTTL-to-Differential
PECL/LVPECL Translator
SY89222L/SY89322V Evaluation Board
General Description
The SY89222L and SY89322V evaluation boards are
designed for convenient setup and quick evaluation of
these devices.
The evaluation board standard configuration is AC-
coupled for direct interface to a 50Ωcompatible
oscilloscope without split supplies. For applications
that require a DC-coupled configuration, step-by-step
instructions for modifying the board are included.
The boards are fully assembled and tested. All data
sheets and support documentation can be found on
Micrel’s web site at www.micrel.com.
Features
•SY89222L: Single +3.3V power supply
•SY89322V: Single +3.3V or +5V power supply
•AC-coupled configuration for ease-of-use
•I/O interface includes on-board termination
•Fully assembled and tested
•Reconfigurable for DC-coupled operation
Related Documentation
•SY89222L, 3.3V Dual TTL-to-Differential PECL
Translator data sheet
•SY89322V, 3.3V/5V Dual LVTTL/LVCMOS-to-
Differential LVPECL Translator data sheet
