2018 Microchip Technology Inc.DS20005605A-page 1
SY58608U
Features
•Precision 1:2 LVDS Fanout Buffer
•Guaranteed AC Performance Over Temperature
and Voltage:
-DC-to > 3.2Gbps Throughput
-<300ps Propagation Delay (IN-to-Q)
-<20ps Within-Device Skew
-<100ps Rise/Fall Times
•Fail Safe Input
-Prevents Outputs From Oscillating When
Input Is Invalid
•Ultra-Low Jitter Design
-130fs
RMS
Typical Additive Phase Jitter
-High-Speed LVDS Outputs
•2.5V ±5% Power Supply Operation
•Industrial Temperature Range: –40°C to +85°C
•Available In 16-pin (3mm x 3mm) QFN Package
Applications
•All SONET Clock And Data Distribution
•Fibre Channel Clock And Data Distribution
•Gigabit Ethernet Clock And Data Distribution
•Backplane Distribution
Markets
•DataCom
•Telecom
•Storage
•ATE
•Test and Measurement
General Description
The SY58608U is a 2.5V, high-speed, fully differential
1:2 LVDS fanout buffer optimized to provide two
identical output copies with less than 20ps of skew and
130fs
RMS
typical additive phase jitter. The SY58608U
can process clock signals as fast as 2GHz or data
patterns up to 3.2Gbps.
The differential input includes Microchip’s unique, 3-pin
input termination architecture that interfaces to
LVPECL, LVDS or CML differential signals, (AC- or
DC-coupled) as small as 100mV (200mV
PP
) without
any level-shifting or termination resistor networks in the
signal path. For AC-coupled input interface
applications, an integrated voltage reference (V
REF-AC
)
is provided to bias the V
T
pin. The outputs are 325mV
LVDS, with rise/fall times guaranteed to be less than
100ps.
The SY58608U operates from a 2.5V ±5% supply and
is guaranteed over the full industrial temperature range
(–40°C to +85°C). The SY58608U is part of Microchip’s
high-speed, Precision Edge
®
product line.

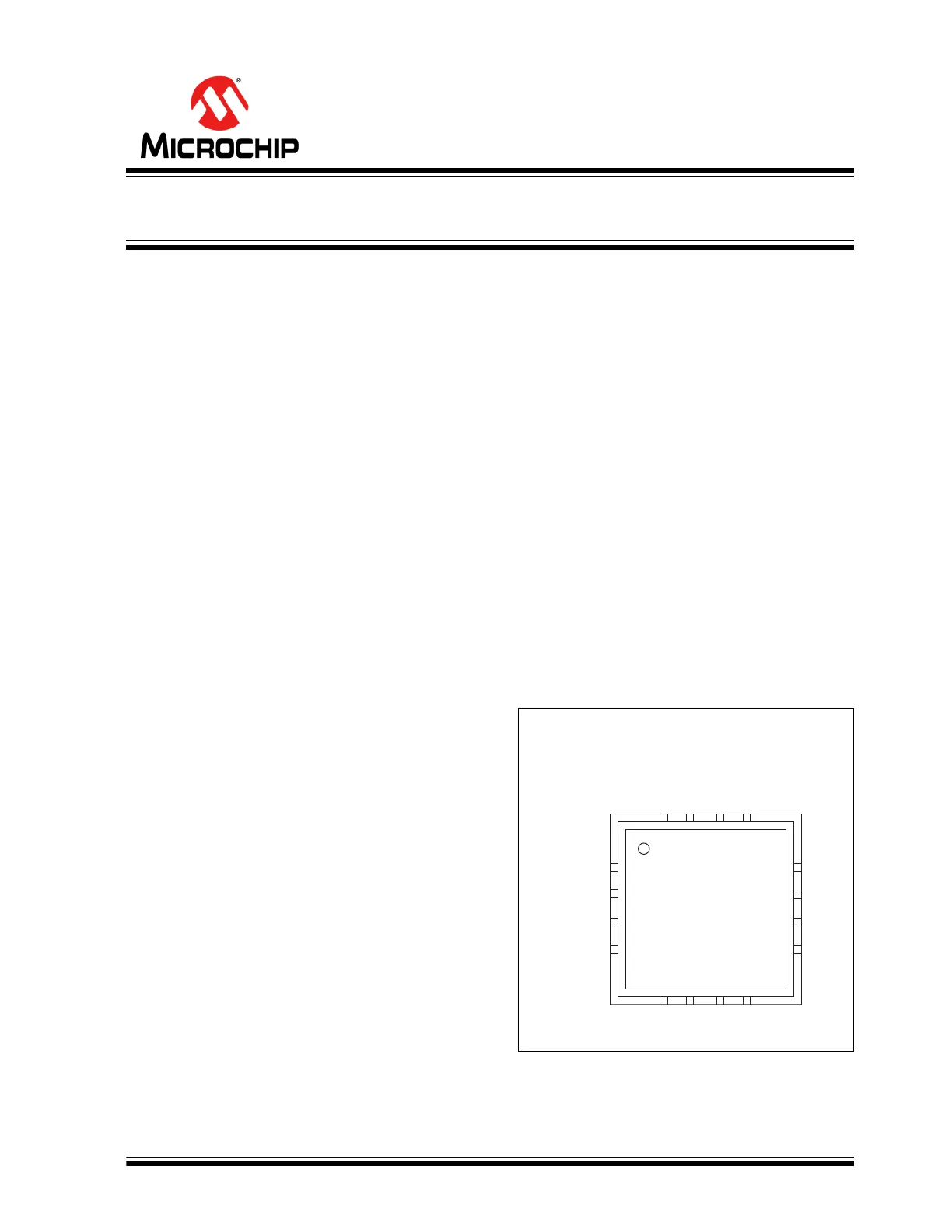

Package Type
SY58608U
3x3 QFN-16
Top View
13141516
12
11
10
9
1
2
3
4
8765
IN
VT
VREF-AC
/IN
Q0
/Q0
Q1
/Q1
VCC
GND
GND
VCC
VCC
GND
GND
VCC
3.2Gbps Precision, 1:2 LVDS Fanout Buffer with Internal Termination and
Fail Safe Input
