SY54016R
Low Voltage 1.2V/1.8V CML Differential Line
Driver/Receiver with Fail Safe Input
3.2Gbps, 2.5GHz
Precision Edge is a registered trademark of Micrel, Inc.
MLF and MicroLeadFrame are registered trademarks of Amkor Technology.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • ht
tp://www.micrel.com
General Description
The SY540
16R is a fully differential, low voltage
1.2V/1.8V CML Line Driver/Receiver with Fail-Safe
Input. The SY54016R can process clock signals as fast
as 2.5GHz or data patterns up to 3.2Gbps.
The differential input includes Micrel’s unique, 3-pin
input termination architecture that interfaces to LVPECL,
LVDS or CML differential signals, as small as 100mV
(200mV
PP
) without any level-shifting or termination
resistor networks in the signal path. For AC-coupled
input interface applications, an internal voltage
reference is provided to bias the V
T
pin. The outputs are
CML, with extremely fast rise/fall times guaranteed to be
less than 95ps.
The SY54016R operates from a 2.5V ±5% core supply
and a 1.8V or 1.2V ±5% output supply and is
guaranteed over the full industrial temperature range
(–40°C to +85°C). The SY54016R is part of Micrel’s
high-speed, Precision Edge
®
product line.
Data sheets and support documentation can be found
on Micrel’s web site at: www.micrel.com
.

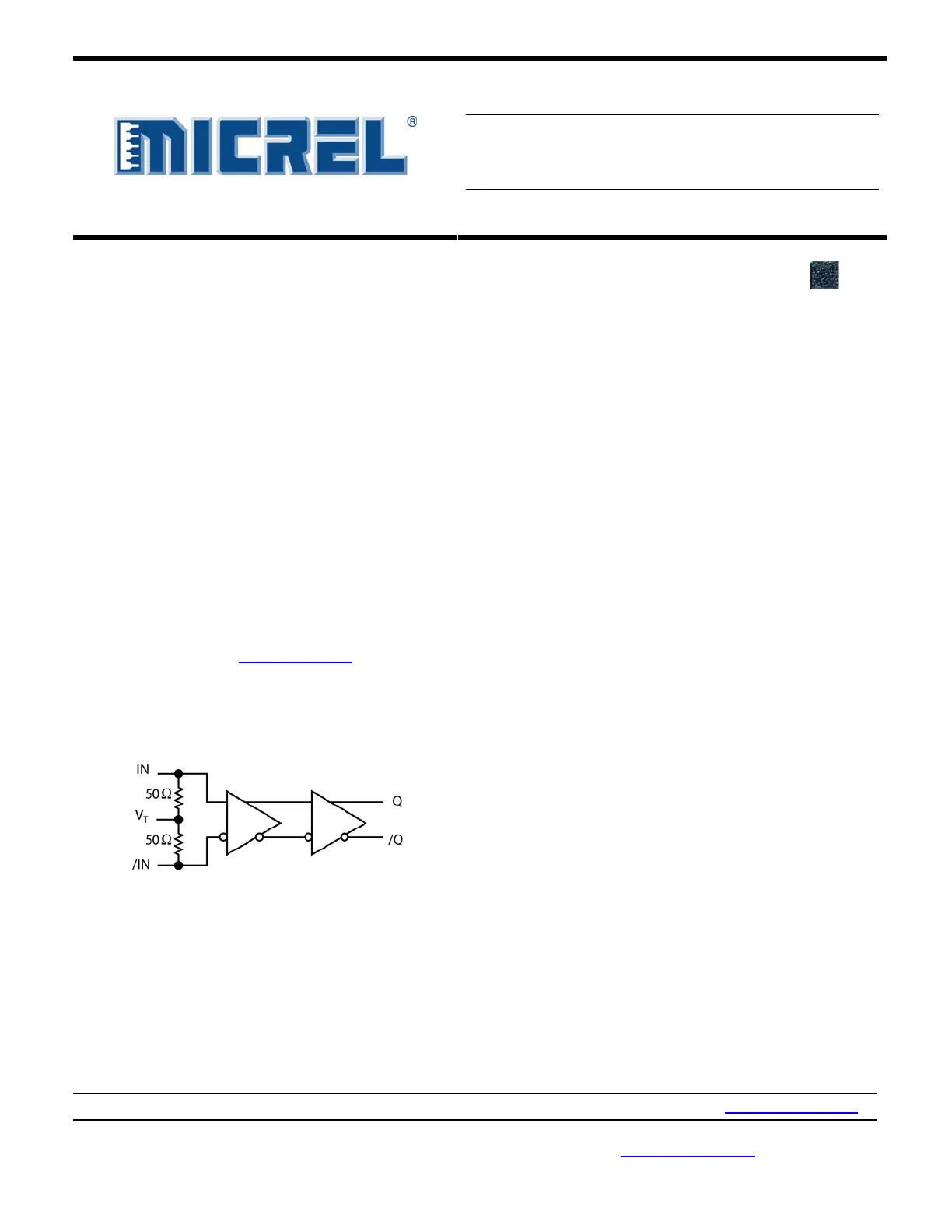

Functional Block Diagram
Precision Edge
®
Features
•1.2V/1.8V CML Line
Driver/Receiver with Fail-Safe
Input
•Guaranteed AC performance over temperature and
voltage:
–DC-to- > 3.2Gbps throughput
–<370ps propagation delay (IN-to-Q)
–<95ps rise/fall times
•Ultra-low jitter design
–<1ps
RMS
random jitter
•High-speed CML outputs
•2.5V ±5% , 1.8/1.2V ±5% power supply operation
•Industrial temperature range: –40°C to +85°C
•Available in 8-pin (2mm x 2mm) MLF
®
package
Applications
•Data Distribution: OC-48, OC-48+FEC
•SONET clock and data distribution
•Fibre Channel clock and data distribution
•Gigabit Ethernet clock and data distribution
Markets
•Storage
•ATE
•Test and measurement
•Enterprise networking equipment
•High-end servers
•Metro area network equipment
June 2010
M9999-061110-A
or (408) 955-1690
