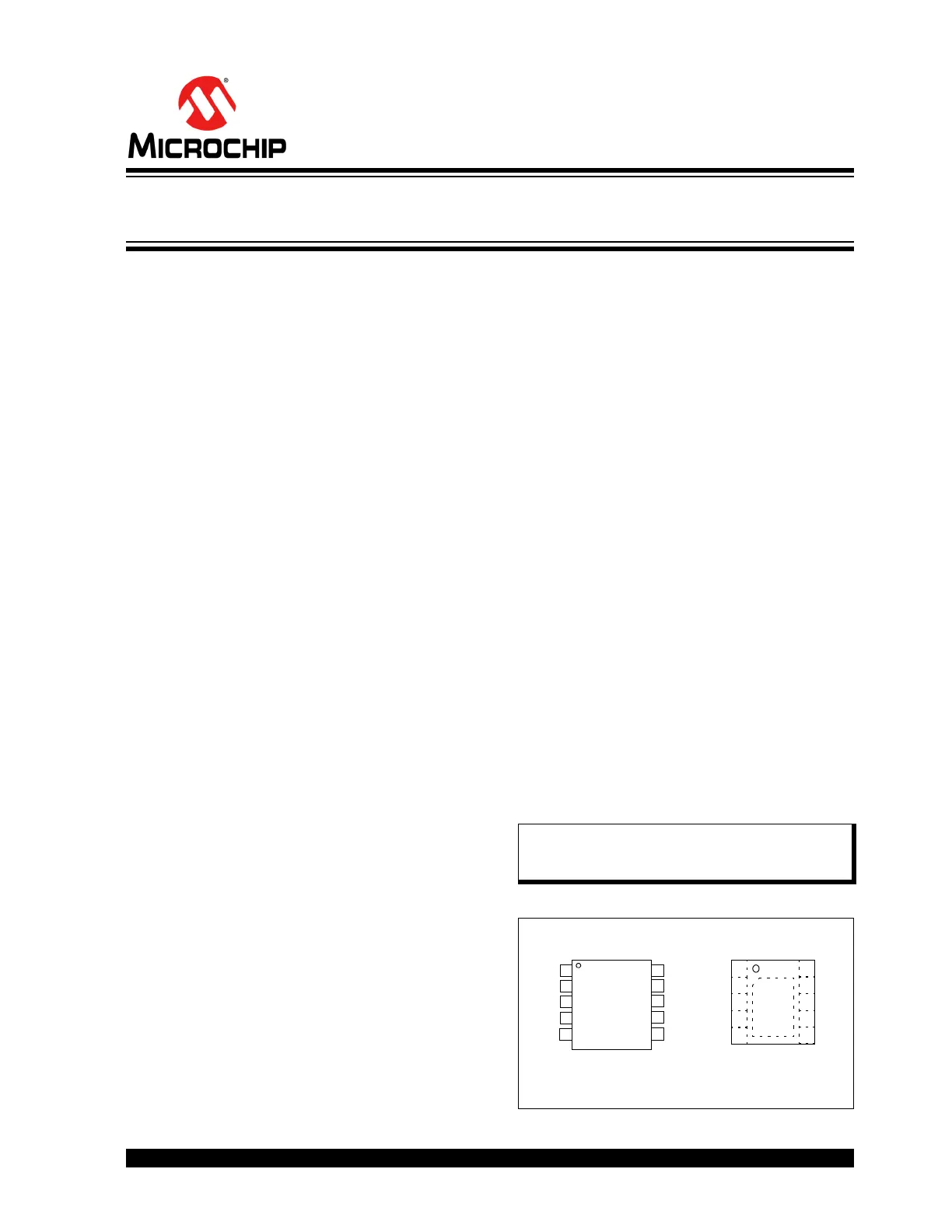

MCP1641X

 2020-2021

Microchip Technology Inc. and its subsidiaries

DS20006394D-page 1

Features

•Input Voltage Range: 0.8V (after Start-up) 

to 5.25V

•Low Device Quiescent Current: 5 µA (typical),

PFM Mode (not switching)

•Up to 96% Efficiency

•1A Typical Inductor Peak Current Limit:

-I

OUT

> 170 mA at 2V V

OUT

, 1.2V V

IN

-I

OUT

> 200 mA at 3.3V V

OUT

, 1.5V V

IN

-I

OUT

> 600 mA at 5.0V V

OUT

, 3.6V V

IN

•Adjustable Output Voltage Range

•Automatic Input-to-Output Bypass Operation

•Selectable Switching Mode:

-PWM operation: 500 kHz (MCP16412/4/6/8)

-Automatic PFM/PWM operation

(MCP16411/3/5/7)

•Programmable

Undervoltage Lockout (UVLO)

•Programmable Low Battery Output (LBO)

•Selectable Status Indicator:

-Power Good and Die Overtemperature 

output (MCP16411/2/3/4)

-Power Good output (MCP16415/6/7/8)

•Internal Synchronous Rectifier

•Internal Compensation

•Inrush Current Limiting and Internal Soft Start

•Low Noise, Anti-Ringing Control

•Thermal Shutdown

•Selectable Shutdown States:

-Output discharge option (MCP16411/2/5/6)

-Input-to-output bypass option

(MCP16413/4/7/8)

•Shutdown Current: 2.3 µA (typical)

•Available Packages:

-10-Lead MSOP

-10-Lead 3 mm x 3 mm TDFN

Applications

•Personal and Health Care Products

•Single-Cell or Two-Cell Powered IoT Devices

•Bluetooth

®

Headsets

•Remote Controllers, Portable Instruments

•Wireless Sensors, Data Loggers

Description

The MCP1641X Step-up DC-DC Converters family

provides an automatic input-to-output voltage bypass

operation, which helps optimize battery utilization and

achieve high efficiency, while the nominal voltage of

fresh batteries remains in the same range with the con-

verter’s output value. The MCP1641X can be powered

by either single-cell, two-cell alkaline/NiMH batteries or

single-cell Li-Ion/Li-Polymer batteries.

A low-voltage designed architecture allows the

regulator to start up without high inrush current or

output voltage overshoot from a low input voltage. The

start-up voltage is easily programmed by a resistive

divider connected to the UVLO pin. If the resistive

divider is not used, the default start-up voltage is 0.85V.

The 0.8V built-in UVLO

STOP

helps prevent deep dis-

charge of the alkaline battery, which can cause battery

leakage. An open-drain Low Battery Output (LBO) pin

warns the user to replace the battery if the input voltage

ramps down to the programmed UVLO

START

value.

The MCP1641X family introduces an additional safety

feature to a low-voltage boost converter: Over-

temperature Output. Devices, such as personal care

products, Bluetooth headsets or toys, will benefit from

the combined Power Good and Die Overtemperature

(PGT) output, which flags a warning signal when the out-

put voltage level drops within 10% or the die temperature

exceeds the +75°C (typical).

(1)

Both functions are

implemented in the MCP16411/2/3/4 devices (on the

same pin, PGT), while the MCP16415/6/7/8 devices

have only the Power Good option.

Package Types

Note1:Factory programmable from +55C to

+85C, at +10C increments, by customer

request.

*Includes Exposed Thermal Pad (EP), see Table 4-1.

**See Table 3-1 for device options – PGT or PG pin.

MCP1641X

3x3 TDFN*

1

2

3

4

10

9

8

7

EP

11

8

1

2

3

10

V

IN

P

GND

LBO

V

FB

PGT**

9

S

GND

MCP1641X

10-Lead MSOP

7

4

SW

V

OUT

5

6

5

6

EN

UVLO

LBO

V

FB

V

OUT

UVLO

V

IN

P

GND

S

GND

SW

EN

PGT**

Low I

Q

Boost Converter with Programmable Low Battery, UVLO and

Automatic Input-to-Output Bypass Operation
