CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

Metra. The World’s Best Kits.

®



MetraOnline.com © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 11/6/17 INST99-8244HG

INSTALLATION INSTRUCTIONS

99-8244HG

KIT FEATURES

• ISO DIN radio provision with pocket

• Painted high gloss black

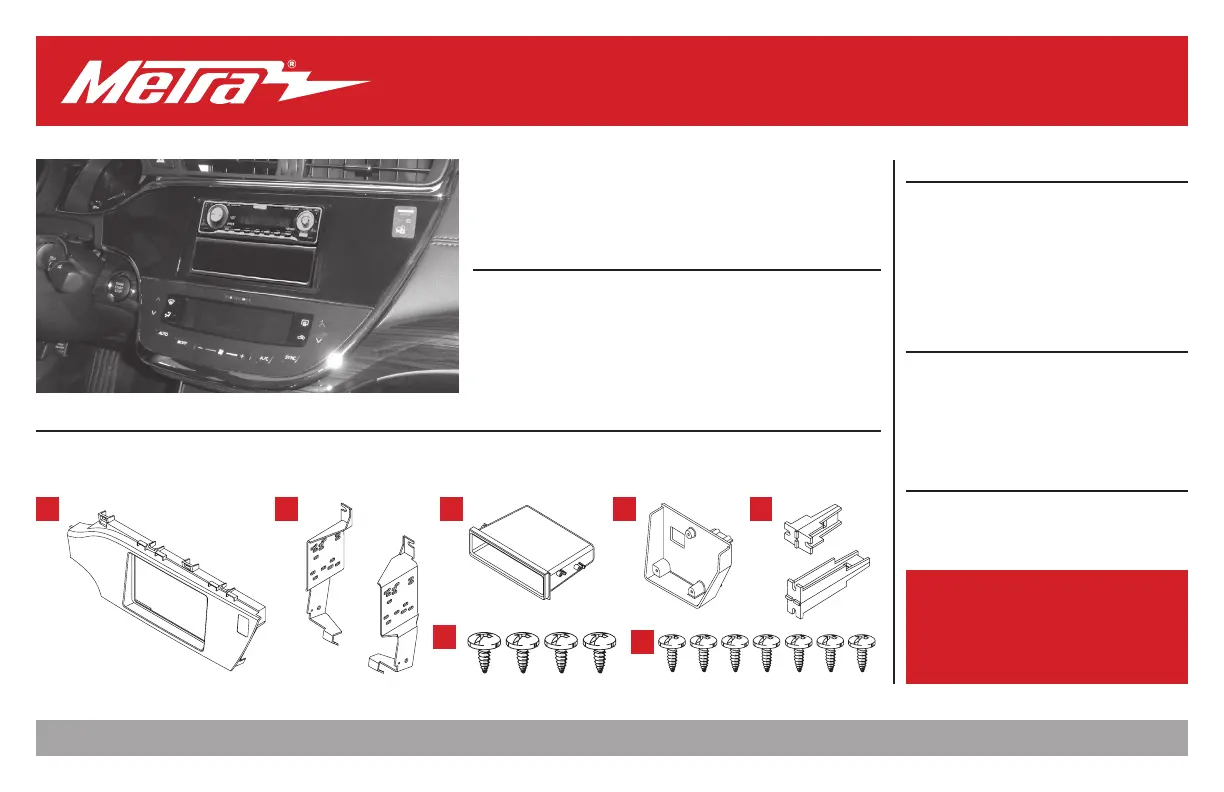

KIT COMPONENTS

• A) Radio housing • B) Radio brackets • C) Pocket • D) (1) Passenger Air Bag Light board cover • E) (2) Panel clip mounts

• F) (4) #8 x 3/8” pan-head Phillips screws • G) (7) #4 x 3/8” pan-head Phillips screws • H) (1) Air-Bag sticker (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Socket wrench

TABLE OF CONTENTS

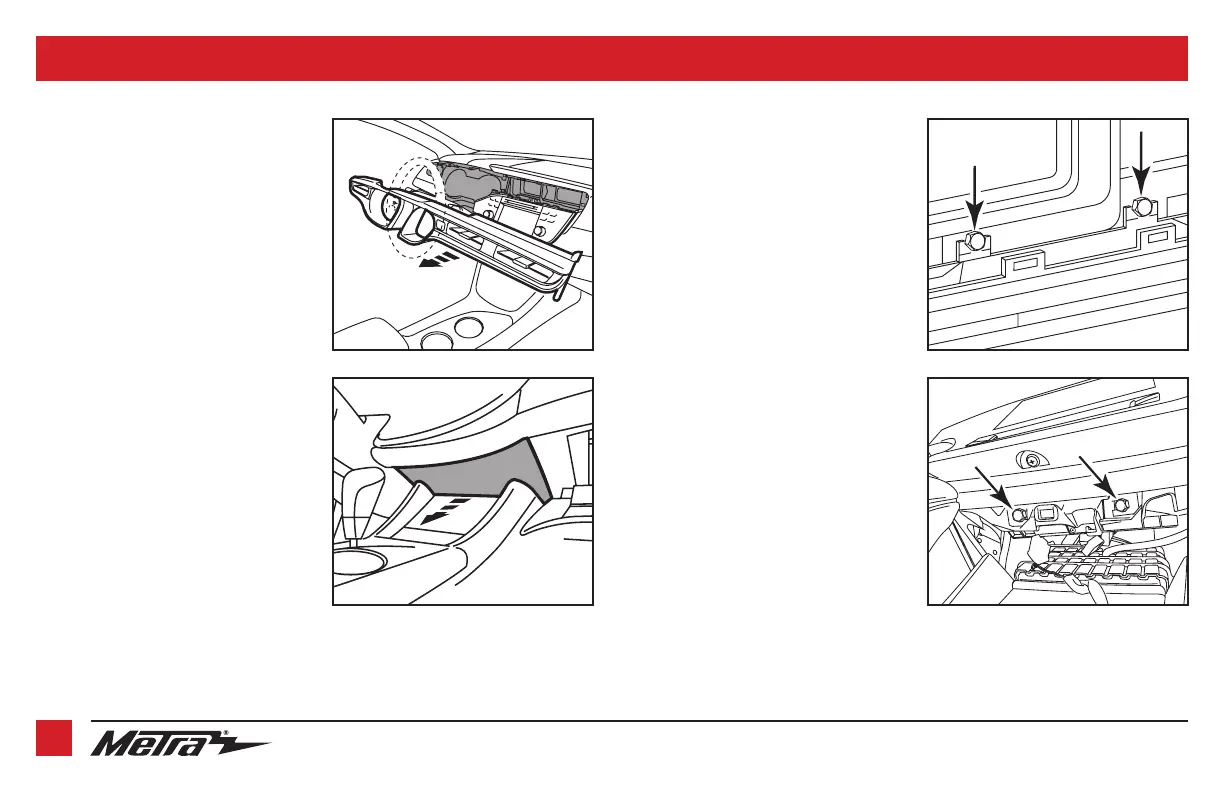

Dash Disassembly ..............................................2-5

Kit Preparation .......................................................6

Kit Assembly

–ISO DIN radio provision with pocket ..................7

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: 70-1761 • TYTO-02 (For models

with a JBL amp)

Antenna Adapter: 40-LX11

Toyota Avalon2013-up*

*Visit MetraOnline.com for up-to-date vehicle specific applications.

ABC

F

D

G

E
