REV. 2/20/2017 INST99-6537B

INSTALLATION INSTRUCTIONS FOR PART 99-6537B

METRA – The World’s best kits.

®

metraonline.com

© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION

CAUTION!

All accessories, switches, climate controls panels,

and especially air bag indicator lights must be connected before

cycling the ignition. Also, do not remove the factory radio with

the key in the on position, or while the vehicle is running.

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Painted Black

• Touchscreen display for climate and

personalization features

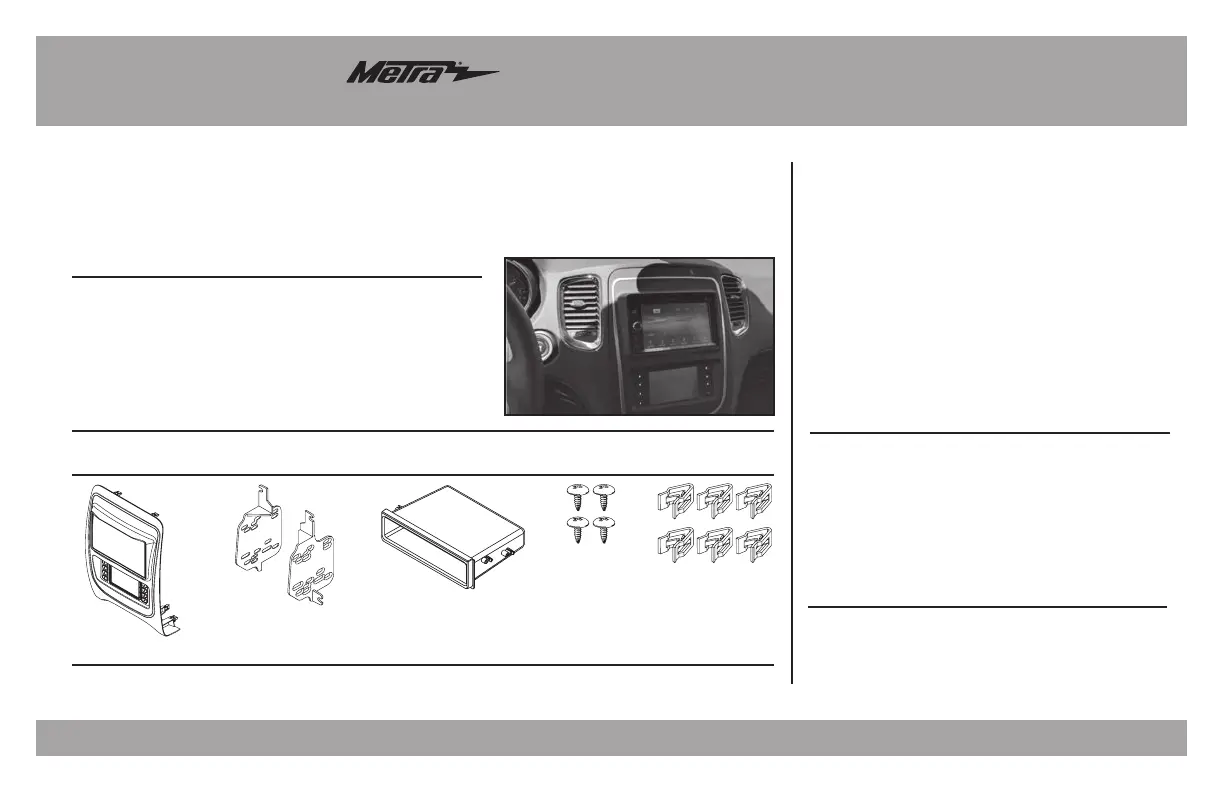

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket

• D) (4) #8 x 3/8” Phillips screws • E) (6) Panel clips • F) HVAC interface and wiring harness (not shown)

KIT FEATURES

KIT COMPONENTS

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • 5.5mm socket wrench

TOOLS REQUIRED

Dodge Durango 2014-up

99-6537B

Table of Contents

ABCD

E

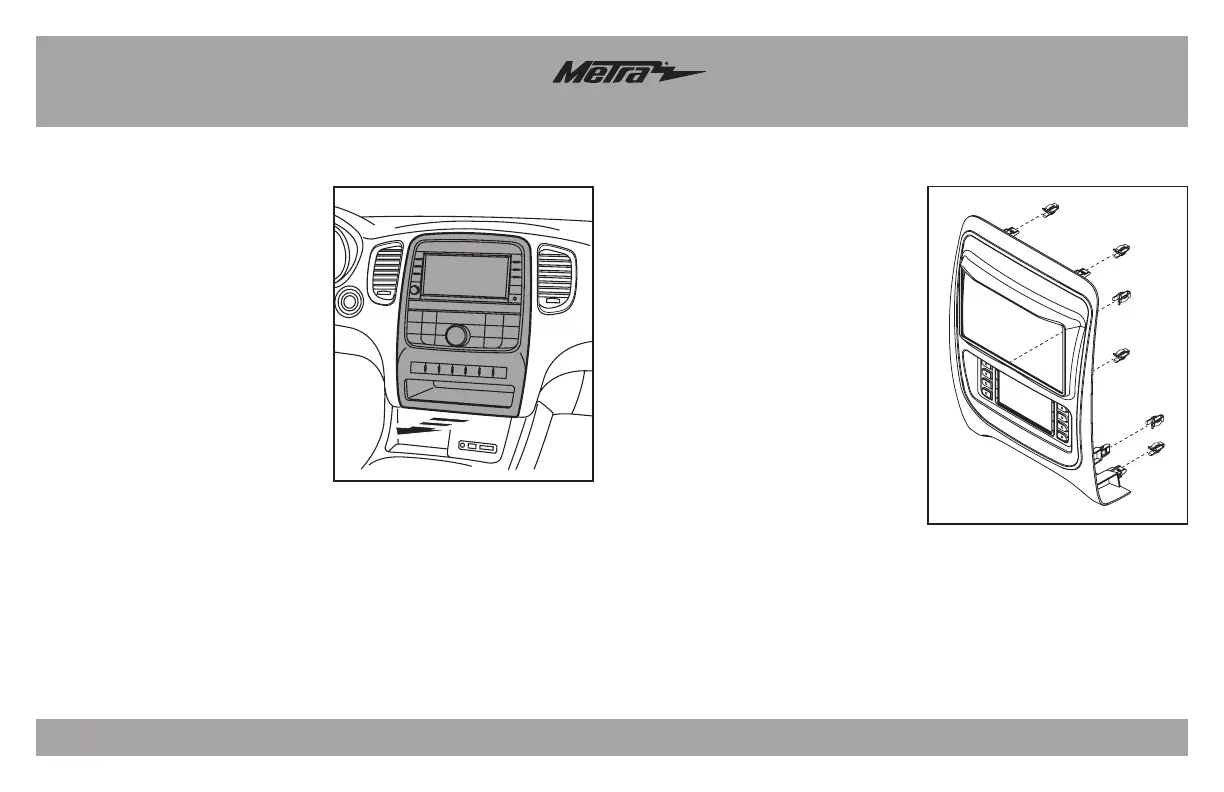

Dash Disassembly .................................................2

Kit Preparation .......................................................2

Kit Assembly

–ISO DIN radio provision with pocket ......................3

–ISO DDIN radio provision ......................................3

Axxess Interface Installation ...........................4-13

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface and harness included Antenna Adapter: 40-EU55 (sold separately)

Product specificaties
