METRA. The World’s best kits.
™
metraonline.com
© COPYRIGHT 2015 METRA ELECTRONICS CORPORATION
REV. 12/4/2015 INST99-6525
CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.

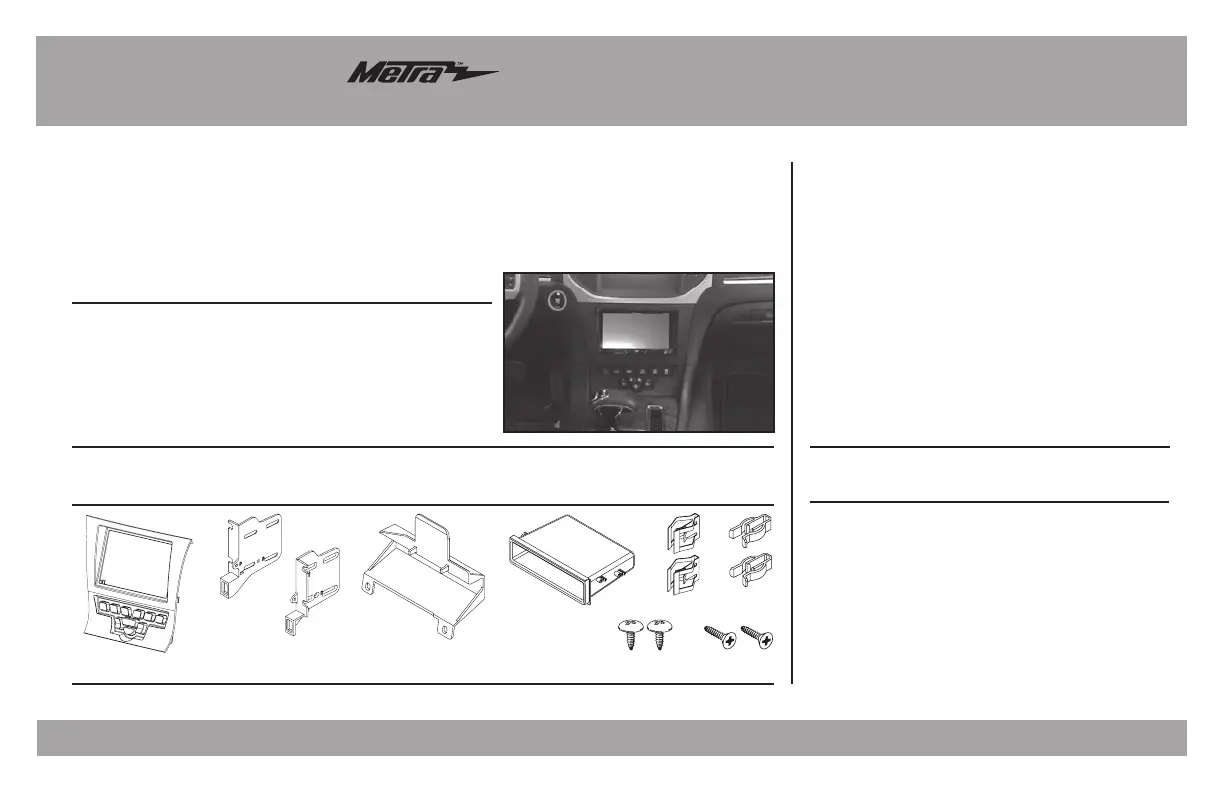

Installation instructions for part 99-6525
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Integrated buttons and included interface for climate functions
• Painted matte black (99-6525B)
or high gloss black (99-6525HG)
• A) Radio trim panel with climate controls • B) Radio brackets • C) Lower support bracket • D) Pocket • E) (2) Metal panel clips
• F) (2) Plastic panel clips • G) (2) #8 x 3/8” Phillips pan-head screws • H) (2) #8 x 1/2” Phillips countersunk flat-head screws
• Climate extension cable (not shown) • Axxess interface and wiring harness (not shown)
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included Antenna Adapter: • 40-EU10
• Panel removal tool • Phillips screwdriver
• T-30 Torx driver
TOOLS REQUIRED
Chrysler 300 2011-2014
(with a 8” screen)
99-6525
A
DC
E
F
G H
B
Dash Disassembly ................................................. 2
Kit Assembly
– ISO DIN radio provision with pocket ...................... 3
– ISO DDIN radio provision ...................................... 4
Axxess interface installation ..............................5-6
Screen Operation ................................................... 7
Updating the 99-6525 ............................................ 8
Table of Contents
99-6525
2
Dash Disassembly
1. Unclip and remove the top half of
the shift knob. (Figure A)
2. Remove (1) T-30 Torx screw
securing the knob and then
remove. (Figure B)
3. Unclip and remove the panel
surrounding the shift knob.
(Figure C)
4. Unclip and remove the climate
control/radio control panel.
Note: The harness removed from
this panel will connect to the
climate extension cable.
(Figure D)
5. Remove (2) Phillips screws
securing the pocket below the
climate control panel, and then
unclip and remove the pocket.
(Figure E)
6. Remove the (4) Phillips screws
securing the radio chassis, and
then unplug and remove it from
the dash cavity. Note: The white
round cable connected to the
radio chassis will connect into
the Axxess interface to drive the
factory display screen.
Continue to kit assembly.
(Figure D)(Figure A)
(Figure C)
(Figure E)(Figure B)
