Copyright © 2011 Lorex Technologies Inc.

As our products are subject to continuous improvement, Lorex reserves the right to modify product design,

specifications and prices, without notice and without incurring any obligation. E&OE

2.6"/

66mm

Cable Extension Options

ProblemSolution

No Picture/Signal

•Ensure your TV is on the correct input channel.

Common terms of an input channel: INPUT, AV

CHANNEL, LINE1, LINE2, AUX.

•If your camera is connected to a VCR/DVR,

ensure it is properly connected to your TV/

Monitor.

•Ensure connections are properly connected.

•Ensure the camera power supply is plugged in.

Picture is too bright

•Ensure your camera isn’t pointed directly at a

source of light (e.g sun or spot light).

•Slide the sunshade (bullet cameras featuring

adjustable sunshades only) forward to block

excess light.

•Move your camera to a different location.

Picture is too dark

•If using during the day, the camera may not be

getting enough light. Slide the sunshade (bullet

cameras featuring adjustable sunshades only)

backwards to let in more light.

•Check the brightness and contrast settings of the

device your camera connects to (TV/Monitor/

DVR).

Night Vision is not

working

•The night vision activates when light levels drop.

The area may have too much light.

Picture is not clear

•Check the camera lens for dirt, dust, spiderwebs.

Clean the lens with a soft, clean cloth.

•Make sure that the cable run is within the

limitations specified in the section ' Cable

Extension Options'

Bright spot in video

when viewing cam-

era at night

•Night vision reflects when pointing a camera to

a window. Move the camera to a different

location.

BNC connection

does not connect to

my TV

•Use a BNC to RCA adapter at the end of the

extension cable.

Troubleshooting

OptionCable Type

1

Regular BNC

(supplied with

camera)

180ft / 55m

3

2

'RG59' or 'Coax'

or ' Coaxial' BNC

(sold separately)

300ft / 92m

5

3

Lorex Universal

Cable

(sold separately)

300ft / 92m

3

Max. Cable

Run Distance

Notes:

1.For optimal performance, consider using option 2 or 3. Preference for using

the same cable type for the entire distance.

2.Cable run recommendation based on typical camera power consumption

(up to 500mA). For specialty cameras with higher current consumption,

maximum cable run may be reduced. Consider providing power to the

camera at the camera side rather then at the end of the extension cable.

3.Indicators that your cable run may be too long:

• Video is permanently Black & White (even during day time)

• Video is distorted

Max. # of

Extensions

www.lorextechnology.com

Extend the cable run for your camera up to 300ft or more

depending on the cable type used. See table below:

4.2"/

107mm

*IR Illumination range under ideal conditions. Objects at or beyond this range may be partially or

completely obscured, depending on the camera application.

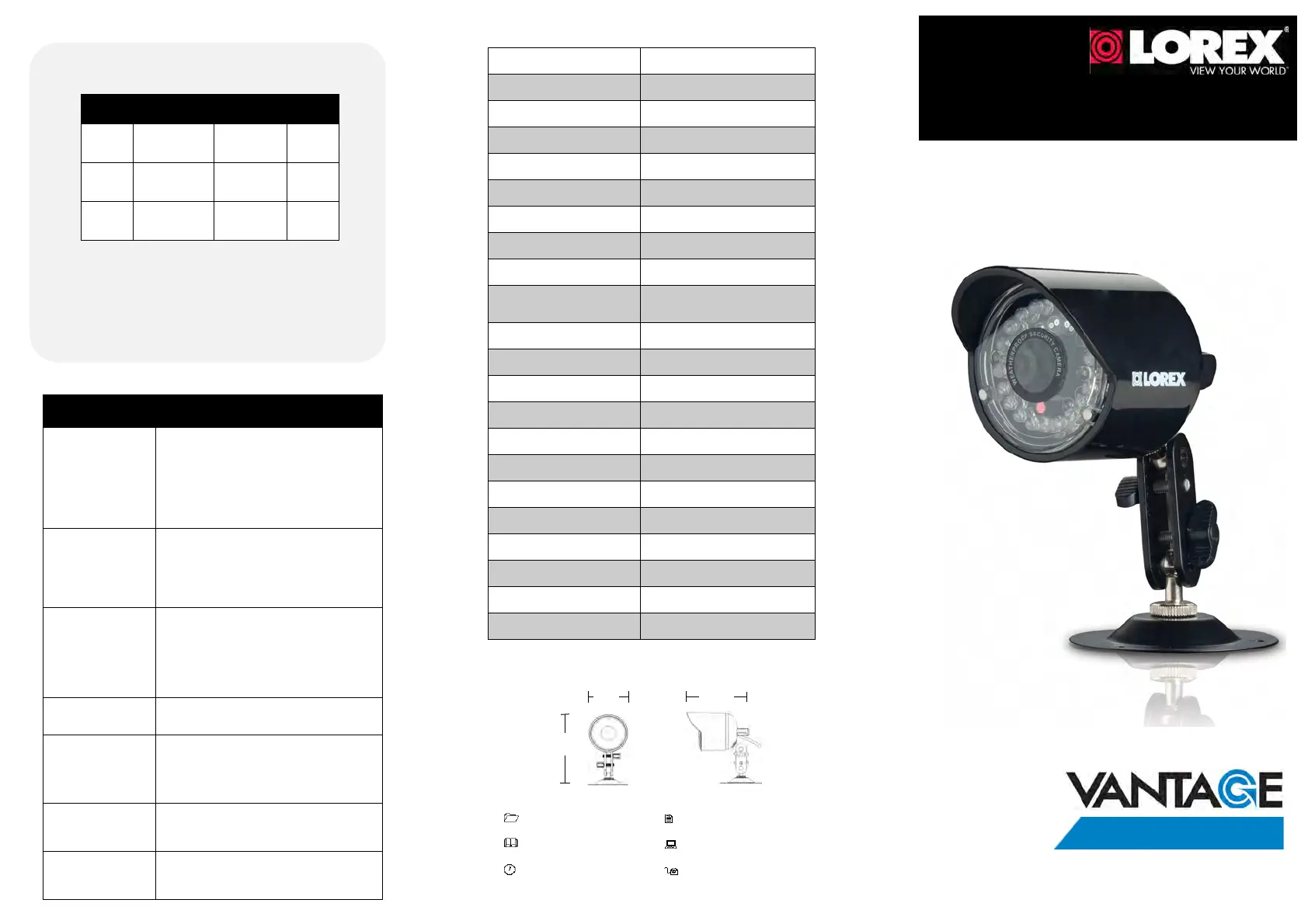

SUPER RESOLUTION WEATHERPROOF

NIGHT VISION SECURITY CAMERA

English Version 3.0

QUICK START GUIDE

Image Sensor1/3" Color Image Sensor

Video FormatNTSC

Effective PixelsH: 720 V: 480

Resolution600+ TV Lines

Scan System2:1 Interlace

Sync SystemInternal

S/N Ratio48dB (AGC Off)

IrisAES

AES Shutter Speed1/60 ~ 1/25,000 Sec.

Min. Illumination0.1 Lux without IR LED

0 Lux with IR LED

Video OutputComposite 1.0Vpp @75 ohm

Lens / Lens Type3.6mm F2.0 / Fixed

FOV (Diagonal)78°

TerminationBNC Type

IR LED Qty / Type18 pieces / 850nm

Night Vision Range*60ft / 18m

Power Requirement12V DC ±10%

Power ConsumptionMax. 240mA (w/IR)

Operating Temp. Range–22° ~ 122°F / –30° ~ 50°C

Operating Humidity Range< 90% RH

Environmental Rating**IP66

Weight (including stand)0.6lbs / 0.3kg

5.2"/

132mm

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

**Not intended for submersion in water. Installation in a sheltered location recommended.

CVC7575 Series

WWW.LOREXTECHNOLOGY.COM

Camera Specifications
