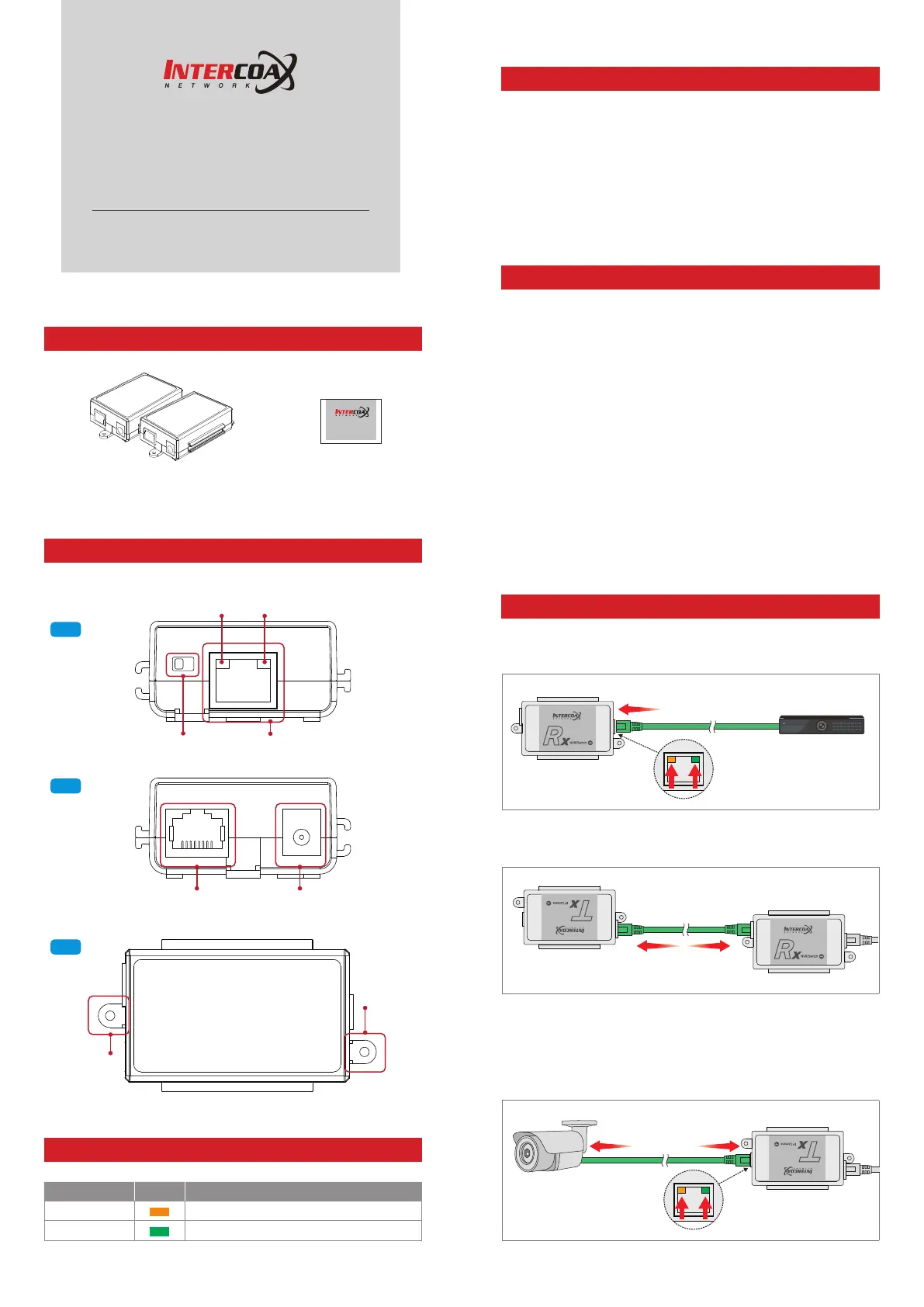

Hardware Overview
Package
EUP-01T (Transmitter)
EUP-01R (Receiver)
Quick Start
Guide
Overview
EUP-01 Series are High-Speed, long distance Ethernet & PoE extender
that makes possible to transmit the Ethernet signal and PoE up to
400m through UTP cable. It is cost-effective and time saving solution
to migrate existing system to IP based system since EUP-01 series
support easy installation utilizing the existing UTP cables. With long
distance transmission feature, the device makes to overcome 100
meters distance limitation easily and reduces the construction cost
significantly compared with fiber optic configuration.
Features
Long reach Ethernet & PoE extention over UTP cable
Data + Power over UTP cable
Data & PoE distance up to 400m
Data up to 100Mbps
100Mbps Full Duplex
Multicast ready
PoE, PoE+, Extra PoE (Max. 60W PoE output, EUP-01T model only
with DC Power adaptater
PoE ON/OFF Switch (EUP-01T only)
LED Indication (Data, Power)
Plug & Play
Built-in surge protection
Support PoE, PoE+ Input (25.5W) from PoE Switch / PoE NVR
Slim design
Quick Start Guide
EUP-01T / EUP-01R
Please read carefully the instruction manual before use.
Contents of this manual are subject to change without prior
notice for reasons such as functionality enhancements.
Installation Guide
1. Connect Ethernet cable (Cat5e or better) from PoE Switch/NVR to
EUP-01R. Check LEDs on EUP-01R.
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better)
PoE Switch/NVR
Check LEDs
Check LEDs
Ethernet cable
(Cat5e or better)
2. Connect Ethernet cable to EUP-01R.
Connect Ethernet cable from EUP-01R to EUP-01T.
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better)
PoE Switch/NVR
Check LEDs
Check LEDs
Ethernet cable
(Cat5e or better)
3. Connect Ethernet cable (Cat5e or better) from EUP-01T to IP
Camera (PoE Model Only). Check LEDs on EUP-01T.
Î
Set EUP-01T, PoE Switch ON to supply direct power to IP camera.
Set EUP-01T, PoE Switch OFF to connect PC or network switch
devices.
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better)
PoE Switch/NVR
Check LEDs
Check LEDs
Ethernet cable
(Cat5e or better)
LED Indicators
Indicator Color Function
LINK Ethernet Data Act
ACT Ethernet Connect Act
Rev.1.0
Right
Left
Top
상태 표시등
LINK
상태 표시등
ACT
RJ45
DC 전원 어댑터 RJ45
제품 고정
나사용 홀
제품 고정
나사용 홀
PoE 스위치 ON/OFF
(EUP-01T 만 해당)
Status LED Indicator
LINK
Status LED Indicator
ACT
DC Power Jack
PoE Switch ON/OF
(EUP-01T only)
Mounting
Screw Hole
Mounting
Screw Hole
Caution
Please install the device following the installation guide.
Do not touch the device and cable with wet hands.
Keep away from moisture and shock.
Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus that produce heat.
Indoor use only. (Use waterproof junction box when it is used in
outdoor)
Do not use for other purposes.
Do not disassemble or modify this device.
Do not put any sticker or paint on it.
If this device is defective or malfunctioning, please unplug the power
source immediately and contact dealer or service center.
Please use the rated power supply for the product.
Connect DC power to this device first and then to AC outlet when
using DC power supply.
Warranty
This device has passed the quality control and product inspection.
Please install and use according to the installation guide.
The warranty period for this product is 24 months from the date of
purchase.
If this device is defective or malfunctioning, please unplug the power
adapter immediately and contact dealer or service center.
Any damages or breakage from user’s abuse, accident, modification
or natural disasters will not be covered manufacturer’s warranty.
Please visit below website for more detailed information.
Web: http://www.intercoax.com Tel: +82. 31. 365. 3133~4
E-mail: info@intercoax.com Fax: +82. 31. 365. 3135
This device complies with part 15 of the fcc rules. Operation is subject to the
following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference
that may cause undesired operation
Specification
Model EUP-01T EUP-01R
Interface
EoC Signal 1 x RJ45 - Ethernet over UTP (T-LinX)
Ethernet 1 x RJ45 - 10/100 Base-T with manual
Transmission Rate 10/100Mbps Full Duplex
Transmission
Distance
Ethernet up to 400 m (Cat5e UTP Cable)
PoE (PoC) up to 400 m (Cat.5e / 20W)
LED
Indication
Ethernet 1 x Link (Yellow) / 1 x ACT (Green)
Power
Input
B-Link or
DC48V~57V
PoE Switch or
DC48V~57V
PoE Output
IEEE802.3af (PoE),
IEEE802.3at (PoE+),
Extra PoE up to
60W with 57V
Power Adaptor
PoE Not Supported
PoC Only
PoE Input Up to 25.5W (PD) Up to 25.5W (PD)
Mechanical
Dimension 93(L) x 51(W) x 24(H)mm
Weight 52 g
Environment
Operating
Temp
-20 ~ 60°C
Storage
Temp
-30 ~ 80°C
Relative
Humidity
10% ~ 90%
Compliance
Certification FCC, CE, KC, RoHS
Surge
Protection
IEC 61000-4-5 4kV(1.2 / 50us),
2kA(8 / 20us)
Optional Accessories 57VDC / 1.2A External Power Supply
Applications
[Simple IP and Power of Ethernet]
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better)
NVR
EUP-01T
PoE NVR
PoE
Camera
57V DC/1.2A Power Supply
(Sold Separately)
57V DC/1.2A Power Supply
(Sold Separately)
PoE NVR
PoE
Camera
PoE
Camera
EUP-01T
EUP-01T
EUP-01R
EUP-01R
EUP-01R
Ethernet cable
(Cat5e or better)
[High Power over Ethernet]
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better)
NVR
EUP-01T
PoE NVR
PoE
Camera
57V DC/1.2A Power Supply
(Sold Separately)
57V DC/1.2A Power Supply
(Sold Separately)
PoE NVR
PoE
Camera
PoE
Camera
EUP-01T
EUP-01T
EUP-01R
EUP-01R
EUP-01R
Ethernet cable
(Cat5e or better)
[Extra PoE (60W) over Ethernet]
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better)
NVR
EUP-01T
PoE NVR
PoE
Camera
57V DC/1.2A Power Supply
(Sold Separately)
57V DC/1.2A Power Supply
(Sold Separately)
PoE NVR
PoE
Camera
PoE
Camera
EUP-01T
EUP-01T
EUP-01R
EUP-01R
EUP-01R
Ethernet cable
(Cat5e or better)
© Intercoax Co., Ltd.
