Pagina 1/8
Quadpack
Power/Audio Adapter
INSTRUCTION MANUAL
Fill in for your records:
Serial Number:
Purchase Date:
Power & Audio Ad
for SR Series
Compact Receivers
QUADPACK
LECTROSONICS, INC.
2
Table of Contents
General Technical Description ..........................................................................................................................................................3
Side Panels 3 .........................................................................................................................................................................................
Receiver Installation 4 ...........................................................................................................................................................................
Receiver Removal 4 ...............................................................................................................................................................................
Replacement Parts & Accessories 5 ...................................................................................................................................................
Specifications 6 .....................................................................................................................................................................................
Service and Repair 7 .............................................................................................................................................................................
Receiver Power & Audio Adapter
Rio Rancho, NM
3
General Technical Description
Designed for portable applications in the field, the
Quadpack simplifies the mounting and interconnec-
tion of two SR receivers for 4 audio channels. The
Quadpack’s lightweight and rugged design make it
perfect for bag systems, leaving you plenty of room for
your mixer, recorder and transmitters for audio feed to
cameras. The Quadpack keeps it all neatly routed and
easy to access with one set of audio outputs to feed a
recorder and the other to feed the mixer.
The Quadpack uses an external DC source through
one or both of the connectors. Circuitry is in place be-
tween the two jacks to pull power from the jack with the
higher voltage. You can use this to provide a backup
power supply to avoid interruption if the power is cut to
one of the jacks for any reason.

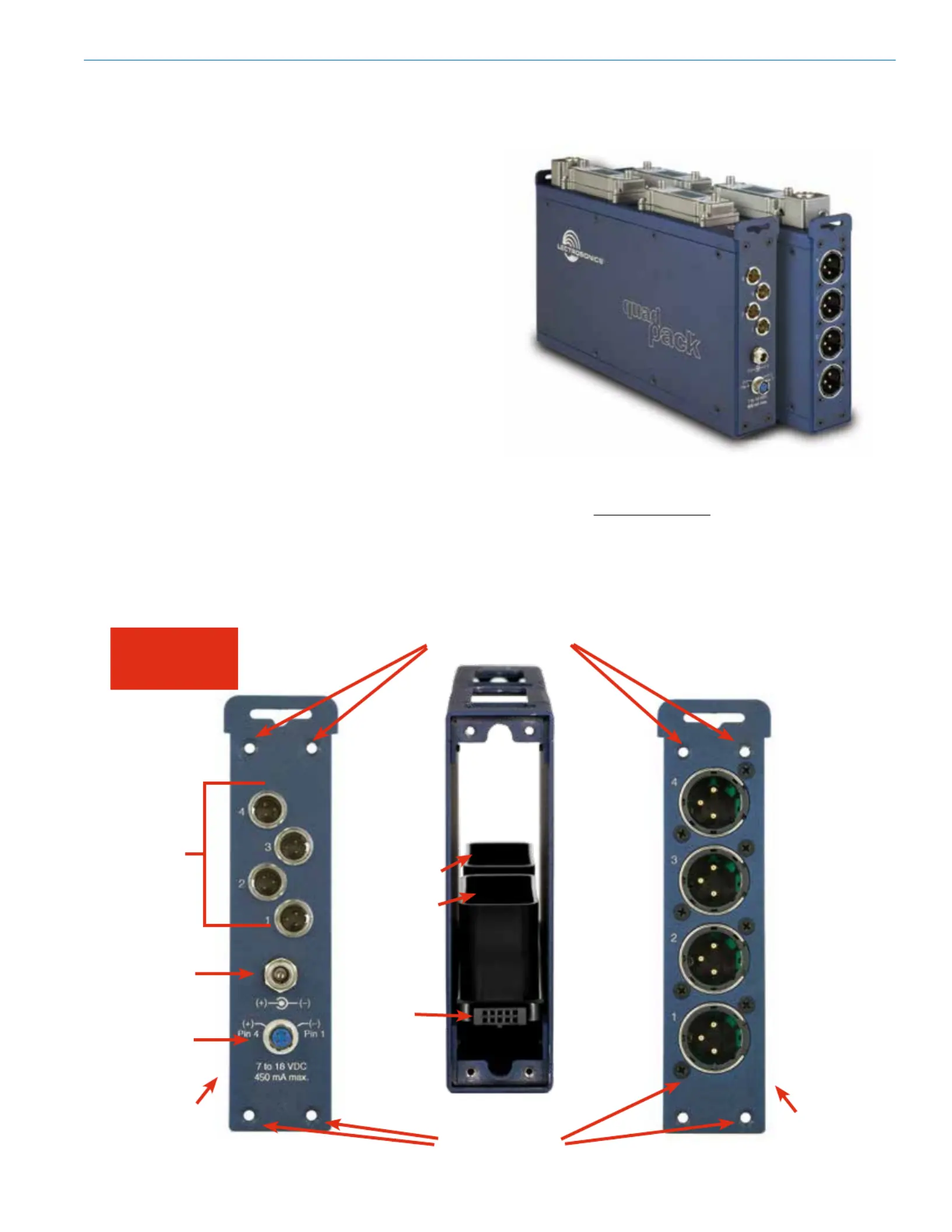

Side Panels
The Quadpack provides LZR and Hirose 4-pin power
connectors, 4 balanced TA3 outputs and 4 balanced
XLR connectors on interchangeable side panels.
The side panels have four screws, two on the top
and two on the bottom, that you can use to remove
the panel and switch panels to their opposite sides if
needed.
Use a connector (such as Hirose, Power or XLR) on
one of the lower connectors to remove the panel.
Prying or forcing the panel open with a screwdriver or
other tool may bend pins in the connector and cause
damage.
Pin connectors for side panels are located on the lower
end of the panel
XLR Balanced Audio Outputs
Hirose - 4 pin
Connector
LZR Power
Connector
TA3
Balanced
Audio
Outputs
Removable screws
to remove side panel
Removable screws
to remove side panel
Power Panel
Pin
connector
for
removable
side panels
Receiver
Housing
Alignment
Guides
DO NOT put two
power panels on the
same unit
XLR Panel
