Brochure MC50 en

February 2024 F. Reim S1

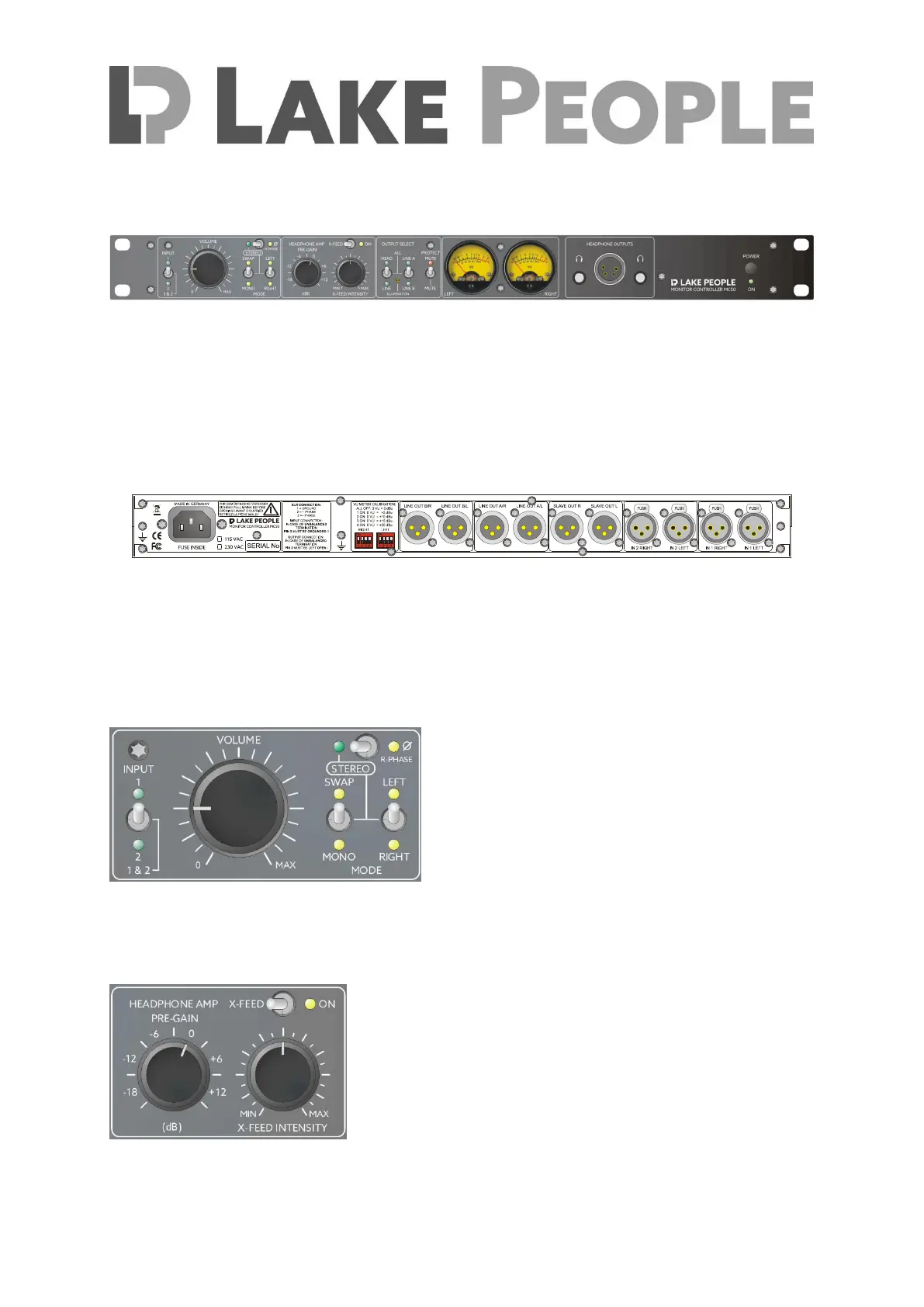

MONITOR CONTROLLER MC50

The Lake People Monitor Controller MC50 offers two inputs, a slave output, two line outputs to

connect amplifiers or active speakers, a true balanced headphone amplifier with 4 power stages

equipped with front controlled Pre-Gain and X-Feed – thus much more than conventional Monitor

Controllers in 19“, 1 U format. The complete set of stereo signal manipulation options, Solo L,

Solo R, Channel Swap, Mono, Right Channel Phase Reverse and the high-quality RK27 volume

control with 41-detent make it stand out from the crowd.

In addition, it is as low in noise and distortion as physics allows.

The back connectors, stereo, all gold plated XLR:

- two balanced inputs (Input 1 und 2)

- one balanced Slave output, here the activated input signals without volume control

can be found

- two balanced line outputs, controlled by the volume attenuator and the settings of the

monitoring section to feed power amplifiers or active speakers

The inputs are either individually activated by a

toggle switch on the front - or summed up,

the active inputs are displayed by LEDs.

Volume is controlled by a high-quality Alps RK27

potentiometer with 41-detent for precise settings.

The 25 mm knob is made of solid aluminium.

The stereo signal can be extensively manipulated by three toggle switches. The activated state is

shown by LEDs. These functions comprise: STEREO / Ø = right channel inverted /

SWAP = channels reversed / MONO / LEFT Solo / RIGHT Solo.

Special attention was paid to the headphone amps inside

MC50. They consist in principle of two G111 amps and are able

to supply balanced headphones “as it should” due to its four

power stages.

Because of the unique Pre-Gain function on the front panel

virtually any headphone is perfectly adaptable. The Pre-Gain

function offers six positions from -18 to +12 dB in steps of 6 dB.

The X-Feed function serves to reduce the “In-Head-Localization” which is often found to be

annoying and fatiguing when listening with headphones. X-Feed is activated by a switch and

continuously variable with reasonable amounts. The active state is displayed by a LED.
