INSTALLATION SHEET

FM48610

LED Flush Mount

START FROM HERE

Please Note:

•All Kuzco LED fixtures come with pre-wired LED module(s).

• Unless instructed to do so, please do not touch any part of the LED module(s) as any

unnecessary contact with the module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-855-855-8926

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W

20200805

: kuzcolighting.com

1.

2.

3.

4.

5.

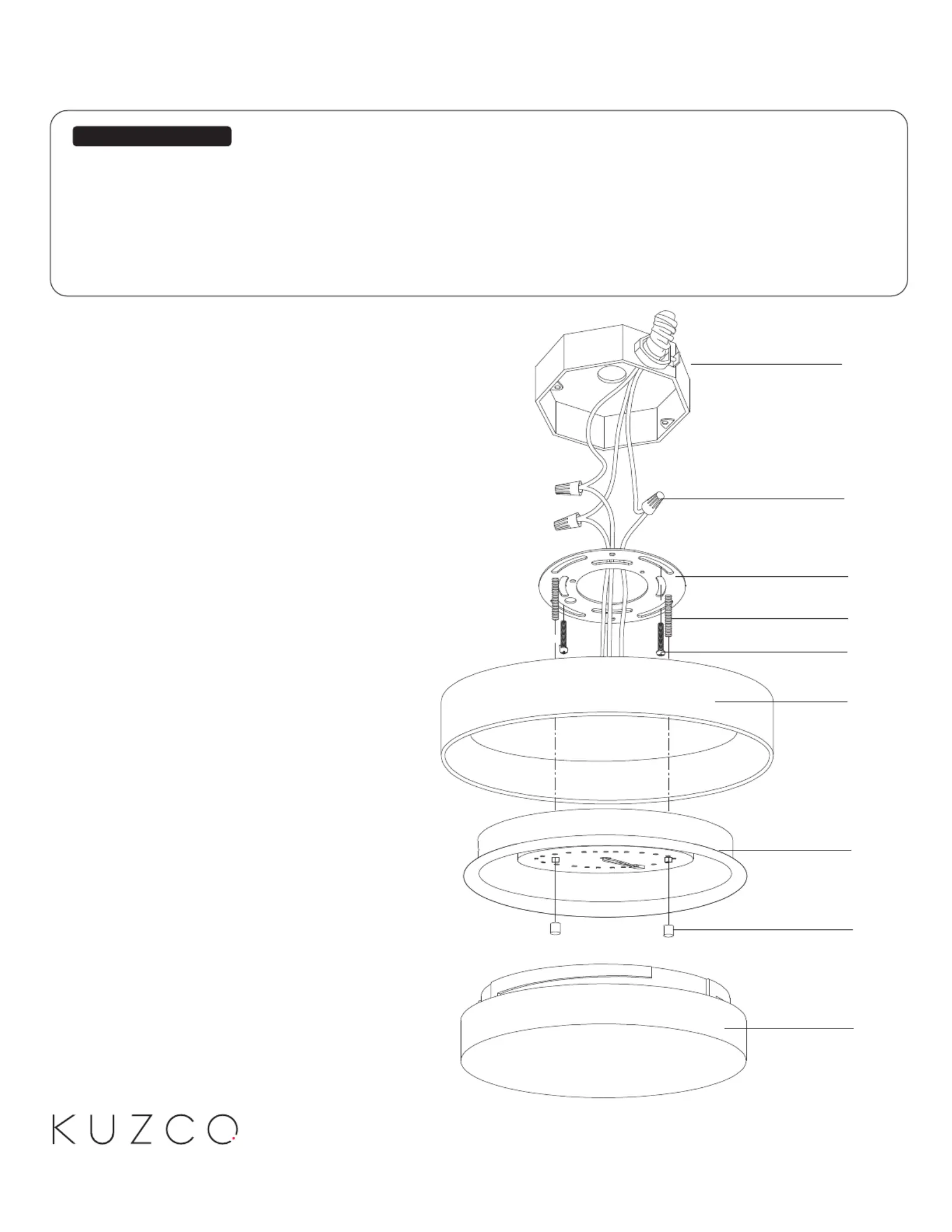

Remove the fixture from its original packaging.

Next, separate the mounting plate and outer (1c)

glassfrom the canopy by removing the (2b) (2a)

decorative nuts Attach the mounting plate (2c). (1c)

to the electrical junction box on the ceiling using (1a)

the two screws provided in the hardware (1e)

package.

You are now ready to mount the canopy and (2a)

glass to the mounting plate . First connect all (2b)(1c)

wires correctly black to black “L”, white to white “N”

and the ground wire with provided marrettes (1b)

from the hardware package.

Align the holes in the canopy and glassto (2a) (2b)

the threaded studsand push themup towards (1d)

the mounting plate. Next, screw in the two (1c)

decorative nuts onto the threaded studs , (2c)(1d)

this will secure the canopy and glass to the (2a) (2b)

mounting plate .(1c)

Attach the glass cover onto the canopy (2d)(2a) by

threading the glass clockwise.

1a.

1c.

1d.

1e.

2b.

2a.

2c.

2d.

1b.
