ENGLISH

• AUTO / MANUAL

RANGE

• DATA HOLD

• 3-1/2 DIGIT

1999 COUNT LCD

• BACKLIGHT

• WORKLIGHT

• TEMPERATURE

ENGLISH

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

RangeResolutionAccuracy

400mV0.1mV

± (0.8% + 2 digits)

4V0.001V

40V0.01V

400V0.1V

600V1V± (1.0% + 2 digits)

Overload Protection: 600V DC / AC

Input Impedance: 10MΩ.

AC Voltage Measurement

RangeResolutionAccuracy

400mV0.1mV

± (1.0% + 10 digits)

4V0.001V

40V0.01V

400V0.1V

600V1V± (1.2% + 10 digits)

Overload Protection:600V DC / AC

Frequency: 40 to 400Hz

Input Impedance: 10MΩ.

Response: Averaging

AC Current Measurement

RangeResolutionAccuracy

4A0.001A± (3.5% + 20 digits)

≤

0.5A

4A0.001A± (3.0% + 10 digits)

>

0.5A

40A0.01A± (3.0% + 10 digits)

400A0.1A± (2.5% + 10 digits)

600A1A± (1.5% + 5 digits)

Overload Protection: 720A for 60 sec. max

Frequency: 50 to 60Hz

Response: Averaging

Resistance Measurement

RangeResolutionAccuracy

400Ω0.1Ω

± (1.2% + 2 digits)

4kΩ 0.001kΩ

40kΩ0.01kΩ

400kΩ0.1kΩ

4MΩ0.001MΩ

40MΩ0.01MΩ

± (2.0% + 5 digits)

Overload Protection:600V DC / AC

Capacitance Measurement

RangeResolutionAccuracy

50nF0.01nF± (3.0% + 10 digits)

500nF0.1nF

± (3.0% + 5 digits)

5µF0.001µF

50µF0.01µF

100µF0.1µF

Overload Protection:600V DC / AC

Frequency Measurement

RangeResolutionAccuracy

50Hz0.01Hz

± (0.1% + 3 digits)

500Hz0.1Hz

5kHz0.001kHz

50kHz0.01kHz

100kHz0.1kHz

Overload Protection: 600V DC / AC

Duty Cycle Measurement

RangeResolutionAccuracy

0.1

˜

99.9%0.1%± (3.0% + 0 digits)

Overload Protection: 600V DC / AC

Temperature Measurement

RangeResolutionAccuracy

-4

˜

1832°F1°F± (3.0% + 3 digits)

-20

˜

1000°C1°C± (3.0% + 2 digits)

Overload Protection:600V DC / AC

Diode Test

Overload ProtectionResolutionOpen Circuit Voltage

600V DC / AC1mVAppx. 1.5V

Continuity Test

Overload ProtectionResolutionOpen Circuit Voltage

600V DC / AC

100mΩ

Appx. 0.45V



WARRANTY

www.kleintools.com/warranty

CLEANING

Turn instrument off and disconnect test leads. Clean the instrument by using

a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Specifications

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL / RECYCLE

Caution: This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.

Dwg Name: CL200-139560TART Dwg No: 139560T

ECO No: 15429 Pkg Dwg Ref: 1650 Rev: B

Color Reference: N/A

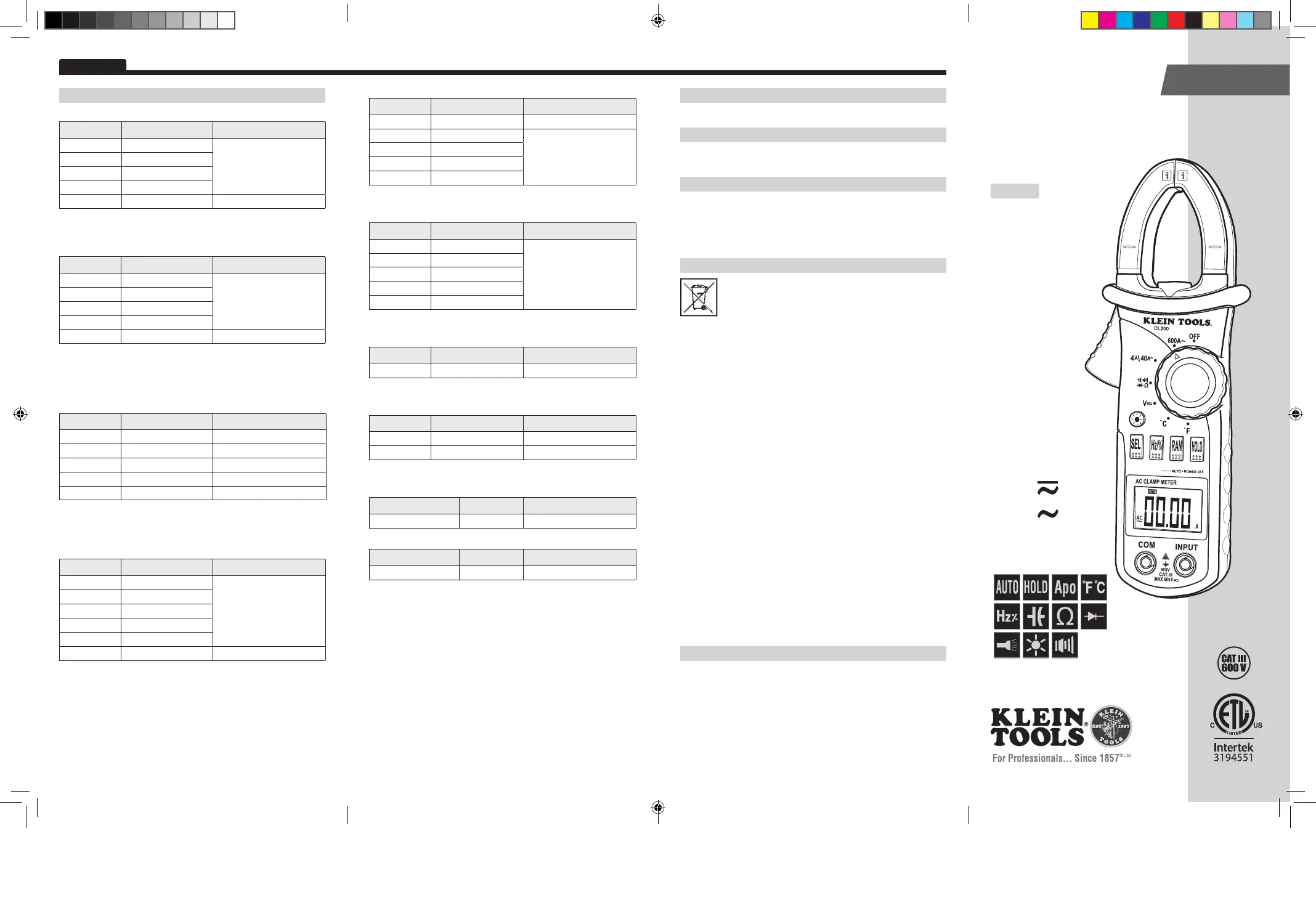

Instruction Manual
