MODEL# 15483CBR

M8ALRCCENTIGHT

INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY TO PERSONS

IMPORTANT SAFETY INSTRUCTIONS

Lighted lamp is HOT!

WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.

1)urn off / unplug and allow to cool before replacing lamp.T

2)Lamp gets HOT quickly!

3)Do not touch hot lens or cowl.

4)Do not touch lamp or fixture if warm.

5)Do not look directly at lamp when on.

6)Keep lamp away from combustible materials.

7)Use only with wattage and lamp marked on fixture.

8)Do not touch the inner glass envelope of the lamp at any time. Use a soft cloth. Oil

from skin may damage lamp.

9)Do not operate the fixture with a damaged or missing lens.

SAFETY INSTRUCTIONS

READ THIS FIRST

KEEP THESE INSTRUCTIONS

This fixture is intended for installation in accordance with the National Electric

Code (NEC) and Local code specifications. Failure to adhere to these codes and

instructions may result in serious injury and/or property damage and will void the

warranty.

1)

2)

WARNING: This fixture is not to be installed within 10 feet (3M) of a pool, spa

or fountain.

This fixture is to be used only with a power unit (transformer) rated a maximum

of 300 W (25 AMPS) 15 voltsper circuit

.

3)The #18 ga. fixture wire is not intended for direct burial or direct connection to

transformer.

4)Direct burial rated wire is to be buried a minimum of 6” (152mm) beneath the

surface of the ground. If additional Direct Burial wire is needed, contactNOTE:

your local Kichler

®

landscape distributor.

•8 GA wire can be purchased in length of 250’ (76 M), 15503-BK.

•10 GA wire can be purchased in length of 250’ (76 M), 15504-BK.

•12 GA wire can be purchased in lengths of 100’ (30 M), 15501-BK; 250’ (76 M),

15502-BK; 500’ (152M), 15505-BK; and 1000’ (304 M), 15506-BK.

5)Fixture shall not use a tungsten halogen lamp unless the fixture is marked for

use with such lamps.

6)Wiring connections must be made with approved/listed wire connection device(s)

suitable for the application. Do not exceed manufacturers’ wiring combination

specifications for size and quantity of conductors.

CAUTION

WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE), CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALLY COMBUSTIBLE

MATERIALS.

WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE GRASS CLIPPINGS, MULCH,

LIGHT BULB, LENS, OR BODY OF THE FIXTURE.

ASSEMBLY AND INSTALLATION

1.TURN OFF POWER.

2.Determine desired location for mounting fixture.

3.At desired location, hammer stake into ground. To avoid damage to stake, place a board on top of stake or use a rubber mallet. If

ground is hard and stake is difficult to install, make a crosscut in ground using a flat shovel.

4.wire-wayClear away area in ground at opening in stake.

5.Unscrew cowl from accent light. Cowl is removed by unscrewing set screw with counter-clockwise turns.

6.Remove housing to expose socket. Housing is removed by unscrewing the housing with counter-clockwise turns.

7.Install lamp to socket inside accent light. NOTE: Use caution when installing. Hold lamp by outer housing. DO NOT touch glass

envelope inside. If this happens, clean lamp with denatured alcohol and a lint free cloth.

8.Install cowl onto accent light housing. Cowl is installed with clockwise turns.

9.wire-wayRoute fixture cable through opening and install fixture in stake. Care should be taken to ensure wire is not twisted. Adjust

todesired aiming direction.

10.Adjust angle of accent light by loosening swivel screw.thumb

11.enutsMake wire connections using an approved wir (not supplied.)

For warranty information please visit:

http://www.landscapelighting.com/portal/warranty_page

Para informacion de la garantia por favor visite: www.landscapelighting.com/portal/warranty_page

Date Issued: 4/27/17

IS--US15483

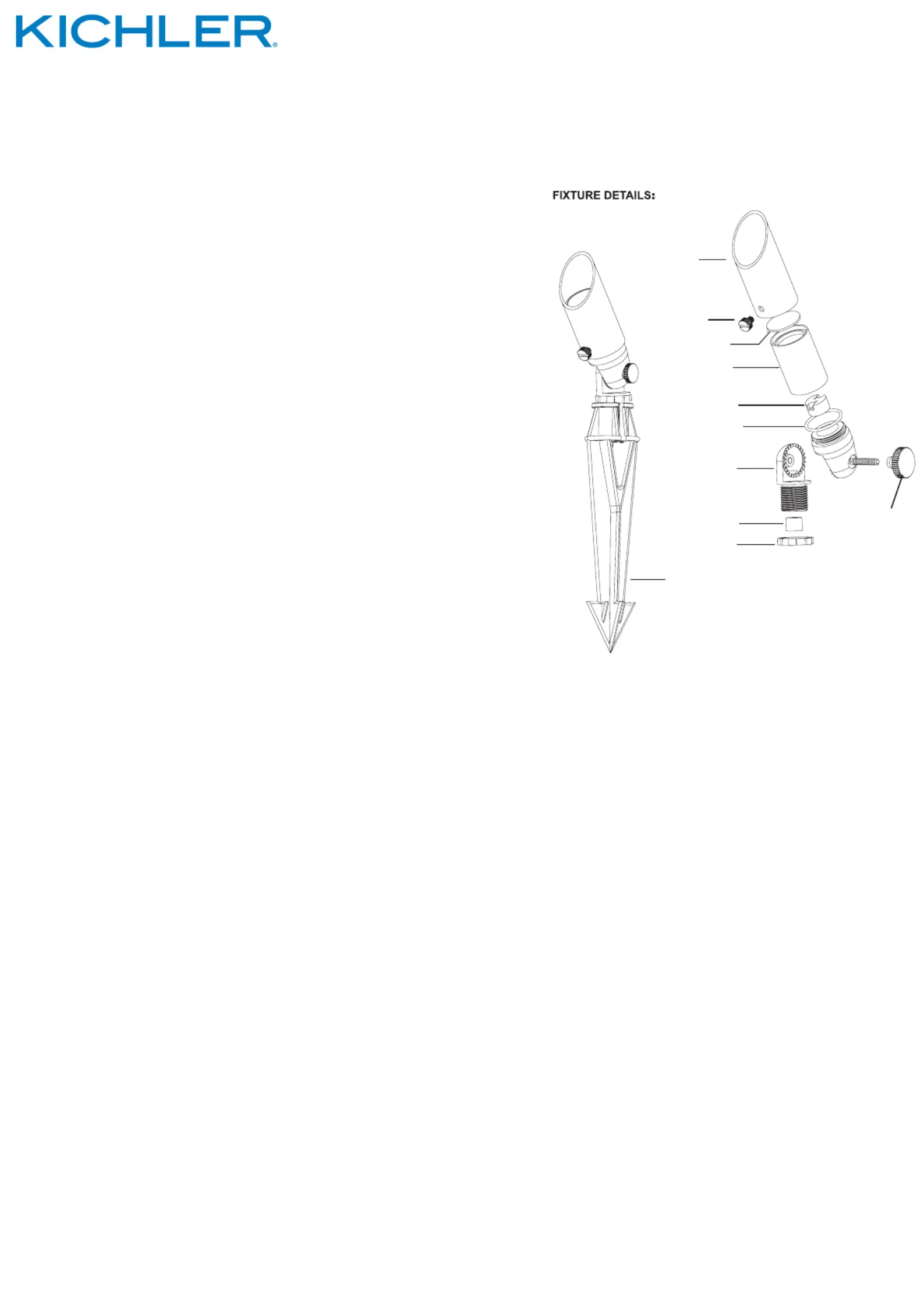

Cowl

Stake

Lock Nut

Grommet

Knuckle

O-ring

Socket

Housing

Set Screw

Thumb Screw

Lens
