Temperature controller fan coil
Temperature controller fan coil
Art. No. : TRDLS9248..
Temperature controller fan coil
Art. No. : TRDA5248..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Function
Intended use
- Pushbutton sensor module for operating electrical fan coil units in KNX systems
- Measurement and feedback control of the room temperature
- Mounting in appliance box according to DIN 49073
Product characteristics
- 8 capacitive sensor buttons
- Internal temperature sensor
- External temperature sensor can be evaluated
- Control of fan coil units
- Heating and/or cooling mode
- Suitable for 2-tube or 4-tube systems
- Up to 3 fan levels can be controlled
- Room temperature controller function
- Preselection of the current energy level either through the option of 4 operating modes in
accordance with KNX standard or of 5 temperature profiles for use in hotels or similar sites
- Display for indication of temperature (°C or °F), fan level, operating mode/profile
- 1 operating level and 2 menu levels
- Menu levels blockable
- 1 status LED (red/green/blue)
- Brightness and contrast adjustable
- Illumination duration of the lighting up to 120 seconds
- Operation possible as room temperature controller extension
- Integrated bus coupling unit
1/5
32597613
j0082597613
09.05.2017
3 Operation
Operating elements

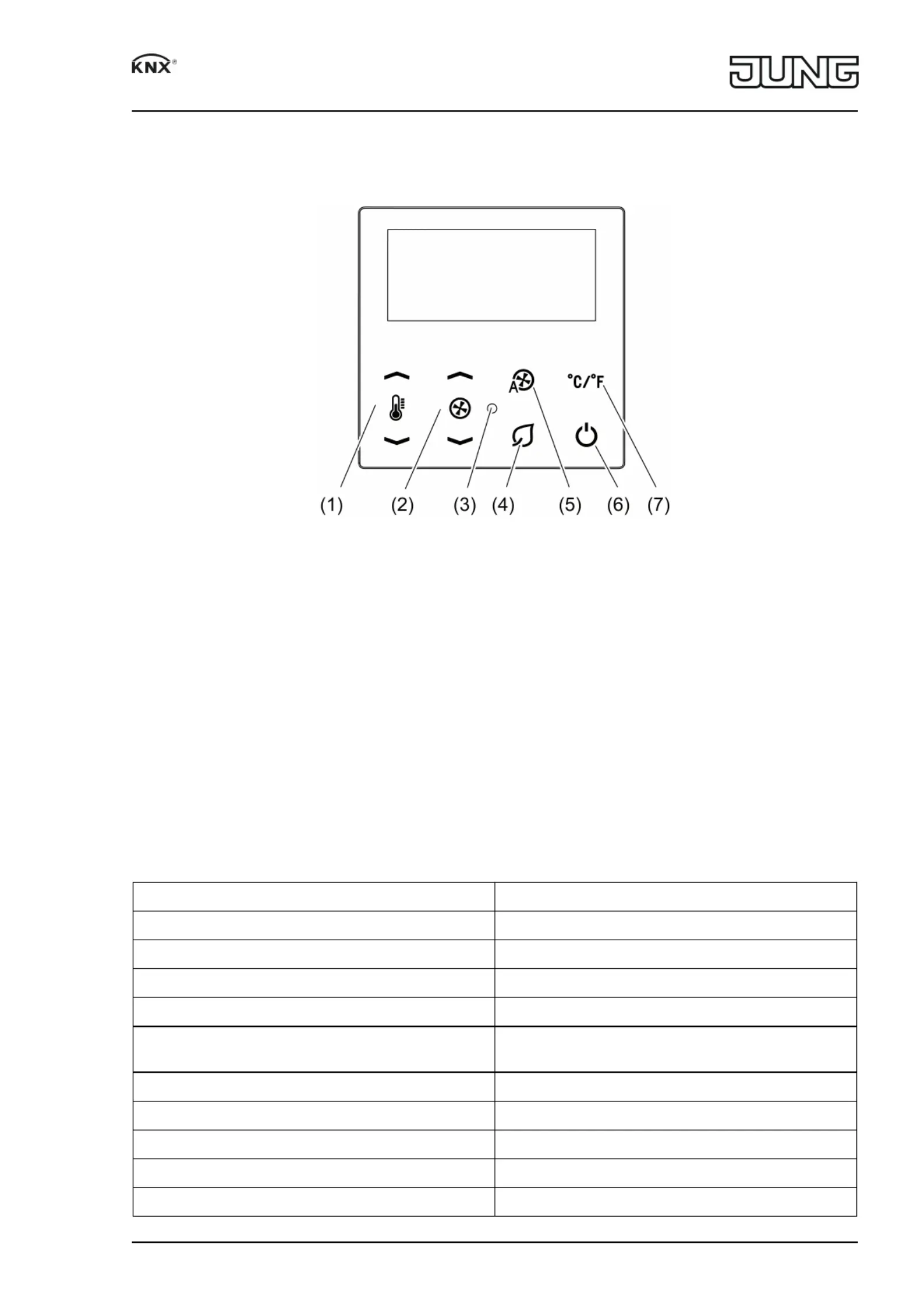

Figure 1: View
(1) Temperature setpoint adjustment
(2) Manual setting of the fan level
(3) Status LED
(4) Switchover to eco profile or night operation
(5) Fan level automatic operation
(6) Switchover to standby profile or frost/heat protection mode
(7) Switchover of temperature display °C/°F
iThe technical data on our Internet site show details of the menu levels 1 and 2.
Operating modes and display icons
The device compares the current room temperature with the setpoint temperature and controls
heating or cooling devices according to the current demand. The setpoint temperature depends
on the currently set operating mode or profile and can be changed by the user, depending on
the programming. The current operating mode is shown in the display.
Icon Meaning
No icon Comfort profile or comfort operating mode
ƕComfort profile or standby operating mode
ƔEco profile or night operating mode
ƓStandby profile
ƖBuilding protection profile or frost/heat
protection operating mode
ŤHeating
ŵCooling
‰Setpoint temperature
şManual fan level
ƒAutomatic fan level
2/5
32597613
j0082597613
09.05.2017
Temperature controller fan coil
Status LED
The status LED shows the controller's operating mode or actuation of the sensor buttons or
both, depending on the parameterisation.
LED colour Profile or operating mode
Green or off Comfort, comfort–, eco
or
Comfort, standby, night
Red or off Standby, building protection
or
Frost/heat protection
Green flashing signals actuation of the sensor buttons.
Operating level
- Increase setpoint temperature: press sensor button .‰ƞ
- Reduce setpoint temperature: press sensor button .‰Ɵ
- Increase fan stage: press sensor button .şƞ
- Reduce fan stage: press sensor button .şƟ
- Set automatic fan stage: press sensor button .ƒ
- Switchover to the eco profile or night operating mode: press sensor button .Ɣ
- Switchover to the standby profile or frost/heat protection operating mode: press sensor
button .Ɠ
iThe profiles eco and standby or operating modes night and frost/heat protection are exited
by pressing again the sensor buttons or . The follow-on condition depends on whetherƔ Ɠ
or not the presence of persons was reported to the controller.
Open menu level 1
Only for heating and cooling mode with manual switchover.
oPress the sensor buttons and between 2 and 4 seconds.ĸƟ Ɣ
Menu level 1:
- Switchover heating mode/cooling mode
Open menu level 2
oPress the sensor buttons and longer than 5 seconds.ĸƟ Ɣ
Menu level 2:
- Setpoint temperature heating comfort or comfort
- Setpoint temperature cooling comfort or comfort
- Lowering of setpoint temperature heating comfort or standby
- Raising of setpoint temperature cooling comfort or standby
- Fan control setting comfort or standby
- Lowering of setpoint temperature heating eco or night
- Raising of setpoint temperature cooling eco or night
- Fan control setting eco or night
- Lowering of setpoint temperature heating standby
- Raising of setpoint temperature cooling standby
- Fan control setting standby
- Fan level for the individual profiles or operating modes
- Reset changes
- Set offset for temperature measurement
- Disable controller
- Set display brightness
- Set display contrast
- Set display illumination duration
Operating in the menu
oIncrease value: press sensor button .‰ƞ
oReduce value: press sensor button .‰Ɵ
3/5
32597613
j0082597613
09.05.2017
Temperature controller fan coil
