Push-button module 24VAC/DC

Light Management

Push-button module 24 V AC/DC, 1-gang

Art. No. ..5212 TSM

Push-button module 24 V AC/DC, 2-gang

Art. No. ..5224 TSM

Push-button module 24 V AC/DC, 3-gang

Art. No. ..5236 TSM

Push-button module 24 V AC/DC, 4-gang

Art. No. ..5248 TSM

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. During installation and cable routing, comply with the

regulations and standards which apply for SELV circuits.

Use only the enclosed plastic screws. Device fault possible due to electrostatic

discharge.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

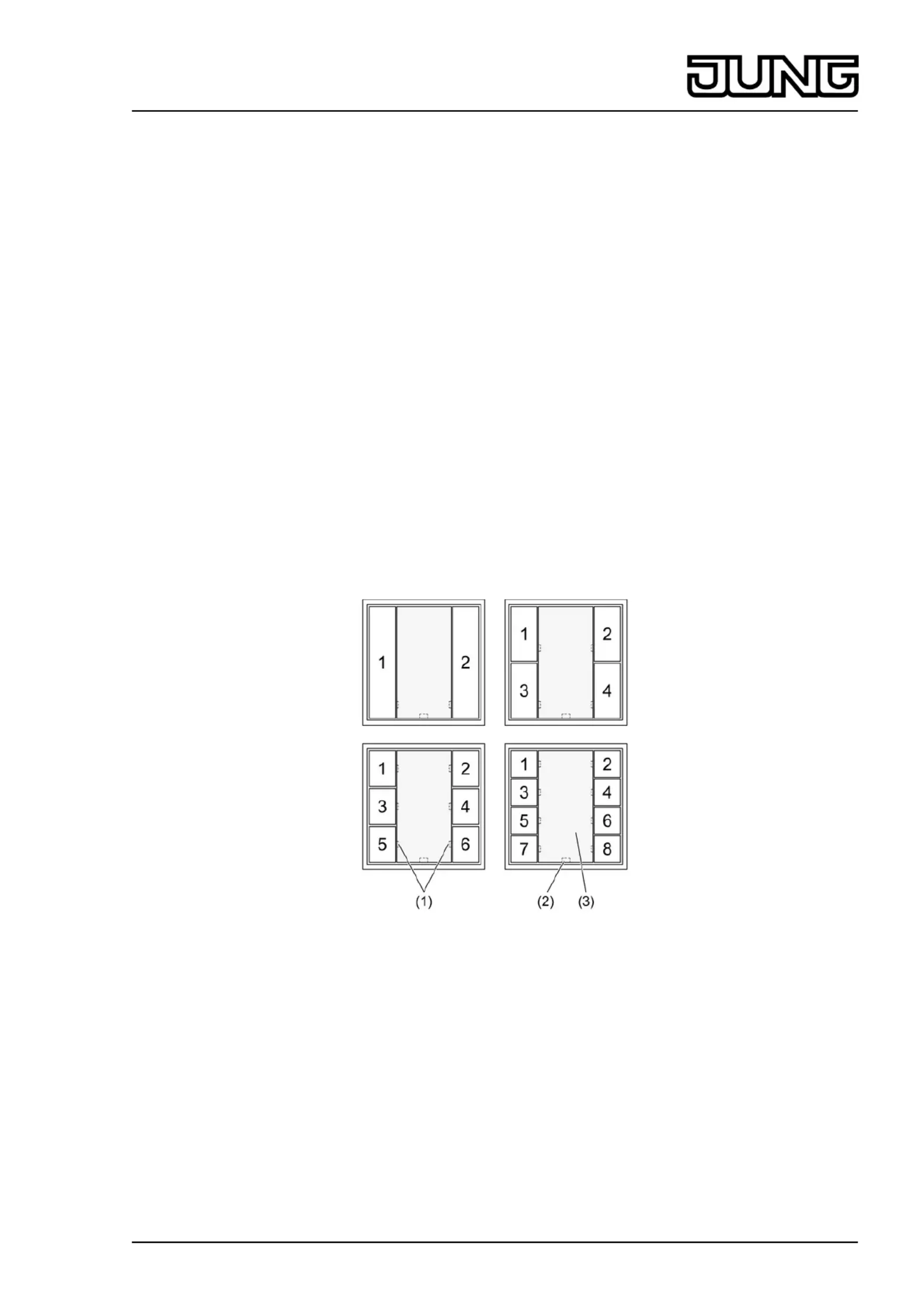

Figure 1: Button arrangement

(1) Status LED

(2) Operation LED

(3) Labelling field

3 Function

Intended use

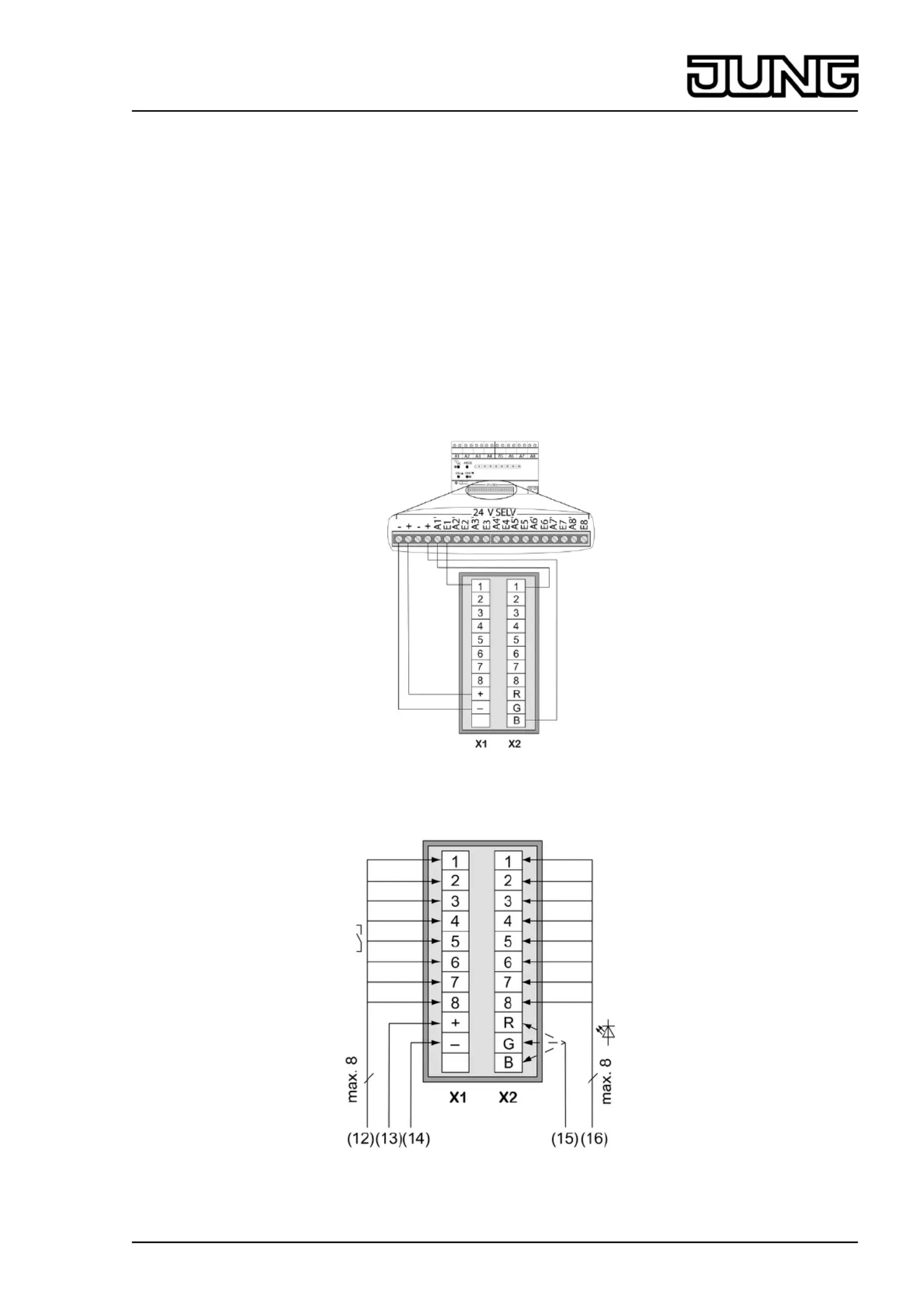

- Connection to the Universal relay station, the Universal dimming station (see chapter 6.2.

Accessories) or other SELV control systems.

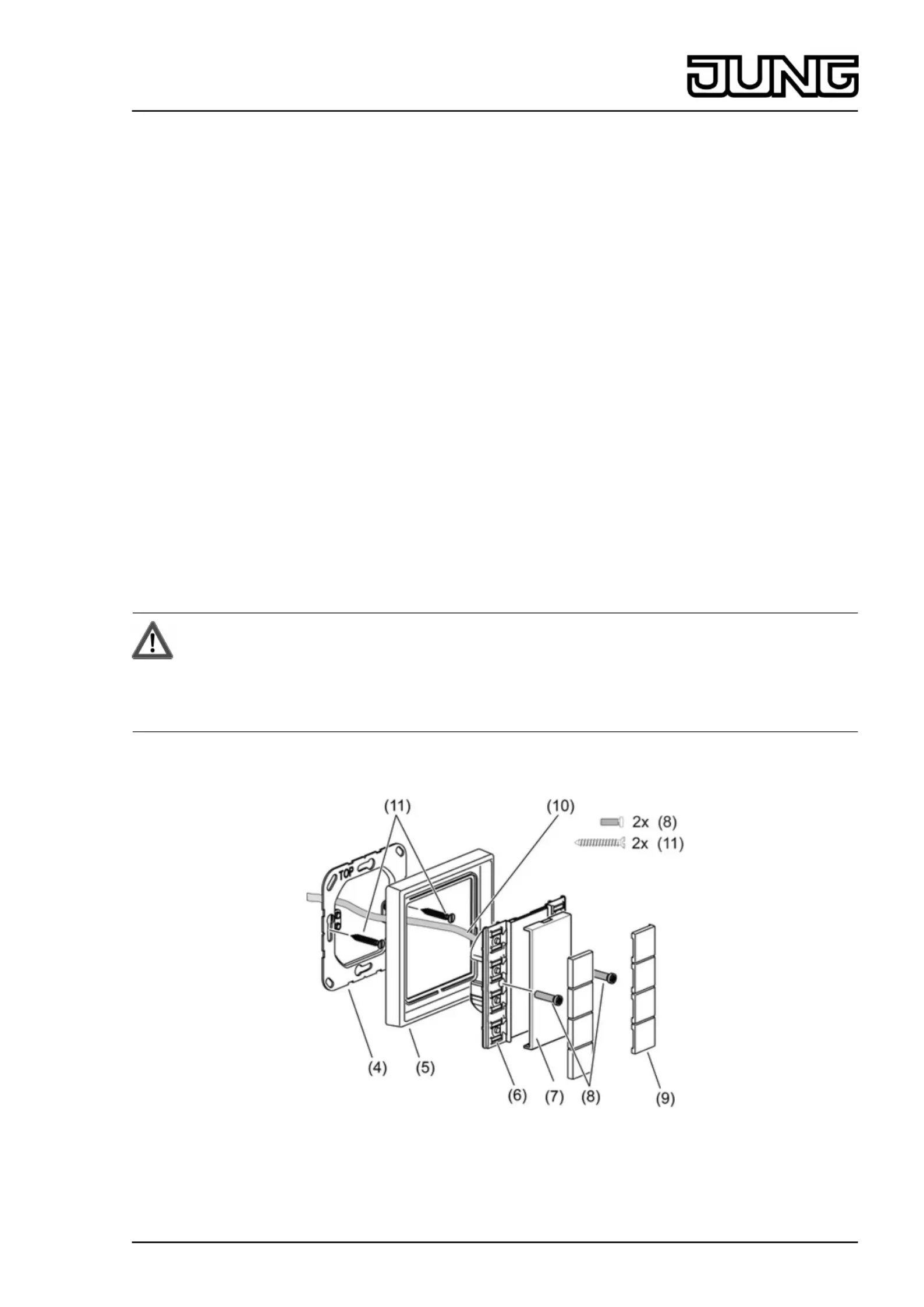

- Installation in appliance box according to DIN 49073.

1/6

32587903

J:0082587903

25.06.2013
