JET

427 New Sanford Road

LaVergne, Tennessee 37086 Part No. M-141017

Ph.: 800-274-6848 Edition 1 01/2020

www.jettools.com Copyright © 2020 JET, a Division of JPW Industries, Inc.

#141017 (PUC-4525) Flat Top Resin Utility Cart

IMPORTANT SAFETY INSTRUCTIONS

• Review all instructions before assembling the cart.

• Improper assembly can cause personal injury and/or property damage.

• Do not overload cart. See specifications for load capacity (distributed evenly).

• Do not step into or on the cart, or use it as a toy.

WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer

and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca. gov.

Specifications

Stock number 141017

Model number PUC-4525

Load capacity 500 lbs. (225 kg)

Upper platform size (L x W) 45 x 25 in. (111 x 64 cm)

Upper platform height

from floor

29-3/4 in. (75.5 cm)

Caster size (OD x W) 5 x 1 in. (127 x 25.4 mm)

Overall dimensions (LxWxH) 45 x 25 x 32-3/4 in. (111x64x83 cm)

Net weight 46 lbs. (21 kg)

Shipping weight 48 lbs. (21.8 kg)

Assembly

Tools required: cross-point screwdriver, and rubber or wood mallet.

Use the mallet to tap down the parts to ensure they are seated properly

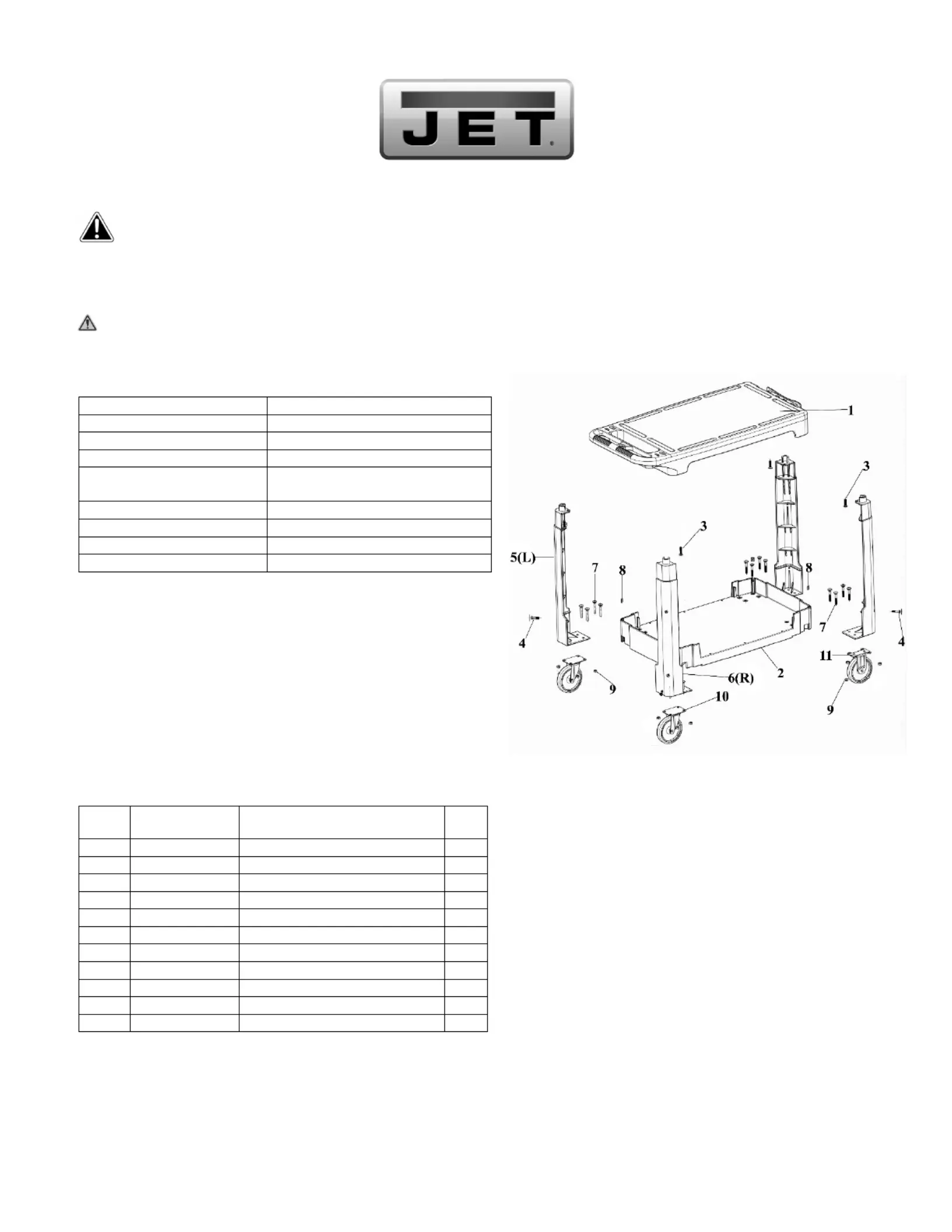

before fastening them with screws. Use drawing at right for assembly

reference.

1. Turn upper platform (#1) upside down, and install legs (two left and

two right, #5 and #6)

2. Install lower platform (#2) and casters (#10,#11). Tighten all hex

nuts.

Parts Breakdown

Index

no.

Part no. Description Qty.

1 PUC4525-1 Upper Platform 45x25in 1

2 PUC4525-2 Lower Platform 1

3 PUC4325-8 Cross Head Screw M6x25 4

4 PUC4525-4 Leg Screw 6x18mm 4

5 PUC4525-5 Left Leg 2

6 PUC4525-6 Right Leg 2

7 PUC4325-9 Carriage Bolt M8x45 16

8 PUC4525-8 Leg Square Nut 6x12mm 4

9 TS-1541031 Lock Nut M8 16

10 PUC4325-SCA Swivel Caster Assembly 5in. 4

11 PUC4325-FCA Fixed Caster Assembly 5in. 4

To order parts or reach our service department, call 1-

800-274-6848 Monday through Friday, 8:00 a.m. to

5:00 p.m. CST. Having the Model Number and Serial

Number of your unit available when you call will allow

us to serve you quickly and accurately.

Non-proprietary parts, such as fasteners, can be found

at local hardware stores, or may be ordered from JET.

Some parts are shown for reference only, and may not

be available individually.
