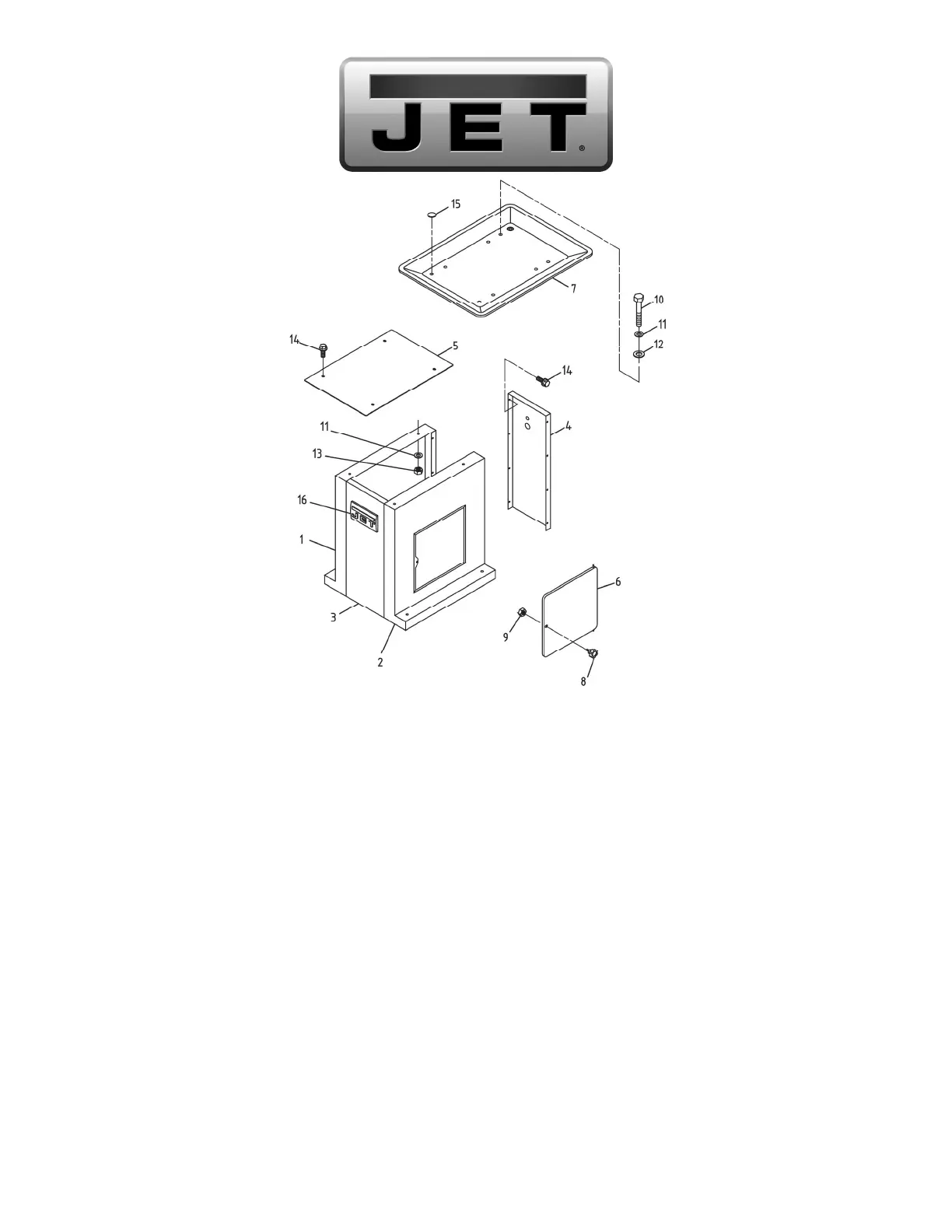

Parts List for the CS-18 Stand

Index No. Part No. Description Size Qty.

1 ................ CS18N-01 ................. Side Panel (left)....................................................... ...................................... 1

2 ................ CS18N-02 ................. Side Panel (right w/door) ......................................... ...................................... 1

3 ................ CS18N-03 ................. Front Panel .............................................................. ...................................... 1

4 ................ CS18N-04 ................. Rear Panel (2 holes) ................................................ ...................................... 1

5 ................ CS18N-05 ................. Shelf......................................................................... ...................................... 1

6 ................ CS18N-06 ................. Door ......................................................................... ...................................... 1

7 ................ CS18N-07 ................. Top Tray .................................................................. ...................................... 1

8 ................ CS18N-08 ................. JET Knob ................................................................. 5/16”x20 ........................ 1

9 ................ TS-0561021 .............. Hex Nut .................................................................... 5/16” .............................. 1

10 .............. TS-0160141 .............. Hex Cap Bolt ............................................................ 3/8”x5-1/2” .................... 4

11 .............. TS-0561031 .............. Flat Washer ............................................................. 3/8”x1-1/4” .................... 8

12 .............. CS18N-12 ................. Plastic Washer ......................................................... 3/8” ................................ 4

13 .............. CS18N-13 ................. Hex Nut .................................................................... 3/8” ................................ 4

14 .............. CS18N-14 ................. Hex Cap Bolt (w/ washer) ........................................ 5/16”x5/8” .................... 12

15 .............. CS18N-15 ................. Plastic Plug .............................................................. ...................................... 4

15A ............ CS18N-15A ............... Bolt Assembly (#9~15) ............................................ ...................................... 4

16 .............. JET-138 ..................... JET Logo ................................................................. 138x57mm .................... 1

JET

427 New Sanford Road

LaVergne, Tennessee 37086 Part No. M-350045

Ph.: 800-274-6848 Revision B1 12/2018

www.jettools.com Copyright © 2014 JET, a Division of JPW Industries, Inc.
