Pagina 1/6

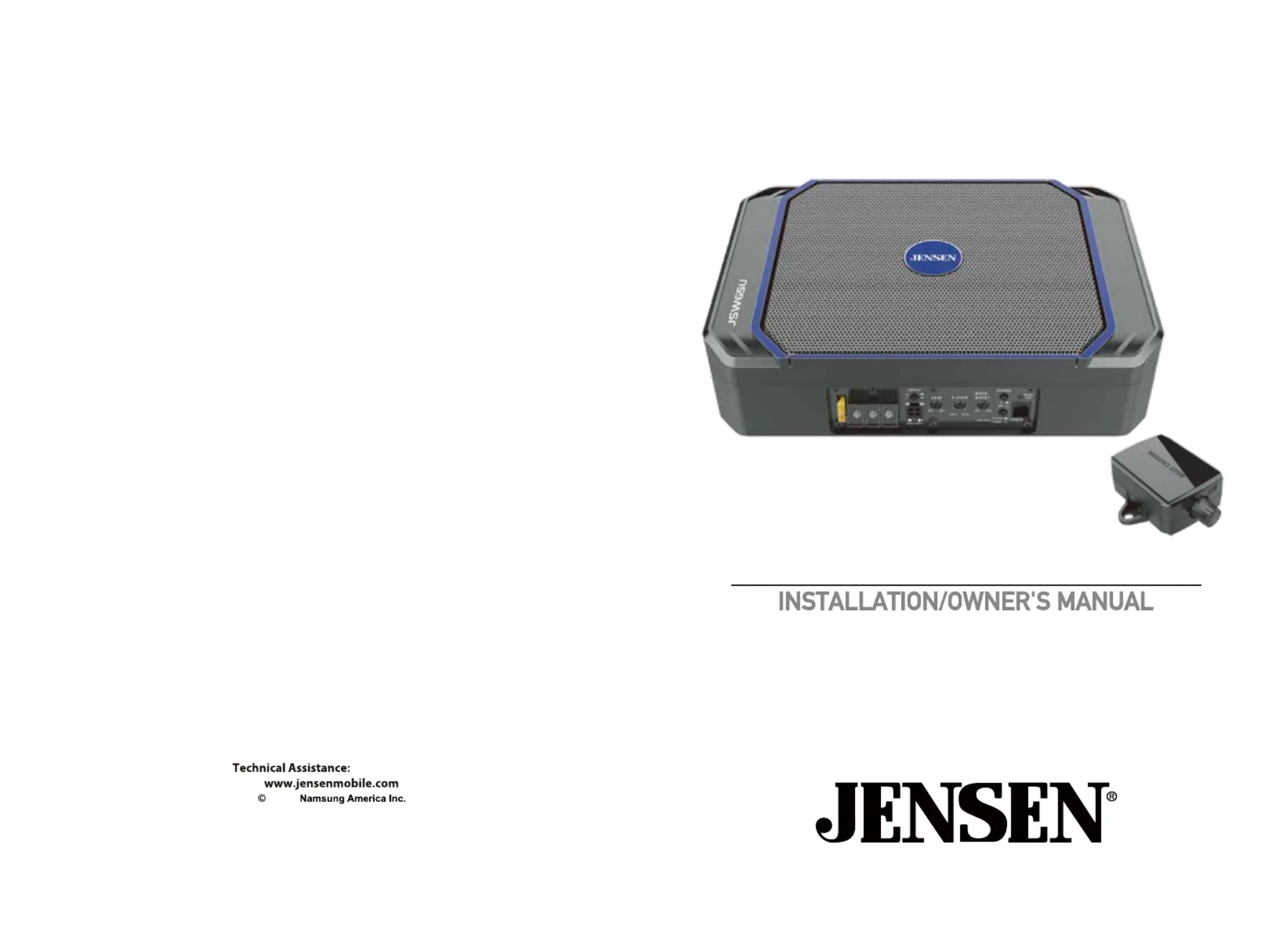

6.5" Compact Amplified Subwoofer
NSA0625-V01
1-888-921-4088
2025
JSW65U
2
Getting Started
Thank you for purchasing the Jensen JSW65U compact amplied subwoofer.
Although Jensen has attempted to ensure the information in this manual is
accurate, please be aware that any part of it is subject to change without notice.
Please read entire manual before installation. Due to the technical nature of
ampliers, it is highly recommended that your Jensen JSW65U is installed
by a professional installer or an authorized dealer.
Before You Start
• Always disconnect the negative battery terminal. Consult a qualied technician
for instructions if you are unsure.
• Avoid installing the amplier where it would be subject to high temperatures,
such as from direct sunlight, or where it would be subject to dust, dirt or
excessive vibration.
• Use extreme caution when drilling holes to avoid damaging fuel lines or
existing vehicle wiring.
•
An amplier installation kit and RCA cable (sold separately) is highly recommended
to facilitate the installation. Consult your dealer for recommendations.
Mounting
Location
• For optimum performance, make sure to provide at least 1" of space around all
sides of the amplier.
• Do not mount the JSW65U under carpets or where airow is restricted.
• Do not install the JSW65U where it may be exposed to moisture.
• The optimum mounting location varies between vehicles. Remember to test all
amplier functions before completing the nal mounting procedure.
11
200W
Amplifier
RMS Power Output
600 Watts
30-150Hz
Maximum Output Power
Frequency Response
Low level (RCA): 10k ohms
High level (speaker wire): 200 ohms
200mV – 5V
50–150Hz
0–180 degrees
20A x 1
11.42" x 7.87" x 3.05"(W x D x H)
6.5"
2 ohms
30 oz.
Aluminum
Rubber
Design and specications subject to change
without notice.
Input Impedance
Input Sensitivity (LOW)
1V – 12V
Input Sensitivity (HIGH)
Low Pass FIlter
Phase
Fuse
Dimensions
Subwoofer Features
Woofer size
Impedance
Magnet
Cone material
Surround material
Specifications
10
3
The following installation instructions are intended to be used as a basic
guideline. If you feel unsure about installing this speaker system yourself,
Jensen
recommends acquiring the services of a professional car audio
installation center.
Before installation, please review the following guidelines:
1. Be sure to carefully read and understand the instructions before attempting to
install this product.
2. If additional wiring is required, we recommend running all wires prior to
mounting your enclosure in place.
3. To ensure reliable performance and minimize signal or power loss, use the
highest quality connectors available.
4. Never run speaker wires underneath your vehicle. Running speaker wires
inside the vehicle provides the best protection from exhaust, heat and
environmental elements.
5. Avoid running wires over, near or through sharp-edged surfaces. We suggest
you also use rubber grommets to protect any wires routed through metal,
especially the rewall.
6. When running the RCA cable to the amplier, avoid running it near sources
of high current (i.e. wiring harnesses, battery cables).
Safety First
The following instructions are designed to ensure safety during installation and
use of the JSW65U. Failure to heed these instructions can result in injury or damage
to the unit or vehicle.
CAUTION
!
Limited Two Year* Warranty
This warranty gives you specic legal rights.
You may also have other rights which vary
from state to state.
Jensen warrants this product to the original
purchaser to be free from defects in material
and workmanship for a period of two years
from the date of the original purchase.
Jensen agrees, at our option, during the
warranty period, to repair any defect in material
or workmanship or to furnish an equal new,
renewed, or comparable product (whichever
is deemed necessary) in exchange without
charges, subject to verication of the defect
or malfunction and proof of the date of
purchase. Subsequent replacement products
are warranted for the balance of the original
warranty period.
What is covered? This warranty covers all
defects in the material and workmanship in
this product. The following are not covered:
software, installation/removal costs, damage
resulting from accident, misuse, abuse, neglect,
product modication, improper installation,
incorrect line voltage, unauthorized repair, or
failure to follow instructions supplied with the
product, or damage occurring during return
shipment of the product. Specic license
conditions and copyright notices for the software
can be found via www.jensenmobile.com.
Warranty Coverage
* Limited 2-year warranty. (Proof of purchase
required)
Extend your warranty from 2 years to 3 years
when you register online at
www.jensenmobile. com
What to do?
1. Before you call for service, check the
troubleshooting guide in your owner's manual. A
slight adjustment of any custom controls may save
you a service call.
2. If you require service during the warranty period,
you must carefully pack the product (preferably in
the original package) and ship it by prepaid
transportation with a copy of the original receipt
from the retailer to an authorized service center.
3. Please describe your problem in writing and
include your name, a return UPS shipping address
(P.O. Box not acceptable), and a daytime phone
number with your shipment.
4. For more information and for the location of the
nearest authorized service center please contact us
by one of the following methods:
• Call us toll-free at 1-888-921-4088
(Monday-Friday, 9:00 am, to 5:00 pm, EST)
• E-mail us at cs@jensenmobile.com
Exclusion of Certain Damages: This warranty is
exclusive and in lieu of any and all other warranties,
expressed or implied, including without limitation
the implied warranties of merchantability and
tness for a particular purpose and any obligation,
liability, right, claim or remedy in contract or tort,
whether or not arising from the company's
negligence, actual or imputed. No person or
representative is authorized to assume for the
company any other liability in connection with the
sale of this product. In no event shall the company
be liable for indirect, incidental, or consequential
damages.
