Irrigation Timer - R8816P101C
Irrigation Timer - Sprinkler/Irrigation Time Switch with 14-Day Skipper
Item R8816P101C
PRODUCT DESCRIPTION
These irrigation timers are designed to permit one to 44 "ON" operations every 24 hours and provide watering increments down
to 12 minutes or up to 20 hours and 45 minutes to ensure proper watering increments. These models also allow for biweekly
scheduling with the convenient 14-day skipper for maximum water conservation and odd/even day compliance.
FEATURES
Up to 44 ON/OFF settings per day
Water metering increments from 12 minutes to 20 hours and 45 minutes
14-Day skipper enables irrigation to be omitted on selected day(s)
Allows for alternate-day scheduling
ON/OFF/AUTO switch enables shutdown during rainy days and extended watering during dry periods
without disturbing the cycle set on dial
Type 3R plastic indoor/outdoor enclosure
Rain sensor switch to enable/disable a rain sensor (not included).
APPLICATIONS
Agriculture Feeders
Greenhouse Misting Control
Landscape Water Control
TECHNICAL DATA
General
Model Number R8816P101C
Description Sprinkler/Irrigation Time Switch with 14-Day Skipper
UPC Code 078275027022
Brand Intermatic
Country of Origin (Intermatic) MEXICO
Warranty Period 1-Year limited
Control Specications
Minimum ON/OFF Times 12 min
Maximum ON/OFF Times 20 hours, 45 minutes
Maximum ON/OFF Operations 44
Tripper Actuating Time 12 min
Mechanism Type Analog/Mechanical
Mechanical Specications
Enclosure Type Indoor/outdoor type 3R plastic
Number of Trippers Included 12
Dimensions
Product Dimensions (H x W x D) in 10 x 6.5 x 4 in
Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
Knockout Dimensions Back (1) combination 1/2" - 3/4"
Material Specications
1/
3
Technical specifications and other information are subject to change without notice. Images can vary from original.
© 02/21/2025
Irrigation Timer - R8816P101C
Color Gray
Load Ratings
Clock Motor Voltage 208/277 VAC, 60 Hz
Motor Load Ratings Ranges 3 HP @ 240 VAC, 60 Hz
Electrical Specications
Input Voltage Range(s) 240 VAC, 60 Hz
Switch Type DPST
Load Voltage 240 VAC, 60 Hz
Amps Per Pole 30 A
HP 3
Packaging
Shipping Weight (lbs) 3.543
Unit Carton Dimensions (H x W x L) in 4.25 x 7.31 x 11.75 in
Environmental Specications
Temperature (operation) -40 °F to 130 °F / (-40 °C to 54 °C)
Standards and Certications
CSA Certification cCSAus
Other Certifications and Compatibilities Green Energy
California Proposition 65 None
RoHS Certification X
2/
3
Technical specifications and other information are subject to change without notice. Images can vary from original.
© 02/21/2025
Irrigation Timer - R8816P101C

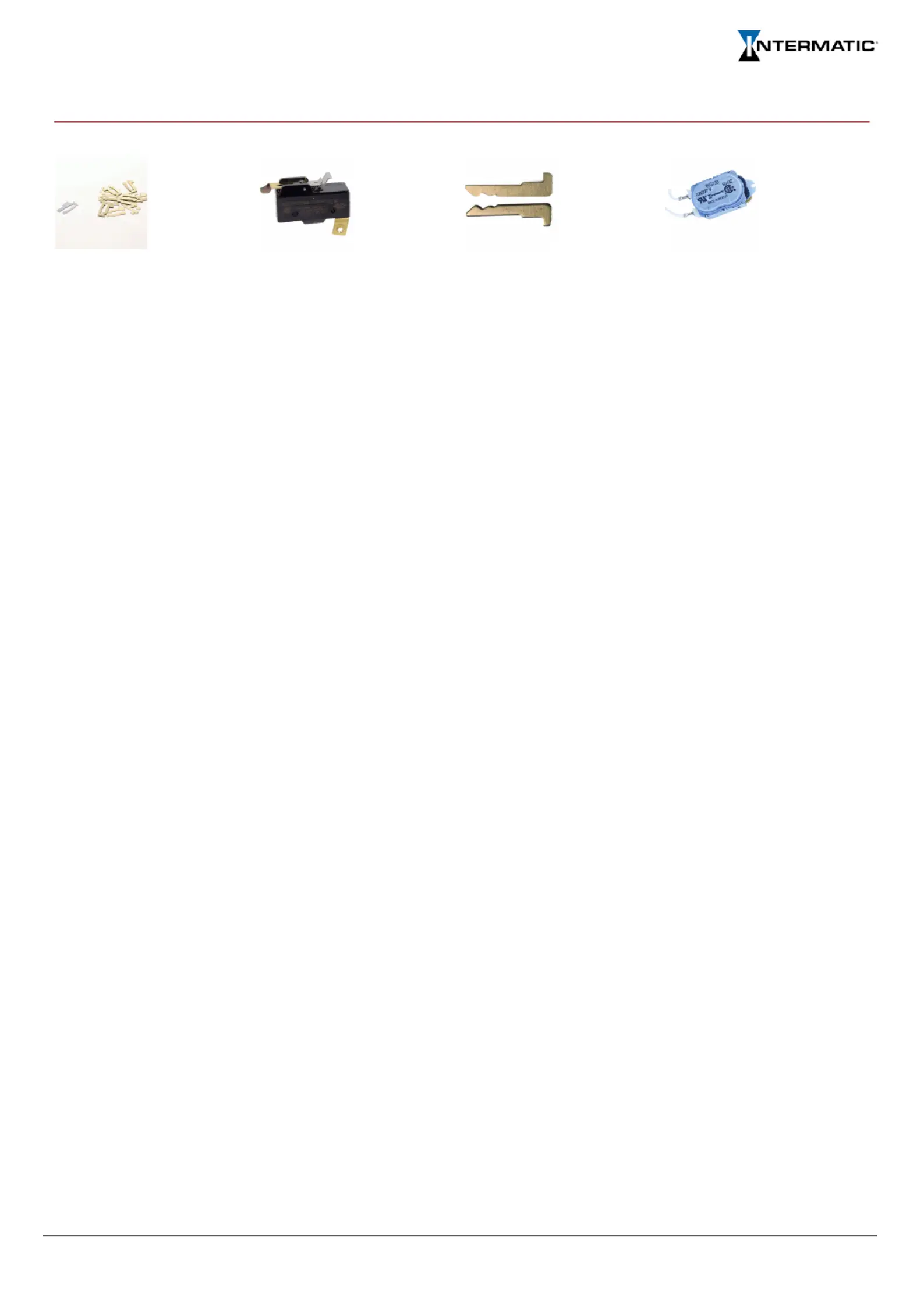

ACCESSORIES
156T1950A
Set of 12 Trippers for T1900, T2000, C8800,
R8800 and T8800 Series
133T700A
Micro Switch for T8800 and R8800 Series
156T1954A
14 Skipper Pins for R8800, and T8800 Series
WG733-14D
208-277 VAC, 60 Hz Motor for R8800, T1900,
T1970, and T8800 Series
3/
3
Technical specifications and other information are subject to change without notice. Images can vary from original.
© 02/21/2025
