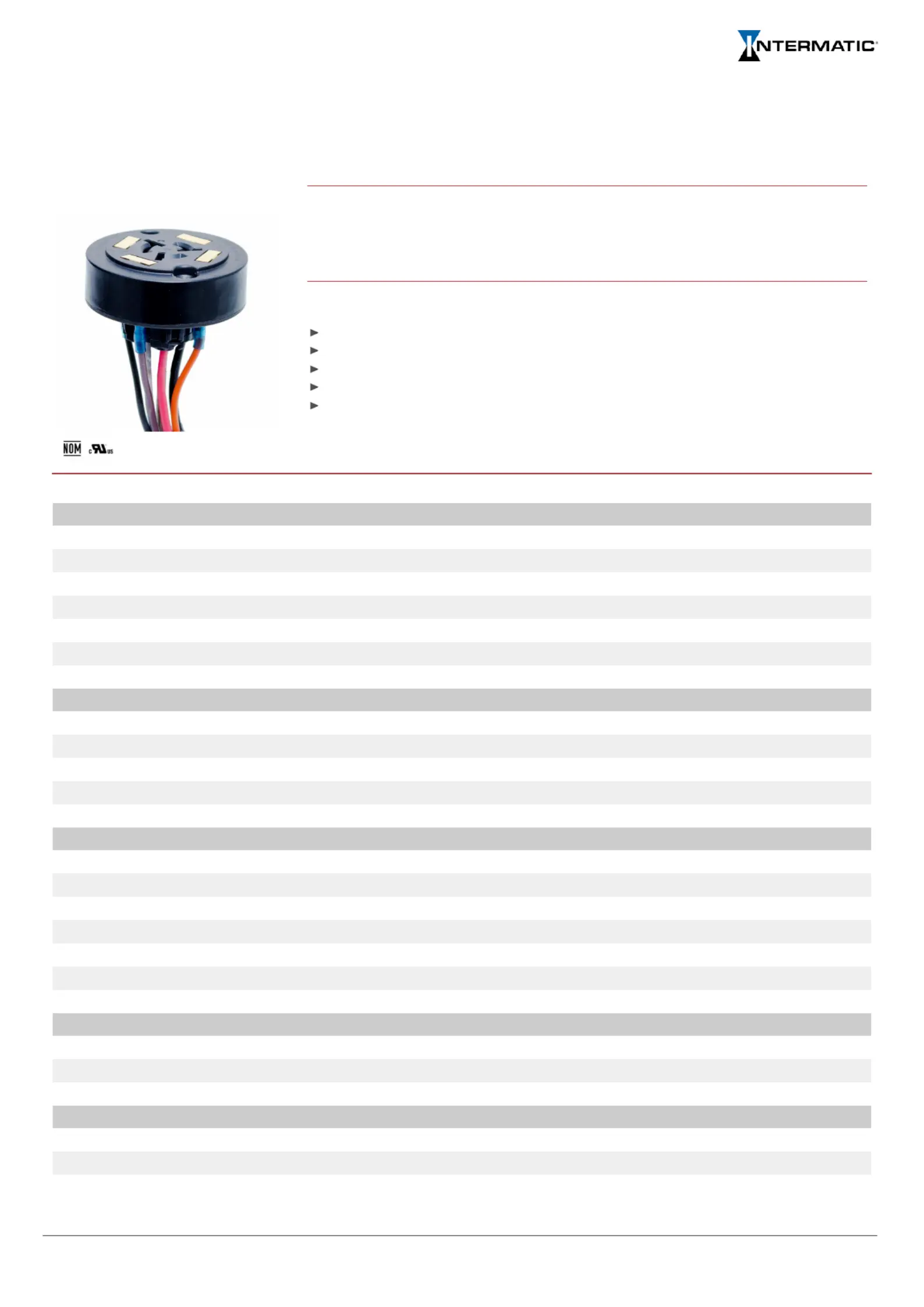

Photocontrol - K171H

Photocontrol - Locking Type Receptacle, 7-Pin, C136.41 Compliant, 12" lead

Item K171H

PRODUCT DESCRIPTION

The K171H provides a receptacle for Locking Type photocontrols with dimming capabilities. The connector interface has a 3-

prong power connection that is backward compatible with standard photocontrol units. Also, it offers four contact pads per ANSI

C136.41 for dimming and additional control or sensor input.

FEATURES

NEMA receptacle with 3-prong power sockets

Two gold plated contact pads for dimming control signals

Two gold plated contact pads for extra control or sensor input signals

Integrated sealing gasket

Compliant to ANSI C136.41 specifications

TECHNICAL DATA

General

Model NumberK171H

DescriptionLocking Type Receptacle, 7-Pin, C136.41 Compliant, 12" lead

UPC Code078275148581

BrandIntermatic

Country of Origin (Intermatic)CHINA

Warranty Period1-Year limited

Dimensions

Product Height (in)1.5

Product Height (mm)38

Product Diameter (in)2.52

Product Diameter (mm)64

Material Specications

ColorBlack

Base MaterialUV Stabilized Polycarbonate (UL94-5 VA)

Power Contacts MaterialBrass/Phosphor Bronze

Gasket(Integrated) Thermal Elastomer

Wire Leads#14 AWG, 105°C, AWM1015, Power; #18 AWG, 105°C, AWM1015, Signal

Signal Contacts MaterialNickel/Gold Plated Bronze

Electrical Specications

Power Contacts Rating480 V max, 15 A max

Signal Contacts Rating30 VDC, 0.25 A max

Packaging

Shipping Weight (lbs)0.33

Unit Carton Dimensions (H x W x D) in2.63 x 3.22 x 3.22 in

1/

2
