FM/1 Series

Time Switches

TECHNICAL DATA

Supply Voltage: Synchronous: 24, 120 and

240VAC, 60Hz

Quartz: 24V AC/DC, 120 and

240VAC 50/60 Hz

Switch Type: SPDT

Switch Rating: 21A @ 250VAC resistive

1350 watt tungsten

1HP @ 125VAC

2HP @ 240VAC

Ambient

Temp. Range: –40°F to 180°F, synchronous units

–20°F to 140°F, quartz units

Terminals: 1/4” spade terminals

Reserve Carryover:

72 hours for quartz units

Weight: Approximately 3 oz.

Agency Approvals: UL Recognized

NOTE:24V quartz unit will operate on 6VDC, 12VDC,

or 24VDC

APPLICATIONS

The FM/1 series of time switches are designed for control

of heating, ventilating, air conditioning, refrigeration, lighting,

security, circulating pumps, spas or any electrical load requiring

24-hour or 7-day scheduling.

WIRING

Verify input voltage stated on back of unit. Use 1/4” quick

connects and make connections in accordance with the wiring

diagram shown and applicable code requirements. When using

24V units, it is important to use transformers that will supply the

required 24 volts AC to terminals 1 & 2.

MOUNTING

The standard FM/1 units can be flush mounted (mounting kit

with screws available) or surface mounted inside a panel. A

printed circuit board mounting base is also available. An indoor

or outdoor enclosure is available for stand-alone mounting. In

addition, unit is also available in DIN housing for flush or surface

mounting (see MIL72, Digi 20 or Digi 42 data sheets). Optional

clear plastic dust cover is available.

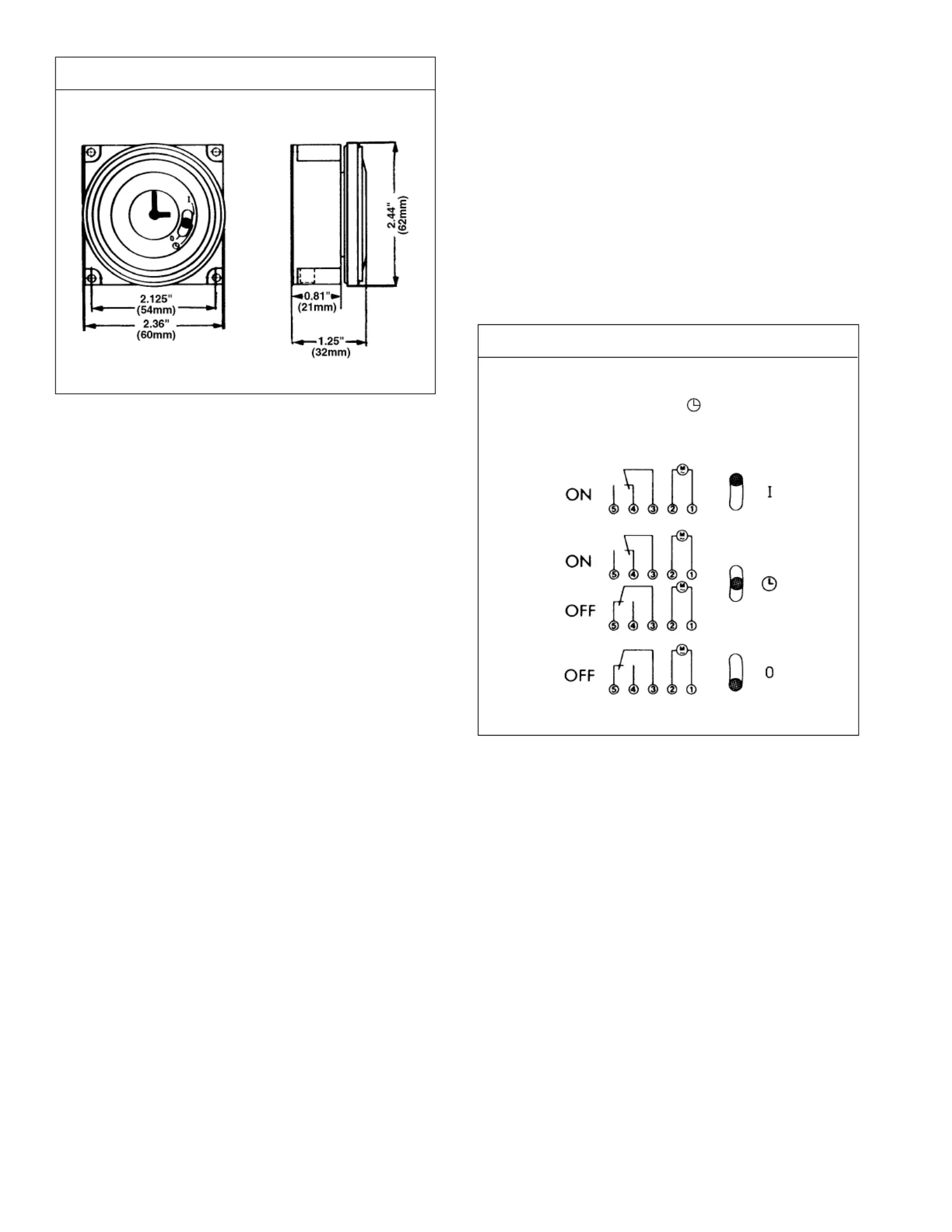

Terminal Connections

Contacts shown in “Off” position (trippers pushed inward)

“On” position (trippers pushed outward) will close contacts 3 & 4

453

1

M

INPUT

COM

NO

NC

2
